Drive Mode Selector: Wiring Diagram

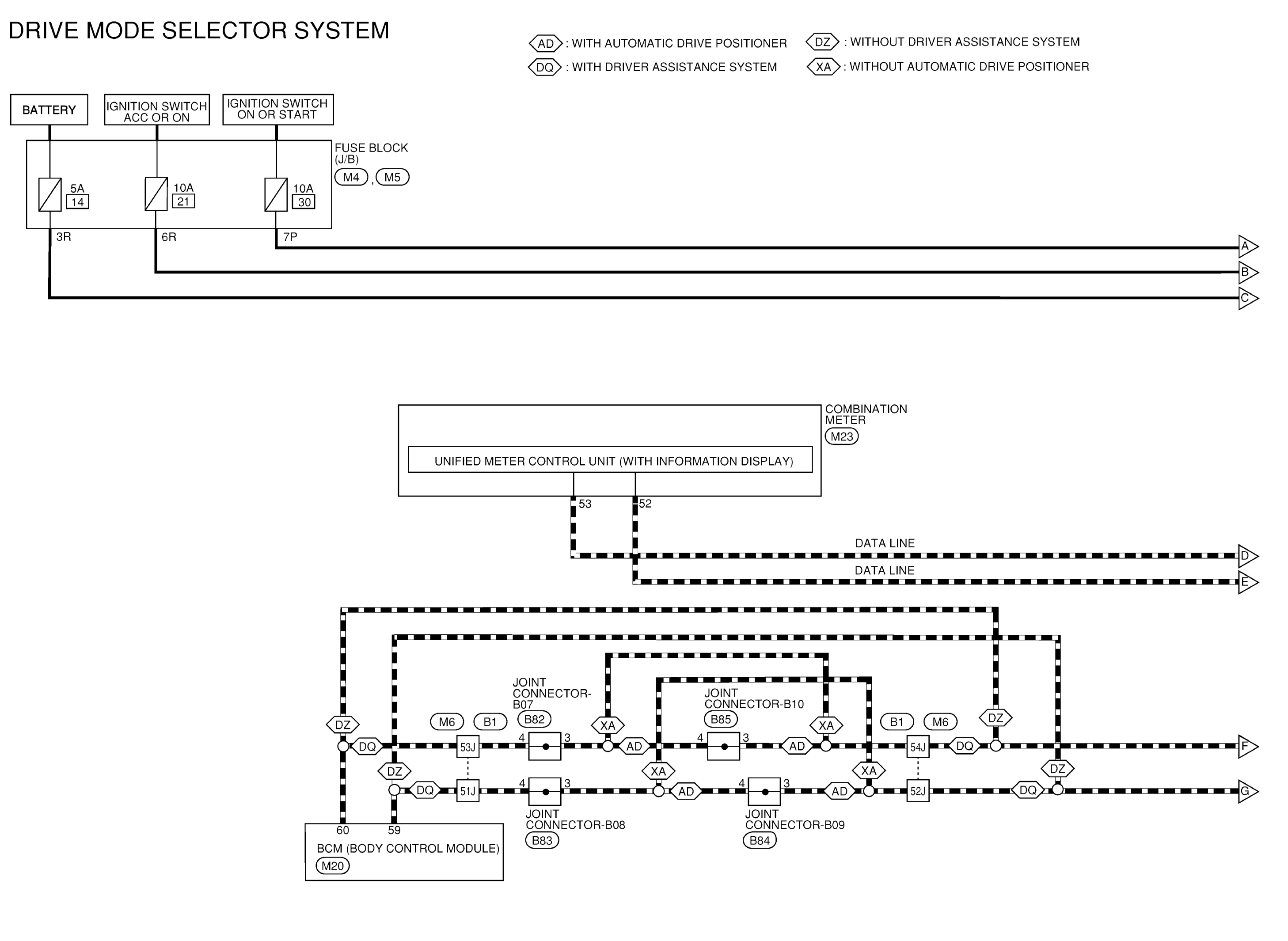

GNSAAOWA0204GB-204Courtesy of NISSAN NORTH AMERICA, INC.

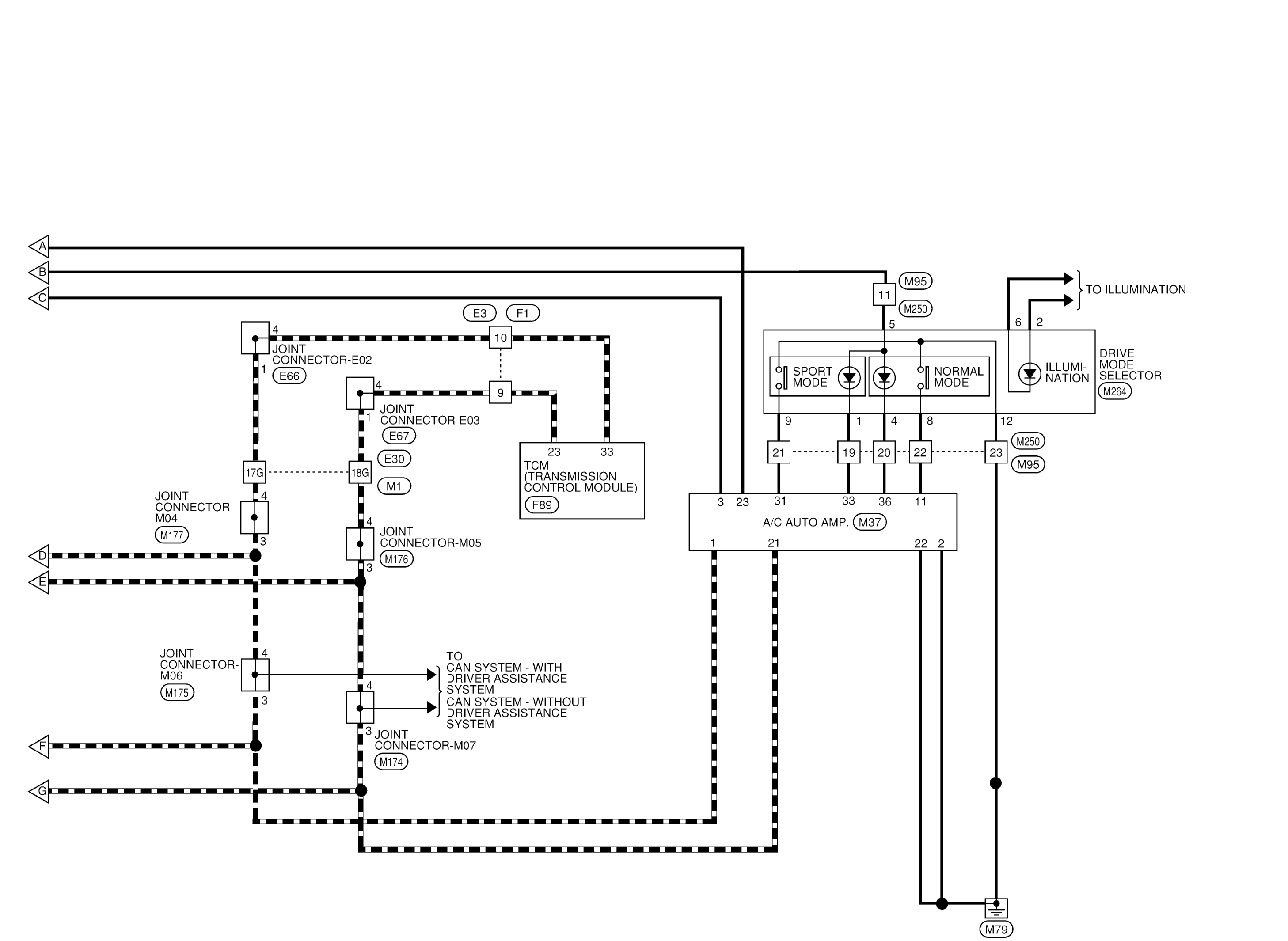

GNSAAOWA0205GB-205Courtesy of NISSAN NORTH AMERICA, INC.

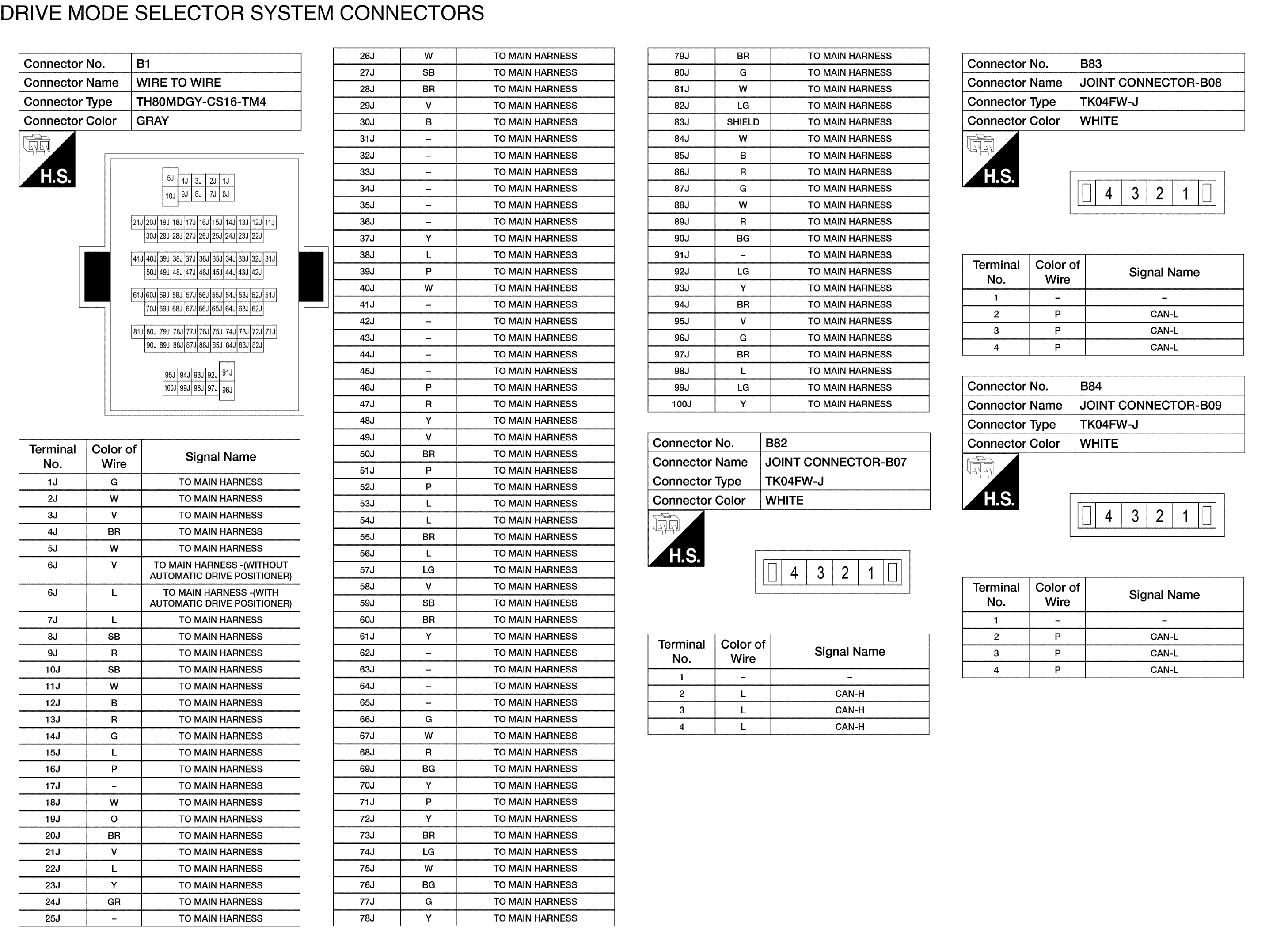

GNSAAOIA0679GB-679Courtesy of NISSAN NORTH AMERICA, INC.

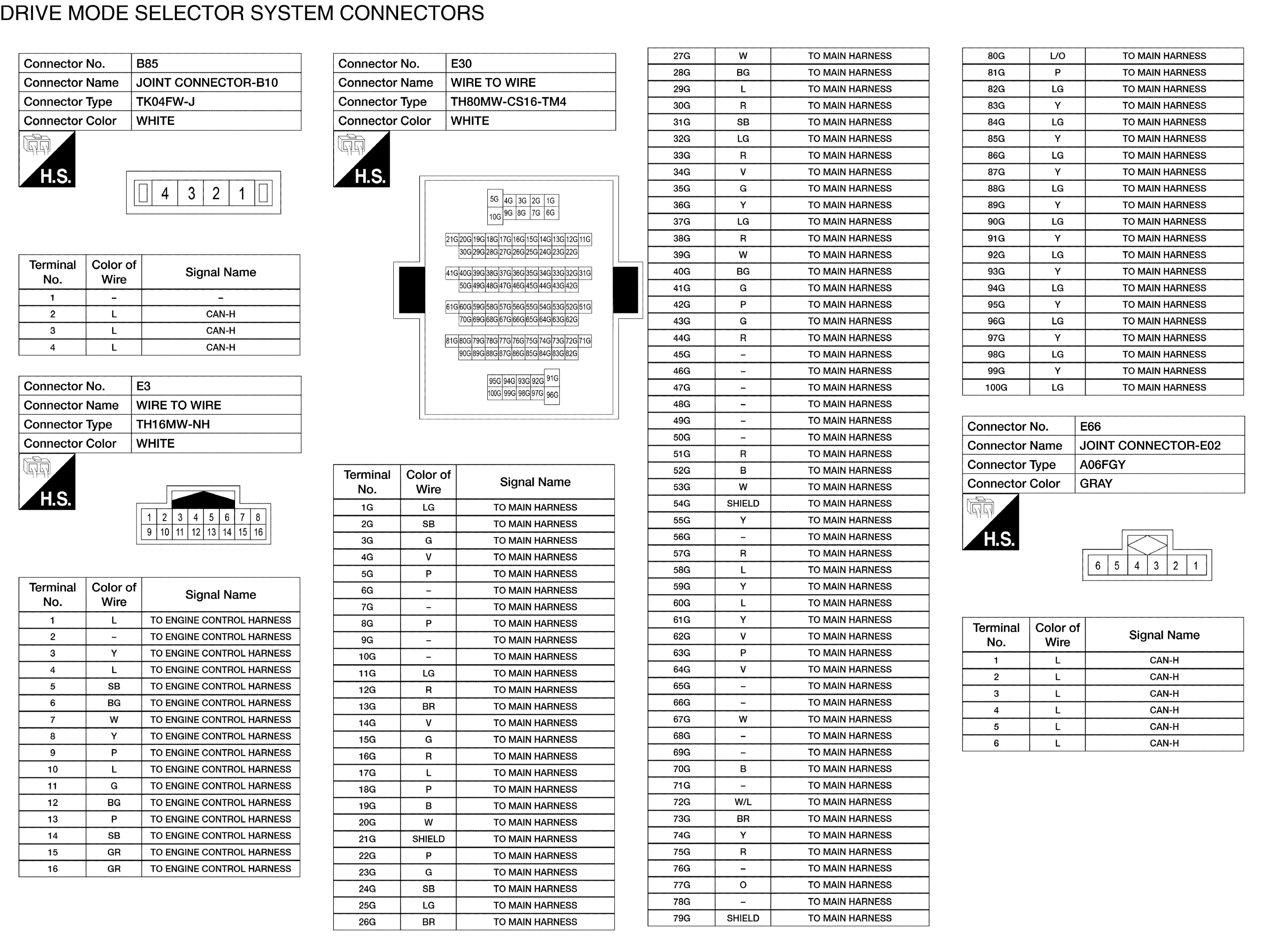

GNSAAOIA0680GB-680Courtesy of NISSAN NORTH AMERICA, INC.

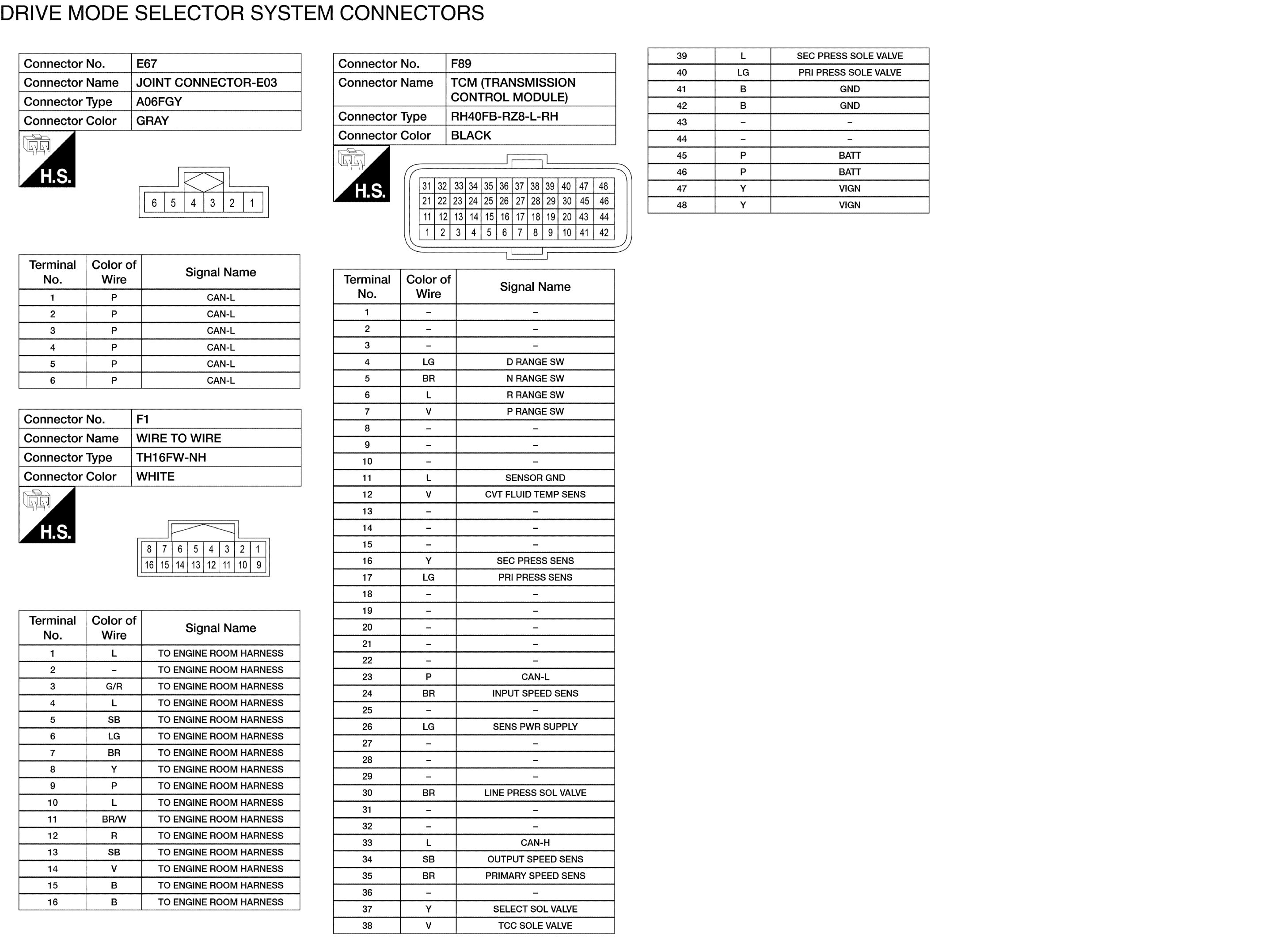

GNSAAOIA0681GB-681Courtesy of NISSAN NORTH AMERICA, INC.

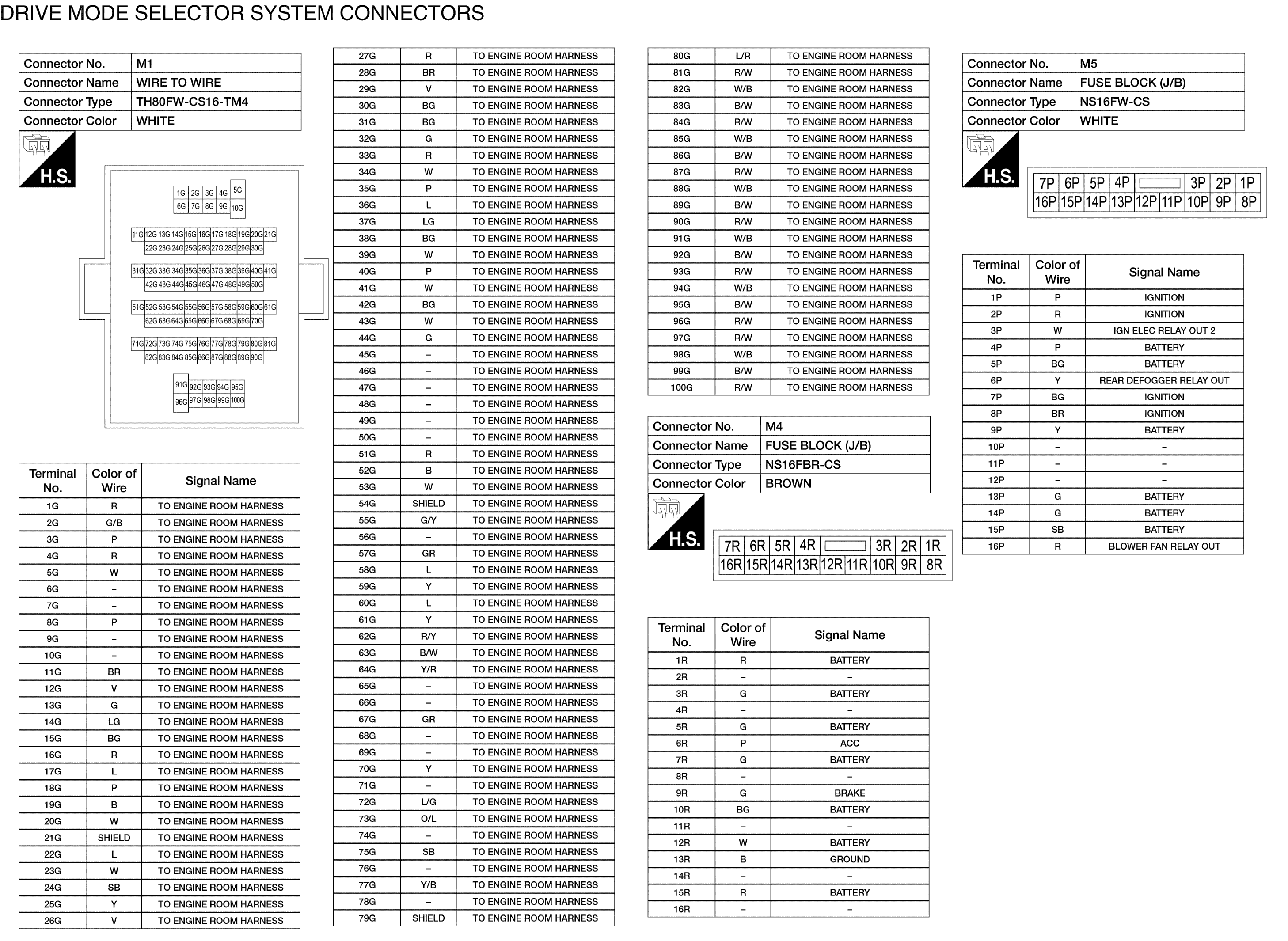

GNSAAOIA0682GB-682Courtesy of NISSAN NORTH AMERICA, INC.

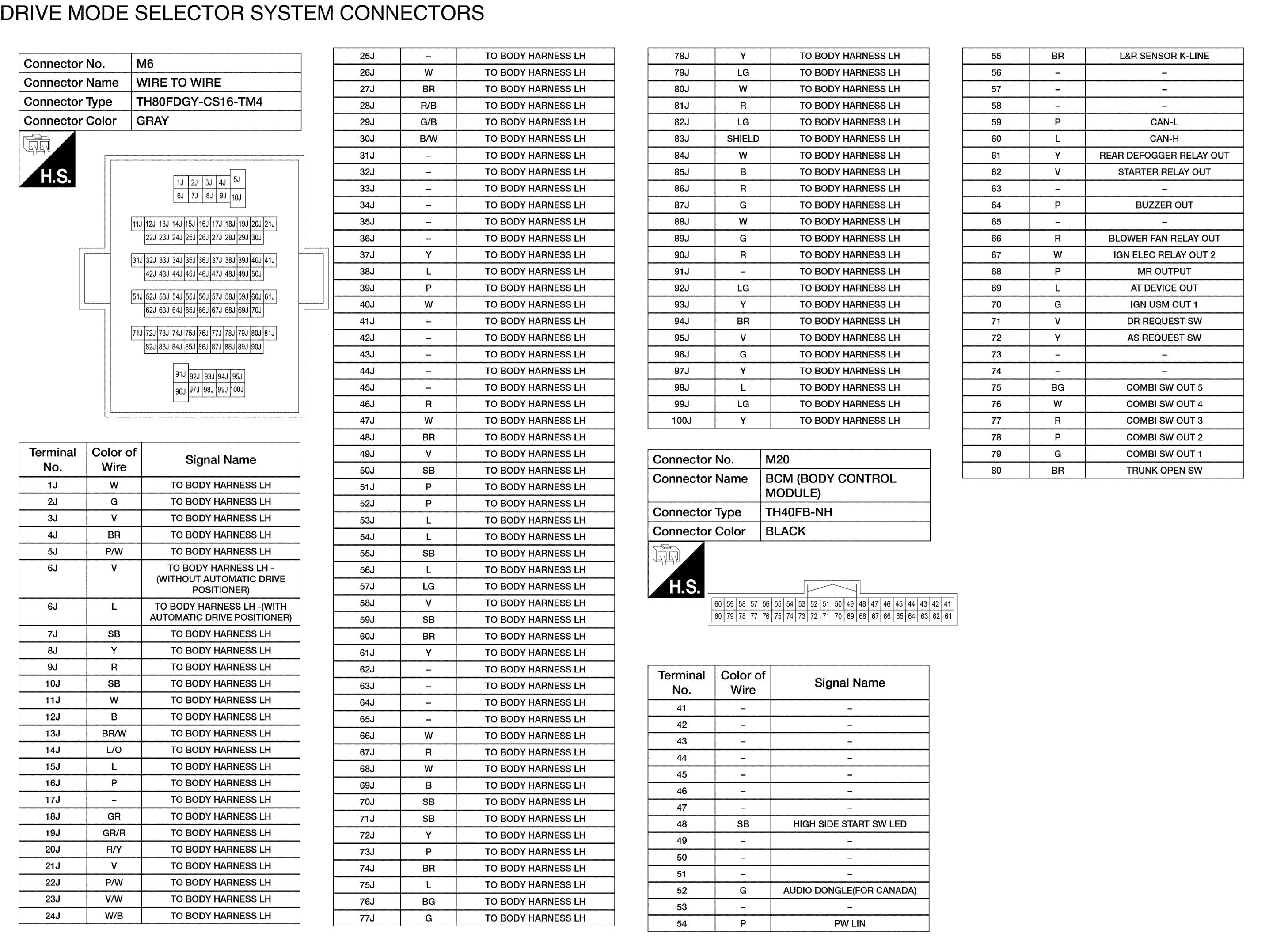

GNSAAOIA0683GB-683Courtesy of NISSAN NORTH AMERICA, INC.

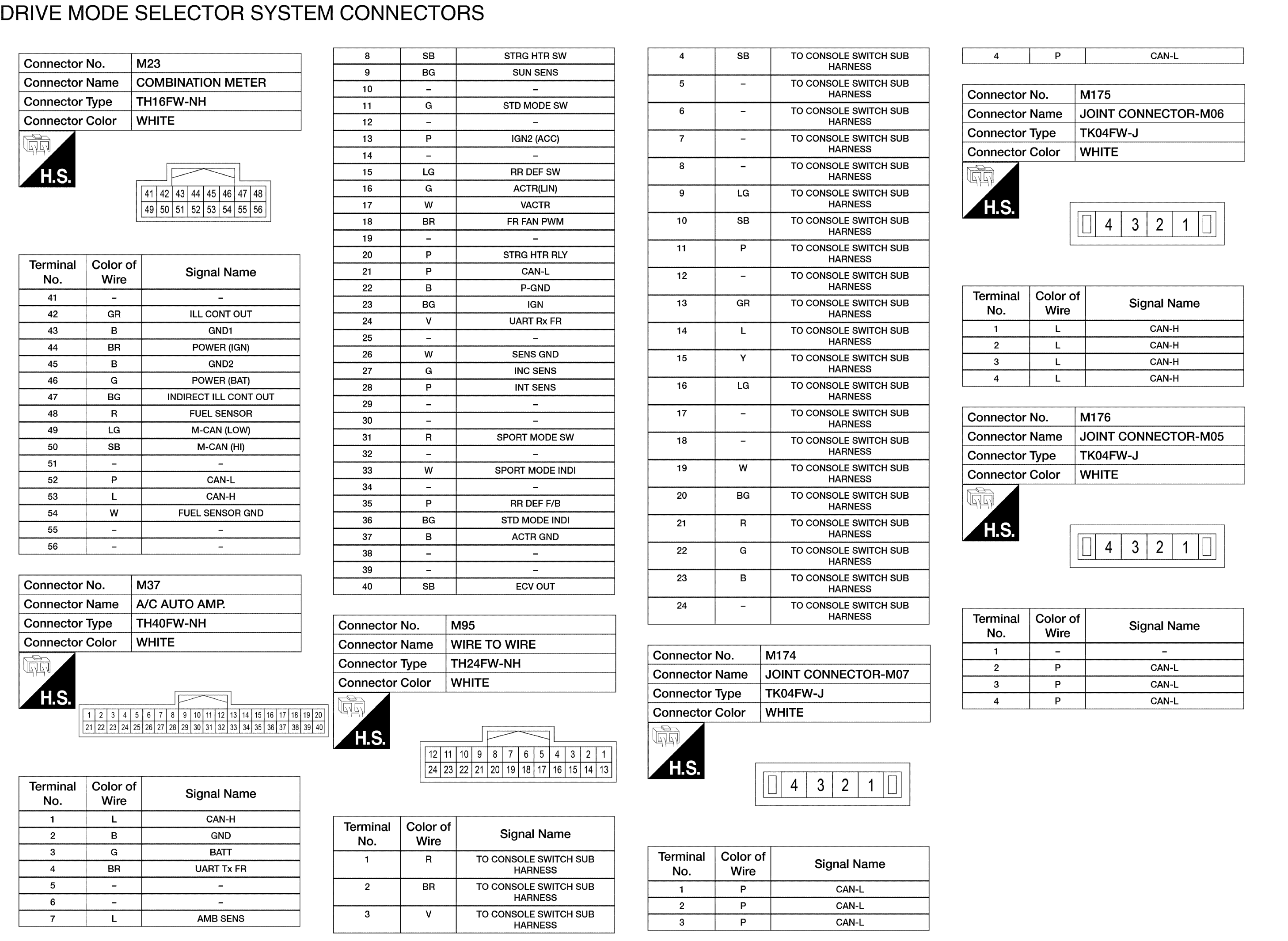

GNSAAOIA0684GB-684Courtesy of NISSAN NORTH AMERICA, INC.

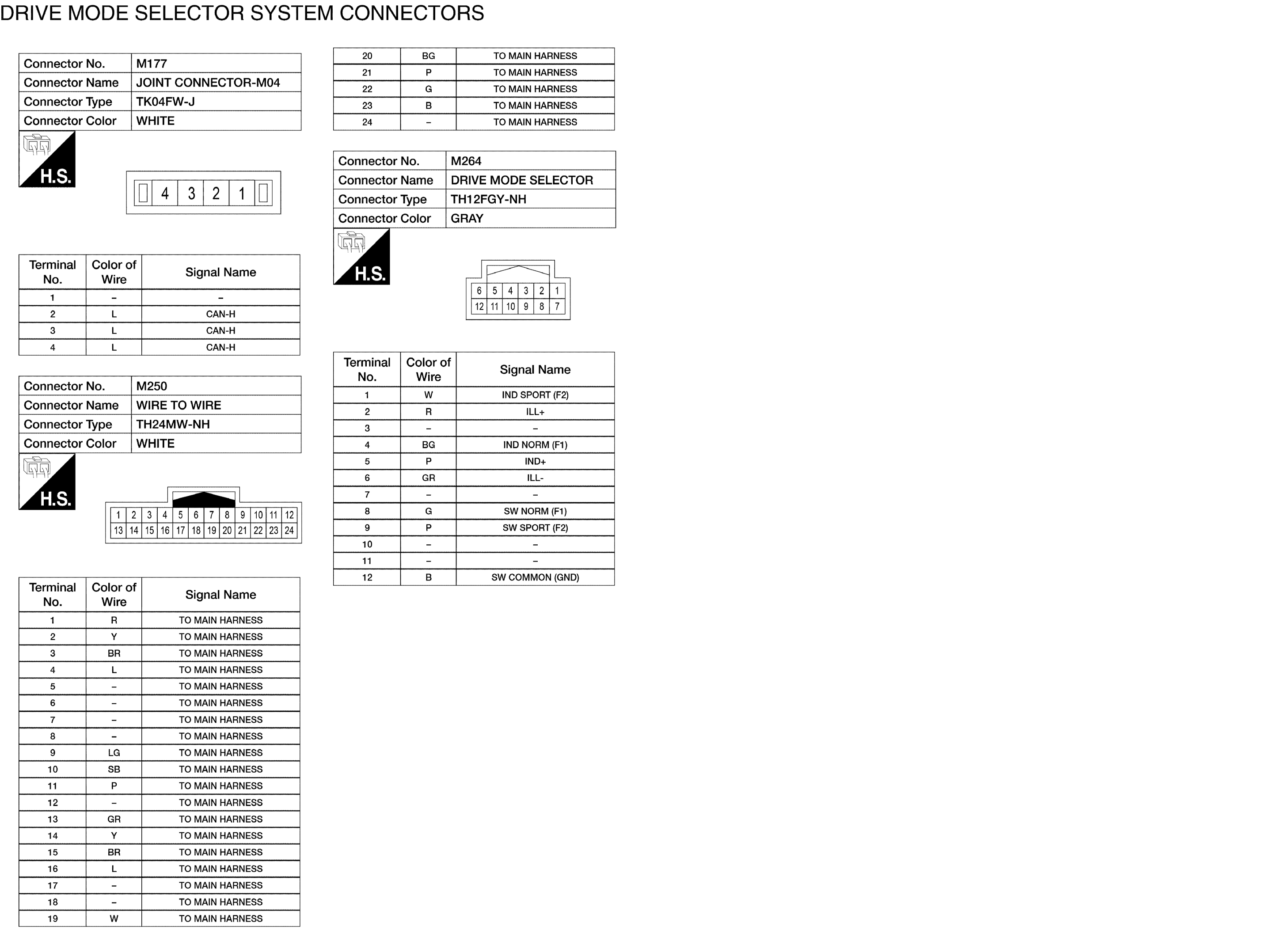

GNSAAOIA0685GB-685Courtesy of NISSAN NORTH AMERICA, INC.
