Intelligent Key System/Engine Start Function: Wiring Diagram

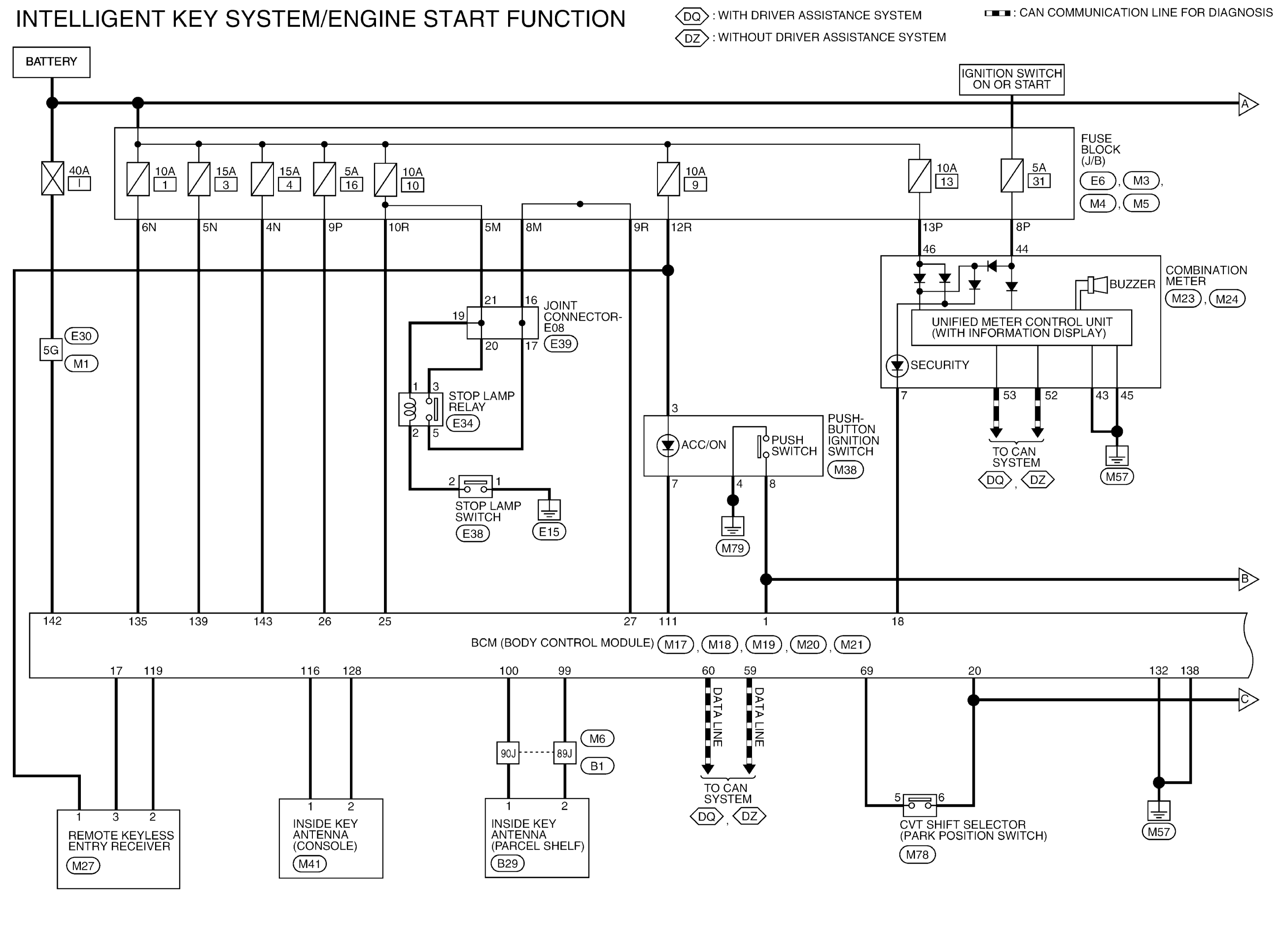

GNSABKWA3349GB-349

Courtesy of NISSAN NORTH AMERICA, INC.

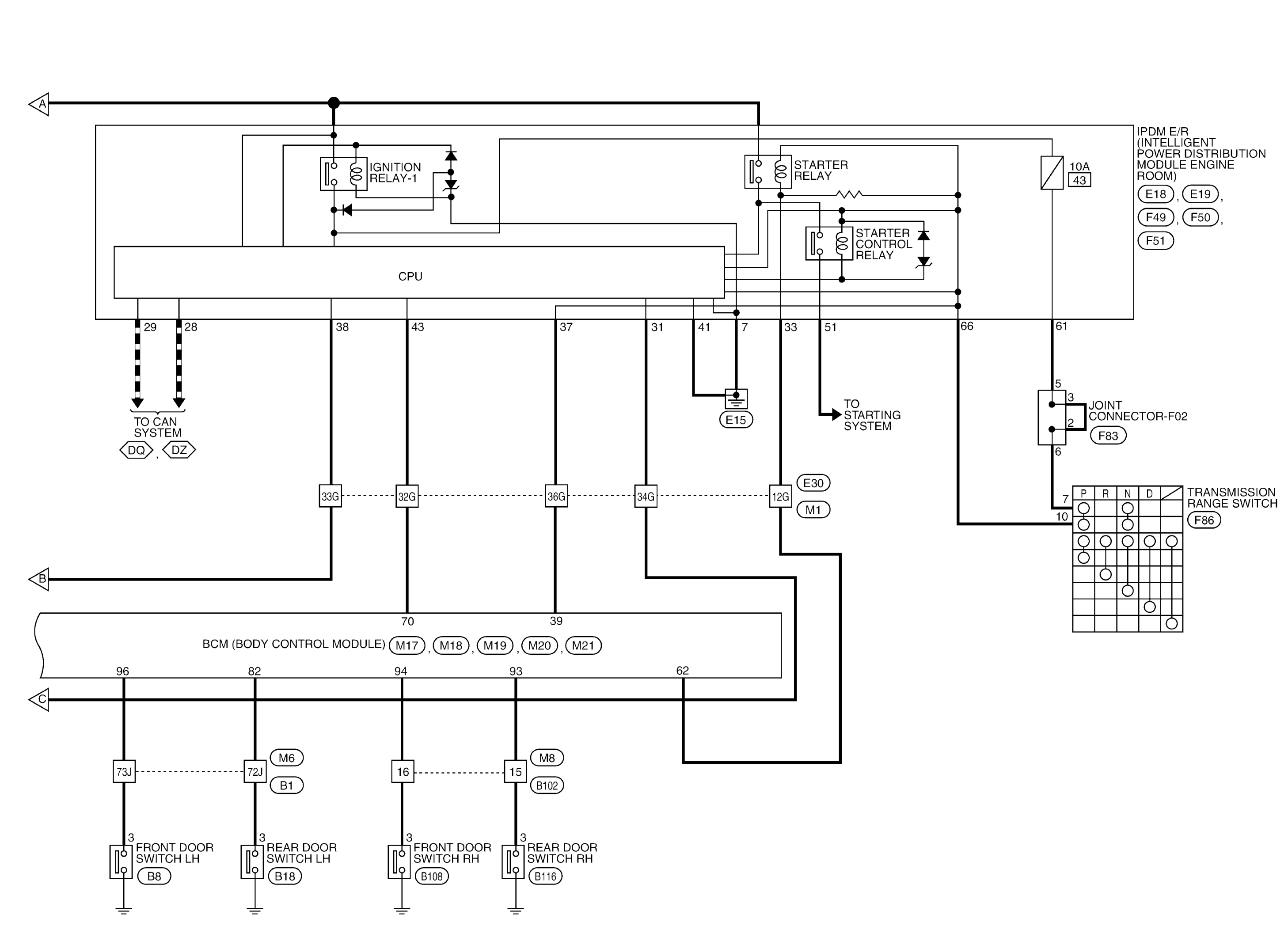

GNSABKWA3336GB-336

Courtesy of NISSAN NORTH AMERICA, INC.

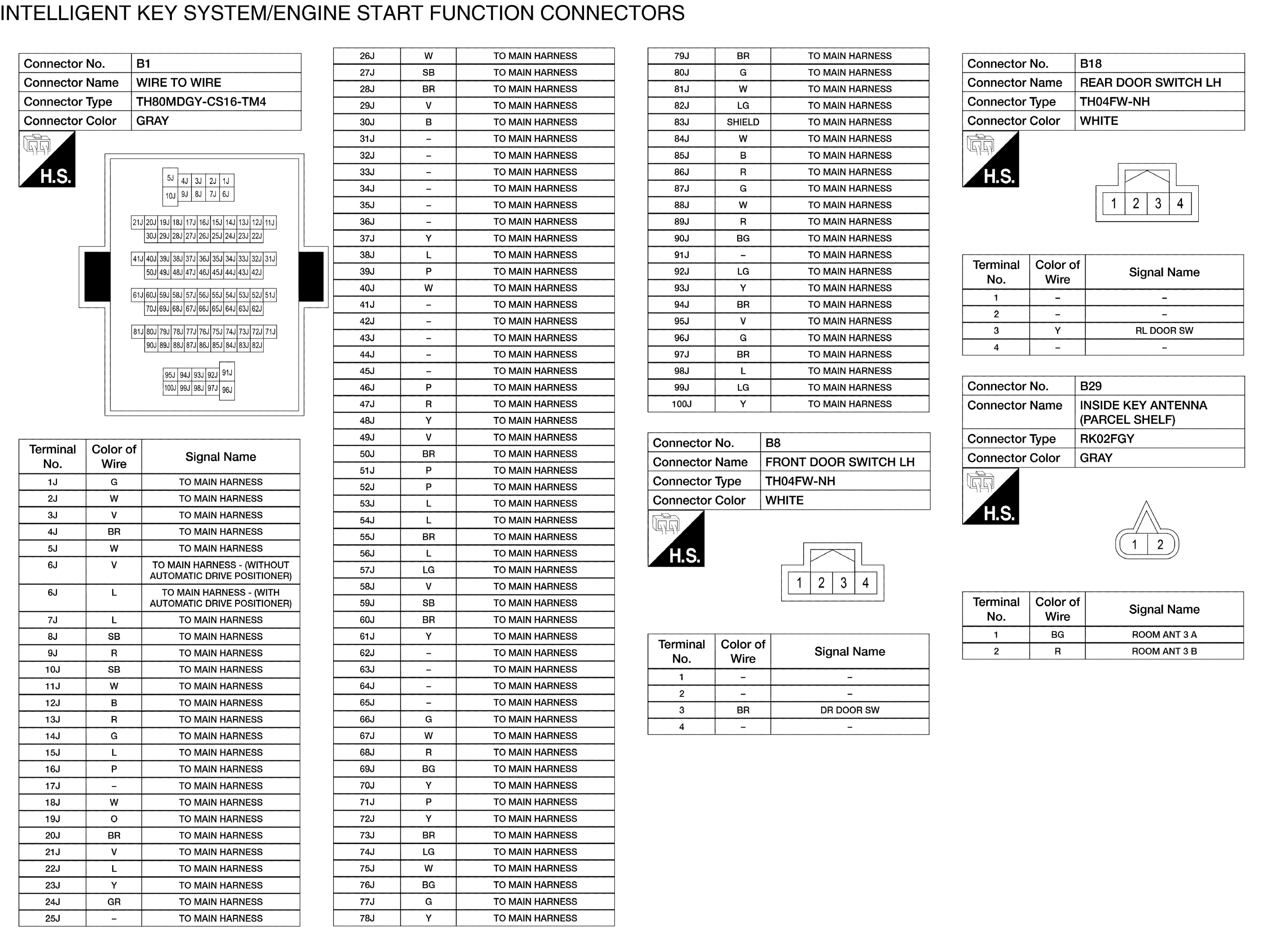

GNSABKIA7980GB-980

Courtesy of NISSAN NORTH AMERICA, INC.

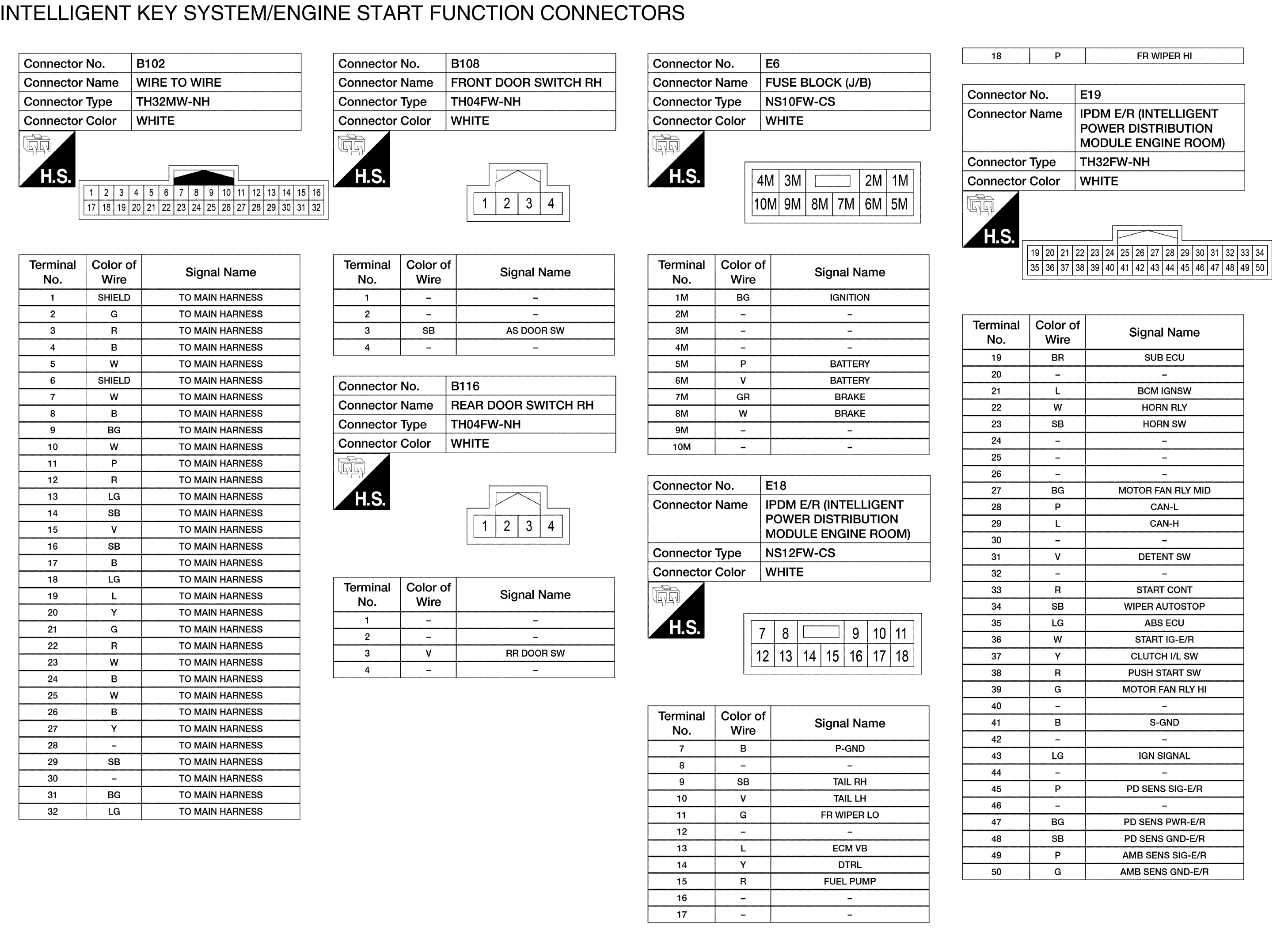

GNSABKIA7981GB-981

Courtesy of NISSAN NORTH AMERICA, INC.

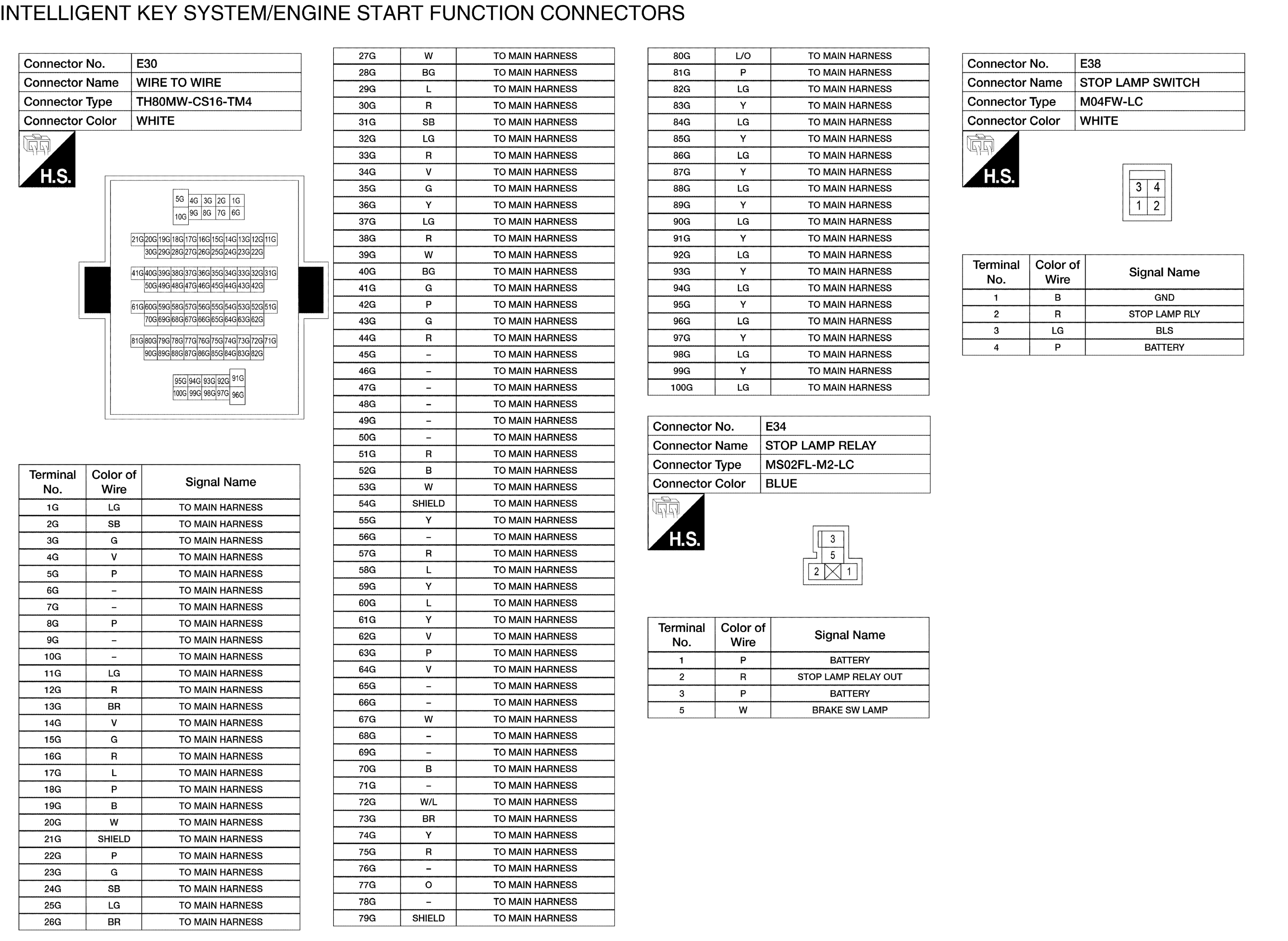

GNSABKIA7982GB-982

Courtesy of NISSAN NORTH AMERICA, INC.

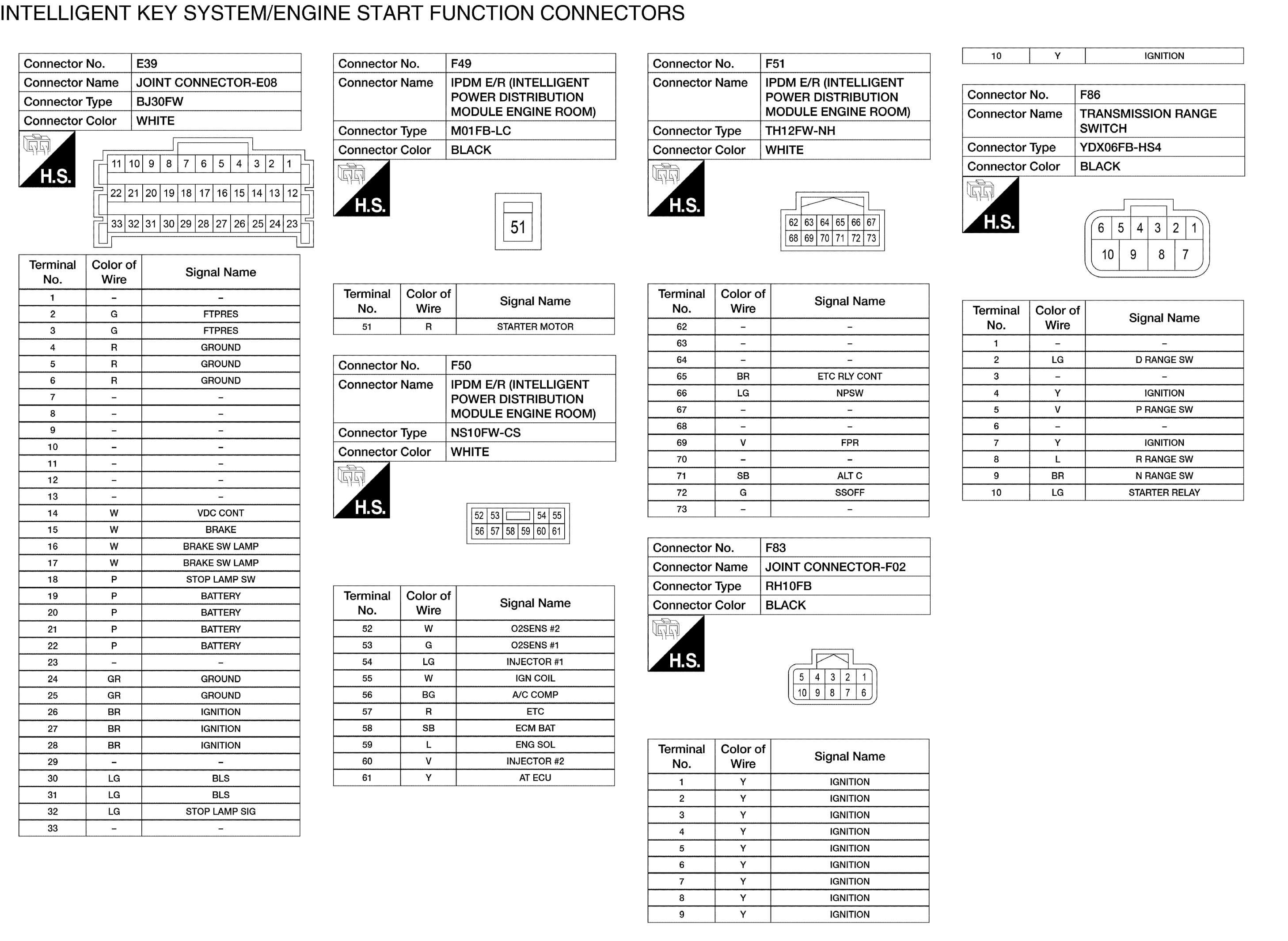

GNSABKIA7983GB-983

Courtesy of NISSAN NORTH AMERICA, INC.

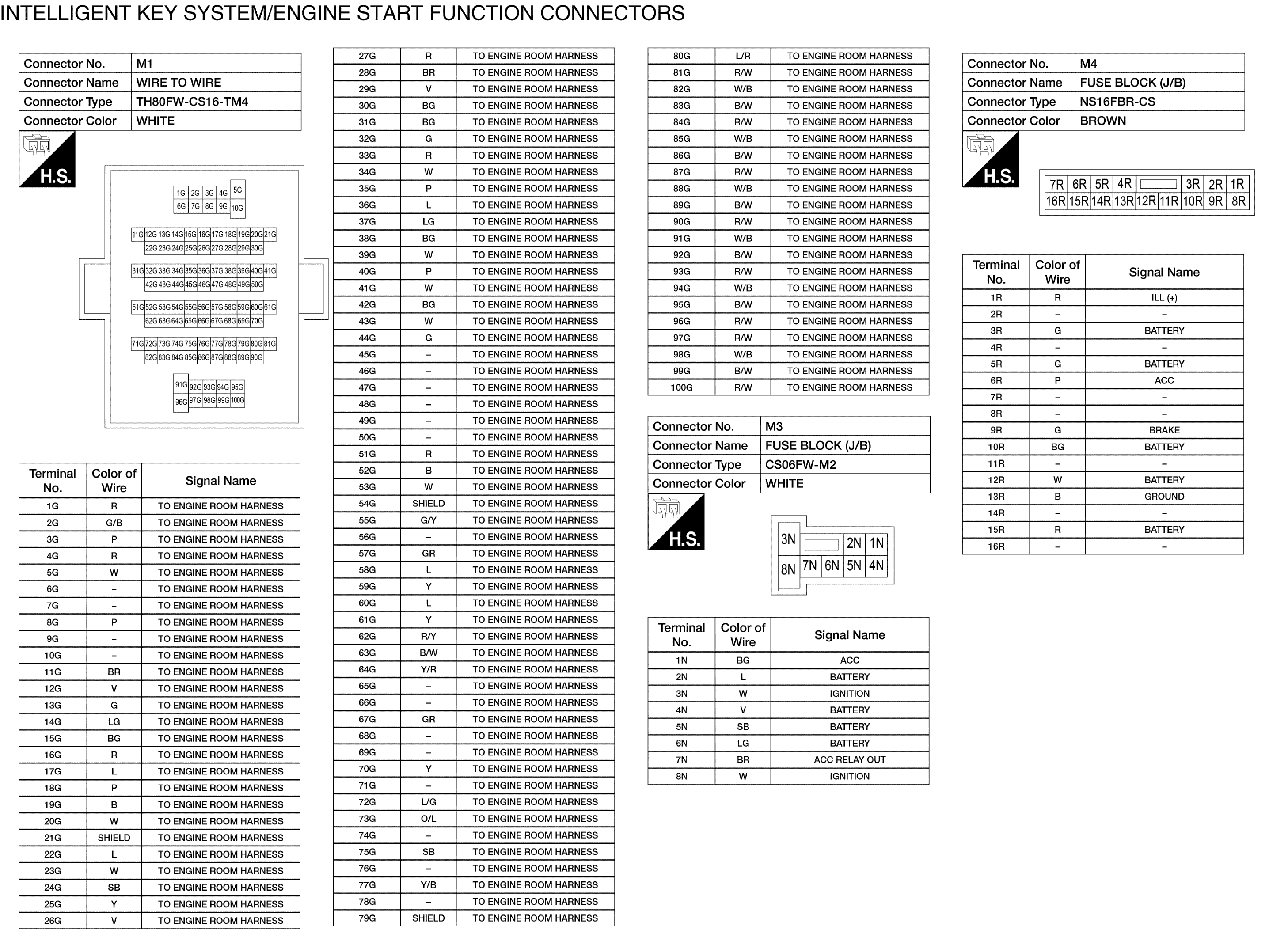

GNSABKIA7984GB-984

Courtesy of NISSAN NORTH AMERICA, INC.

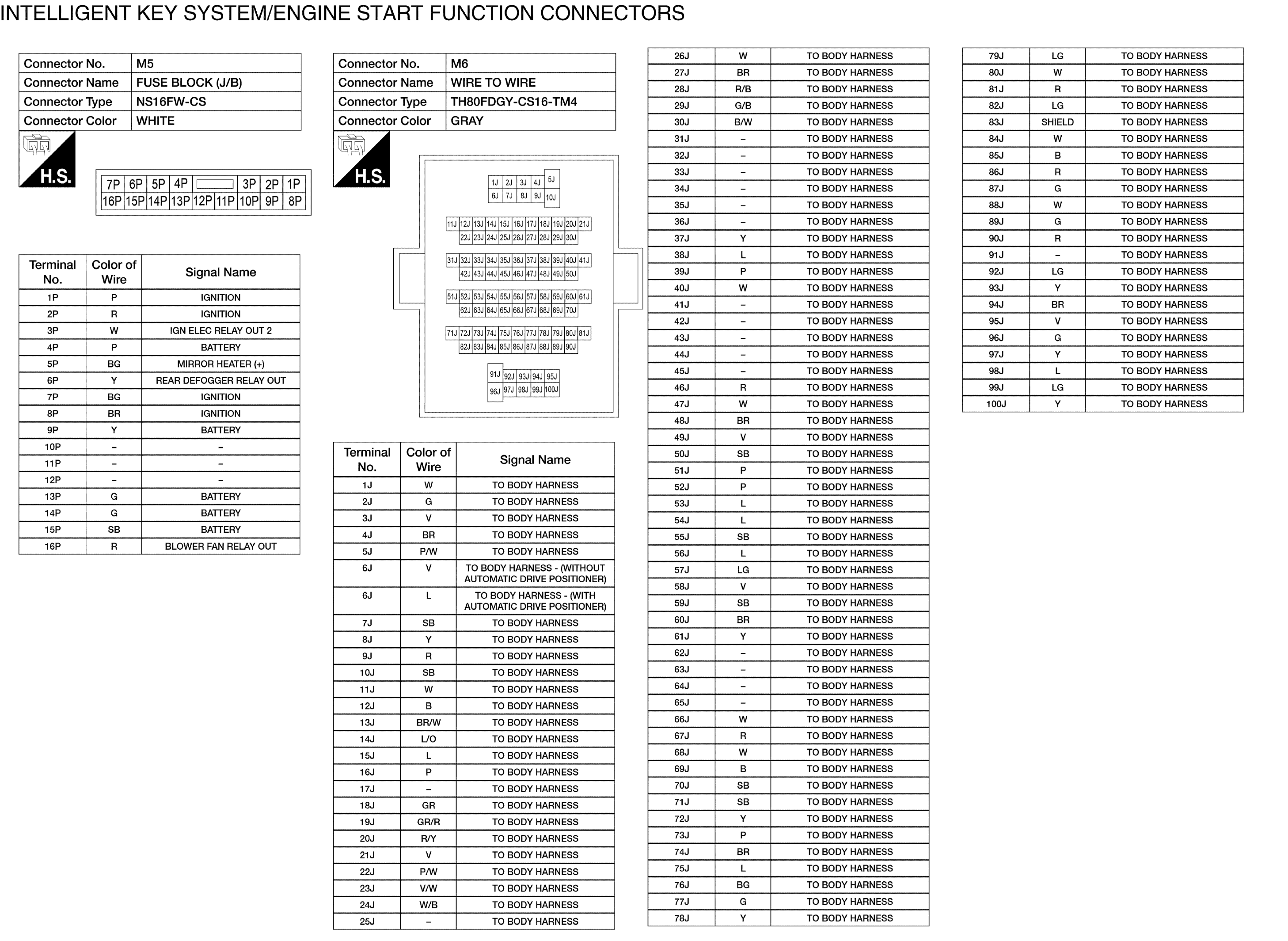

GNSABKIA7985GB-985

Courtesy of NISSAN NORTH AMERICA, INC.

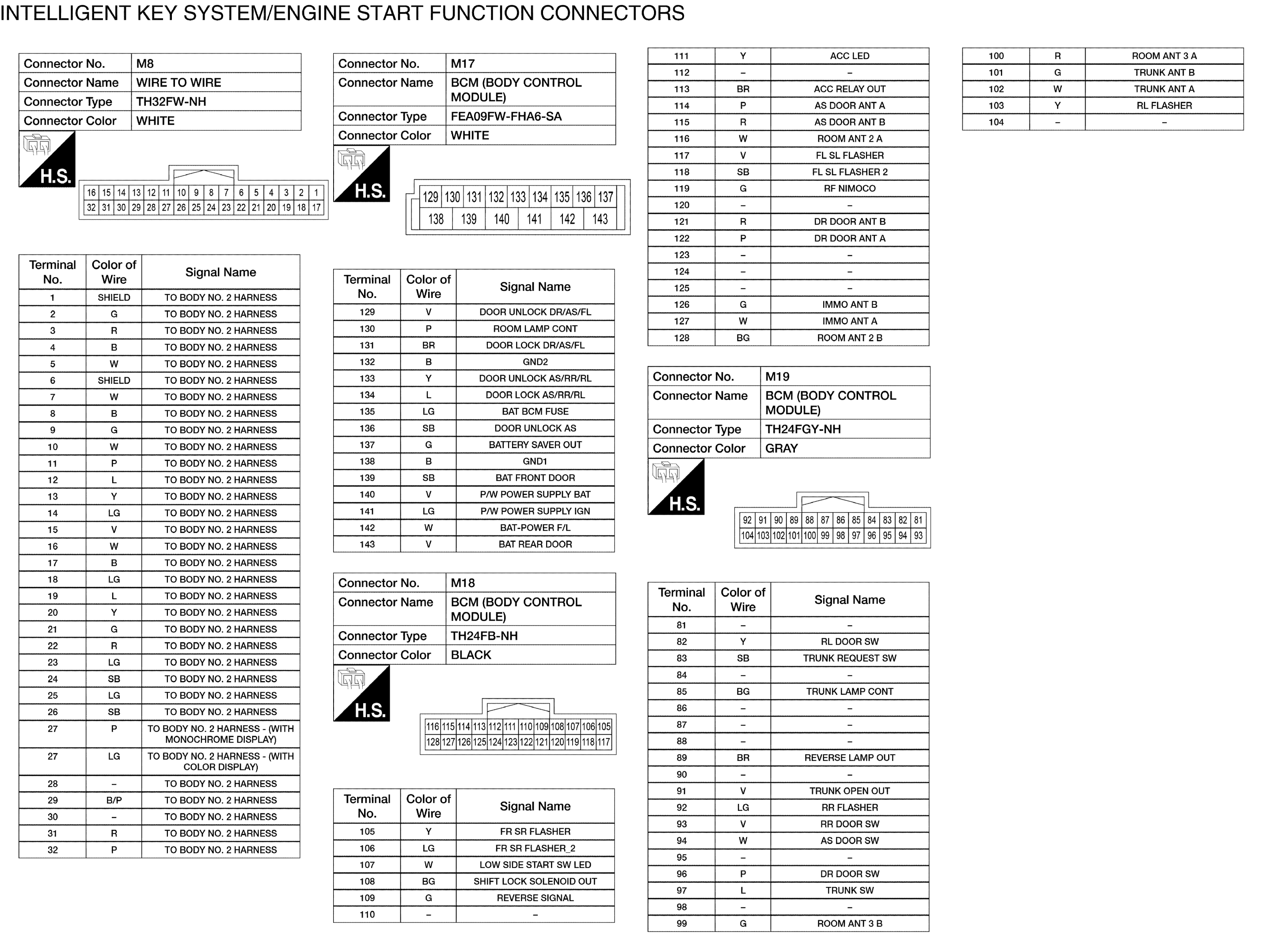

GNSABKIA7986GB-986

Courtesy of NISSAN NORTH AMERICA, INC.

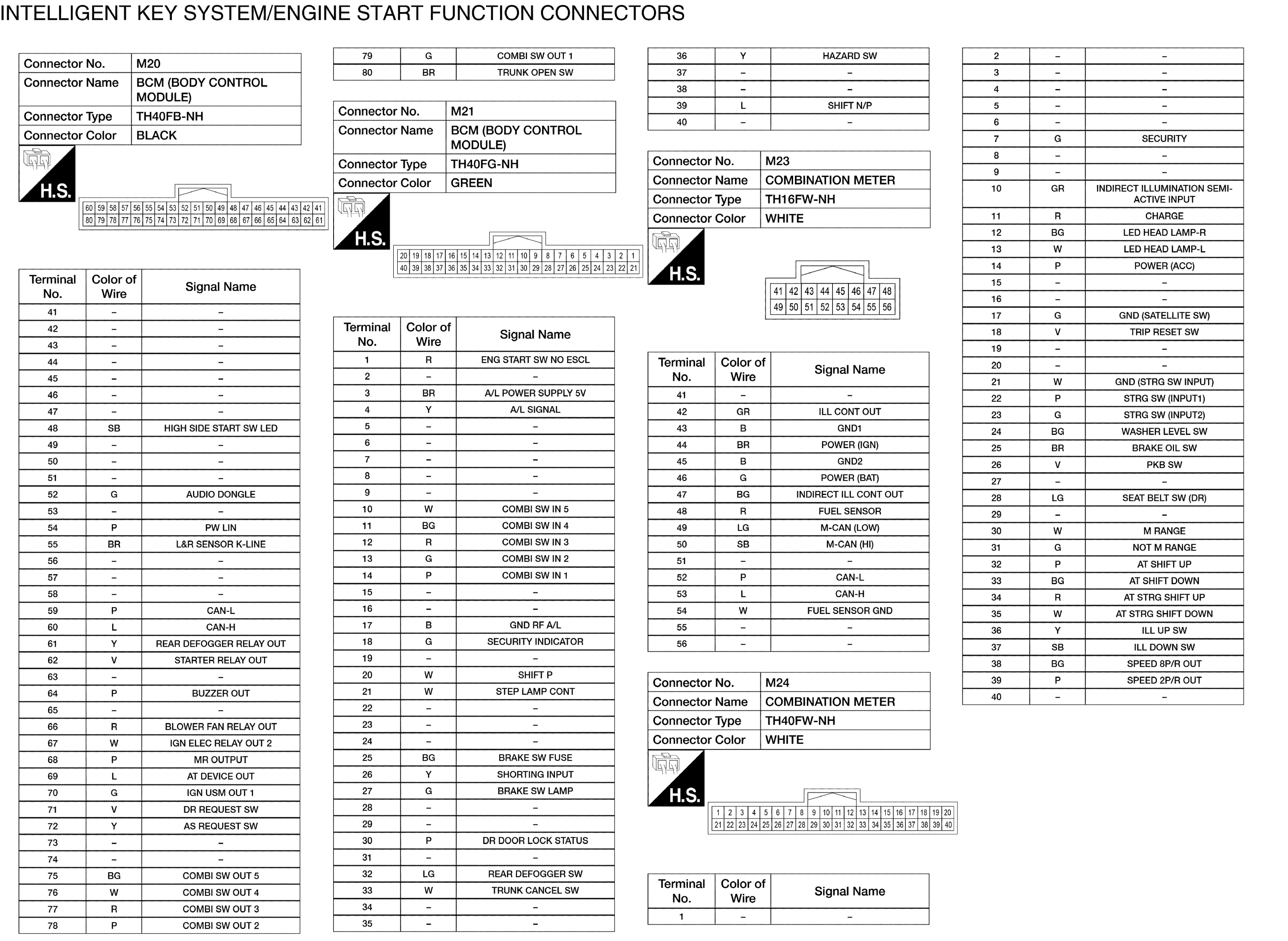

GNSABKIA7987GB-987

Courtesy of NISSAN NORTH AMERICA, INC.

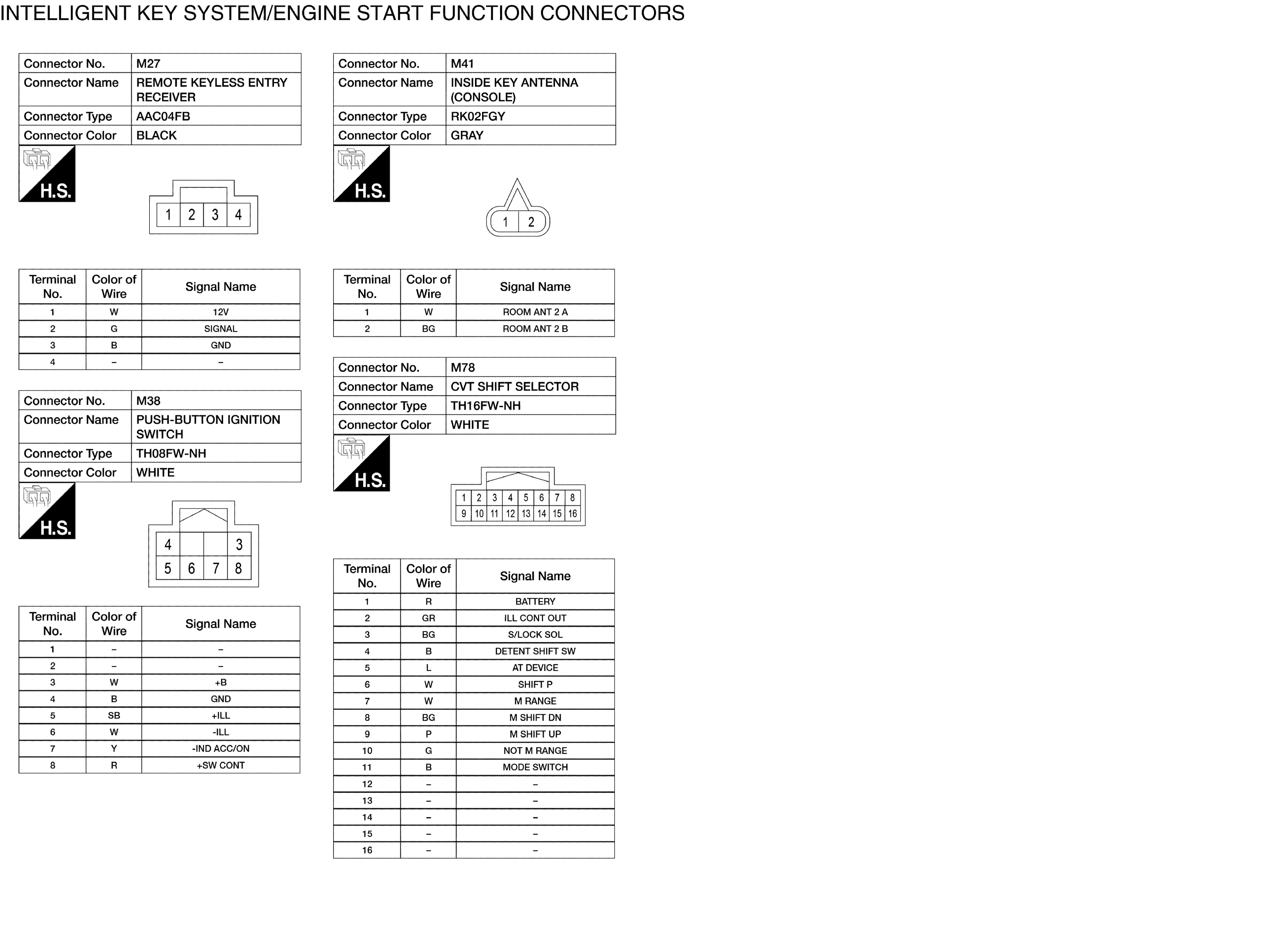

GNSABKIA7988GB-988

Courtesy of NISSAN NORTH AMERICA, INC.
