Home >> Nissan-Datsun >> 2017 >> Maxima SR >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System (Introduction) >> System Description >> System >> Air Conditioning Cut Control >> System Description >> System Diagram

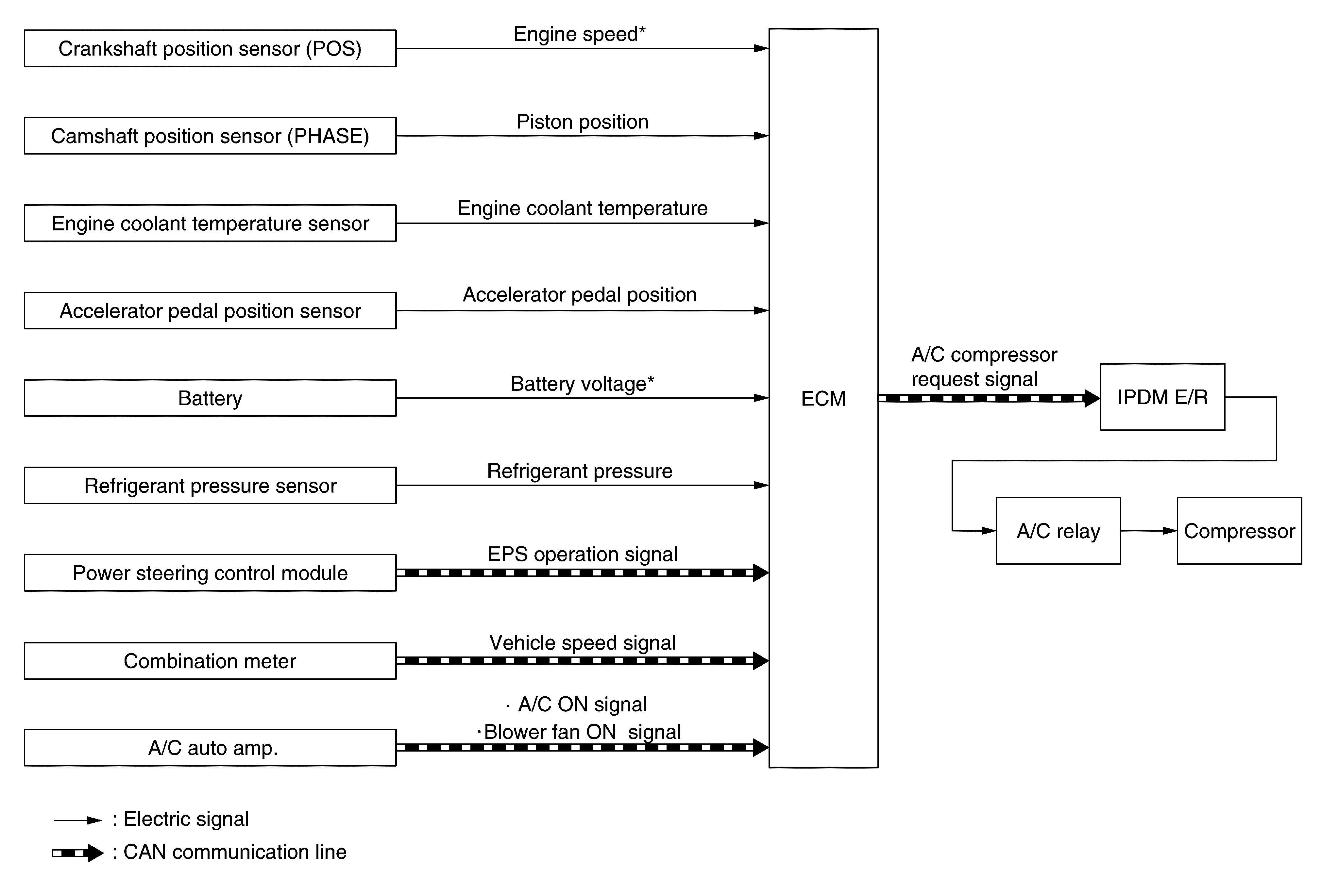

System Diagram

G08944555

Courtesy of NISSAN NORTH AMERICA, INC.

*: ECM determines the start signal status by the signals of engine speed and battery voltage.
