Exploded View

Electric steering column

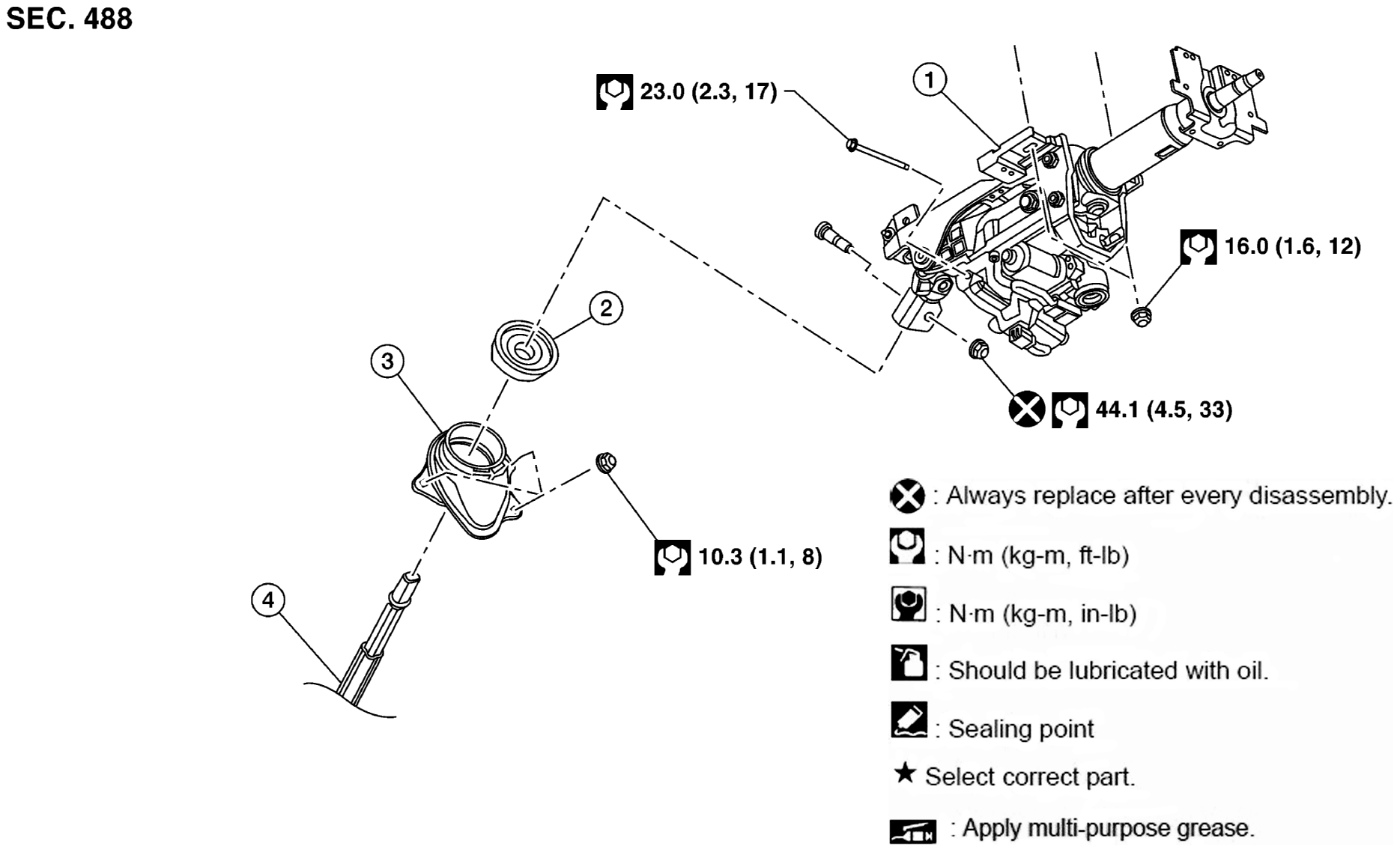

Fig 1: Electric Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column	2.	Hole cover seal	3.	Hole cover
4.	Lower joint

Mechanical steering column

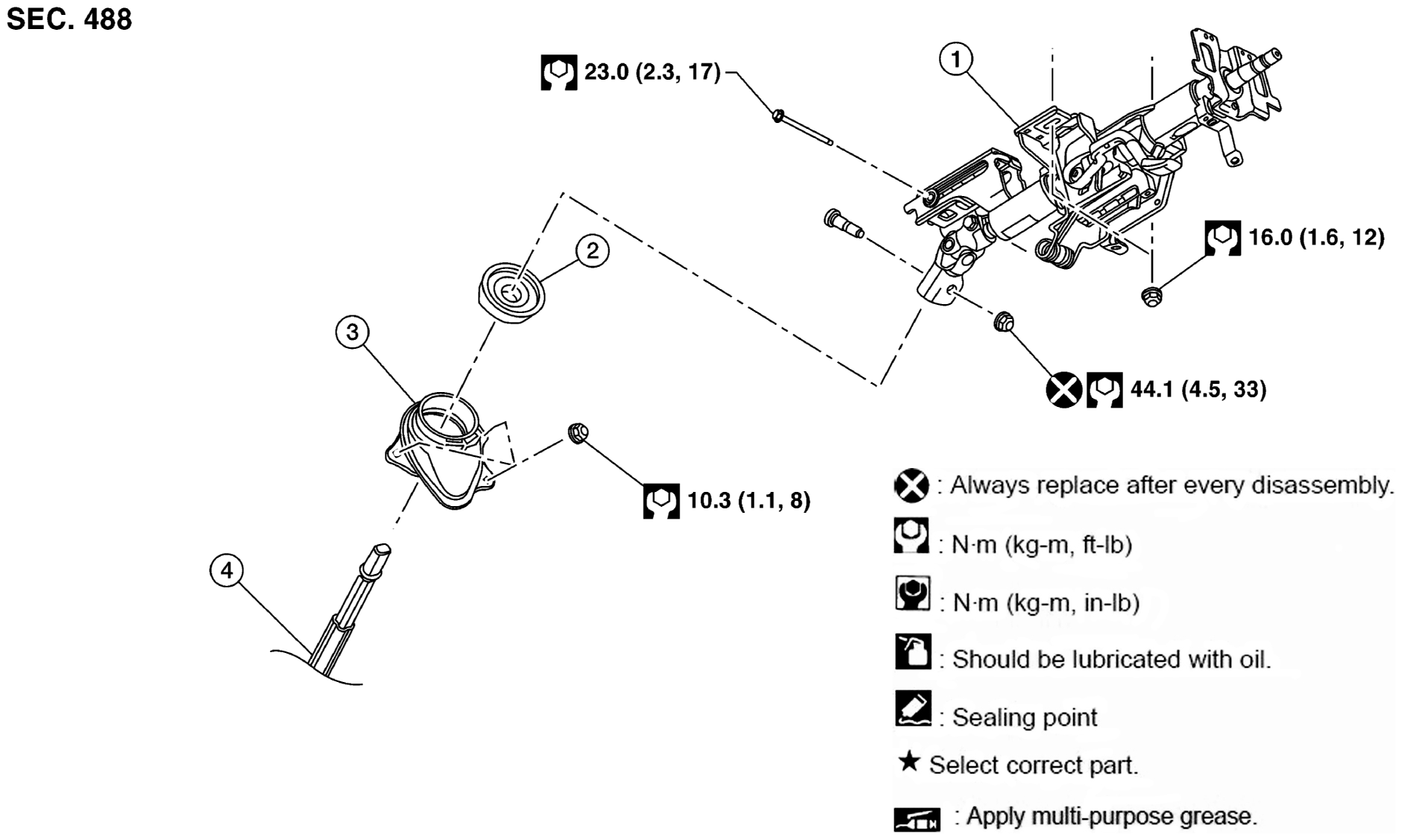

Fig 2: Mechanical Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column	2.	Hole cover seal	3.	Hole cover
4.	Lower joint
