Home >> Nissan-Datsun >> 2017 >> Maxima SR Midnight Edition >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Removal And Installation >> Starter Motor >> Exploded View

Exploded View

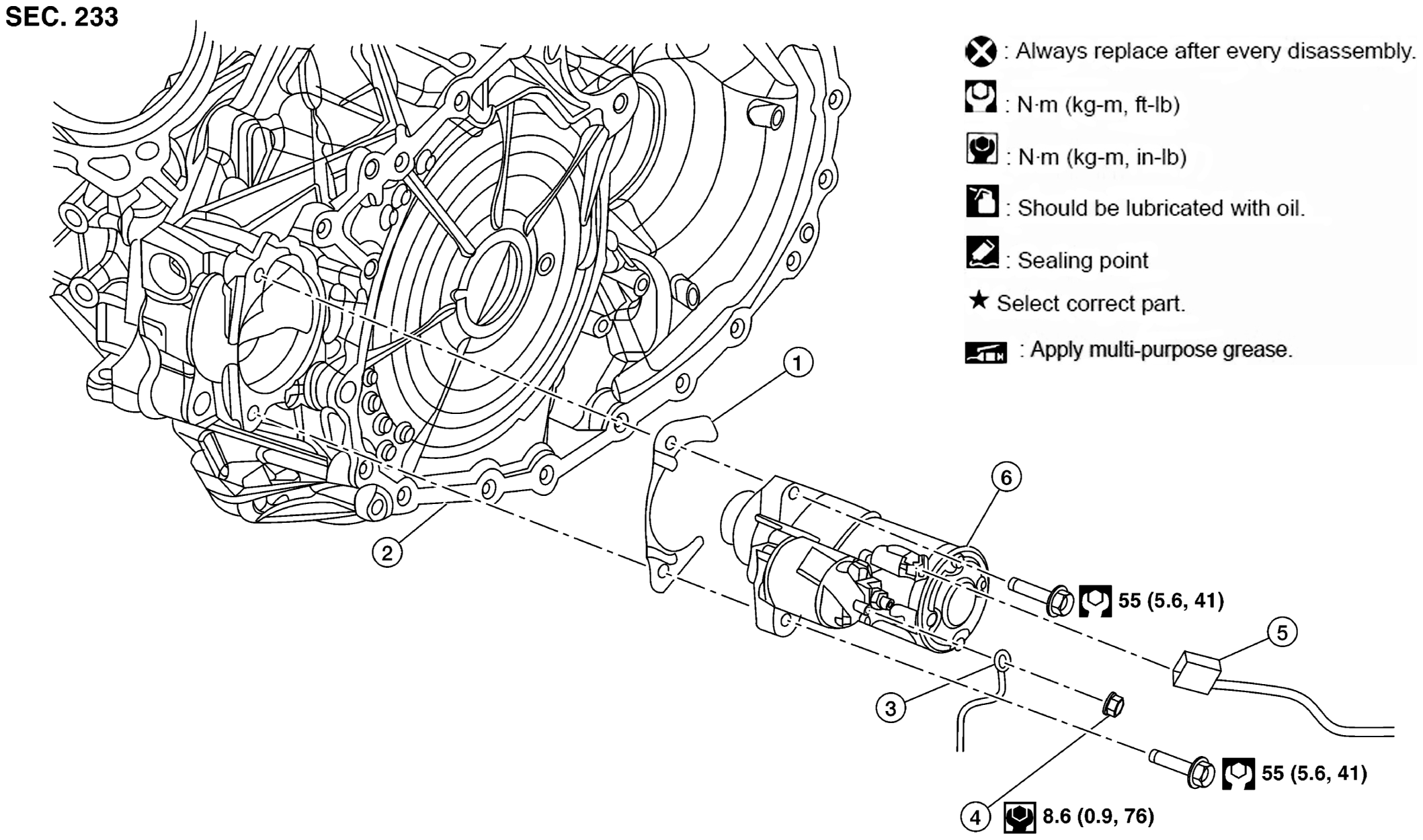

Fig 1: Starter Motor With Torque Specifications
GNSAWBIA2722ZZ-722Courtesy of NISSAN NORTH AMERICA, INC.
1. Shim 2. Converter housing 3. "B" terminal harness
4. "B" terminal nut 5. Starter harness connector 6. Starter motor
