Exploded View

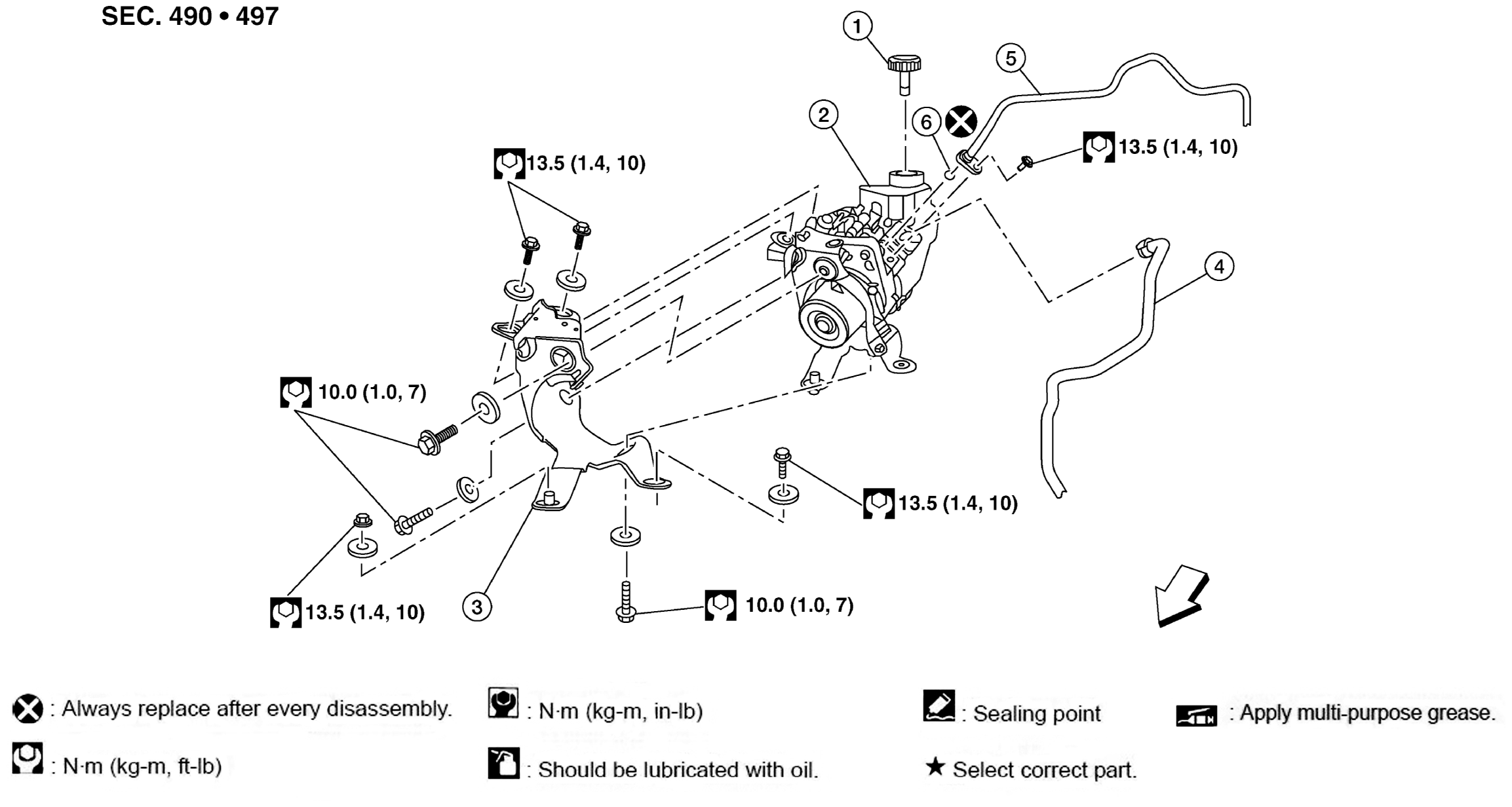

Fig 1: Power Steering Oil Pump With Torque Specifications
GNSAWGIA0381ZZ-381Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering reservoir cap 2. Power steering oil pump 3. Power steering oil pump bracket
4. Low-pressure piping 5. High-pressure piping 6. O-ring
ARROW Front
