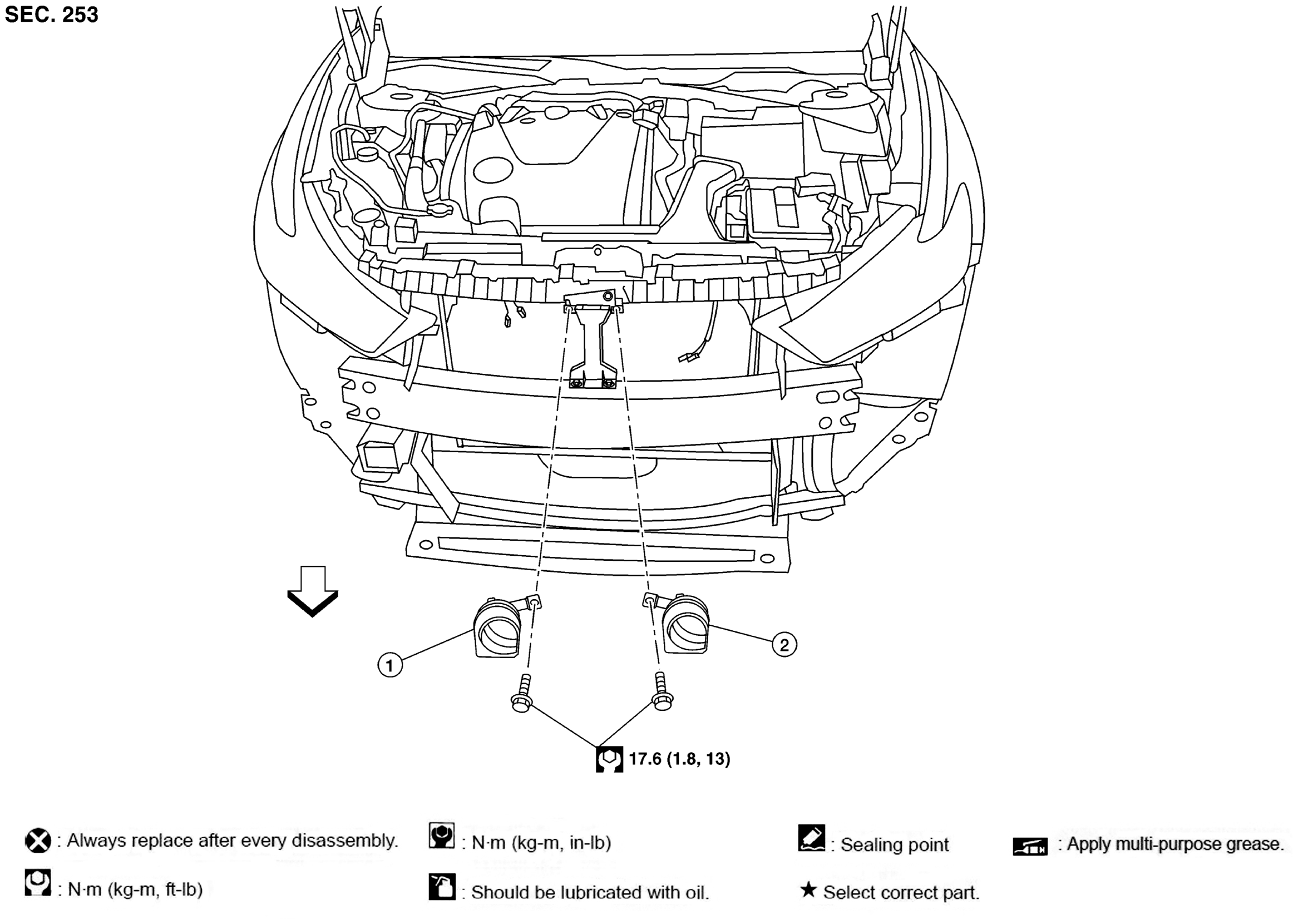

Exploded View With Torque Specifications

GNSALLIA1831ZZ-831

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Horn (HIGH)	2.	Horn (LOW)		Front
