Component Location

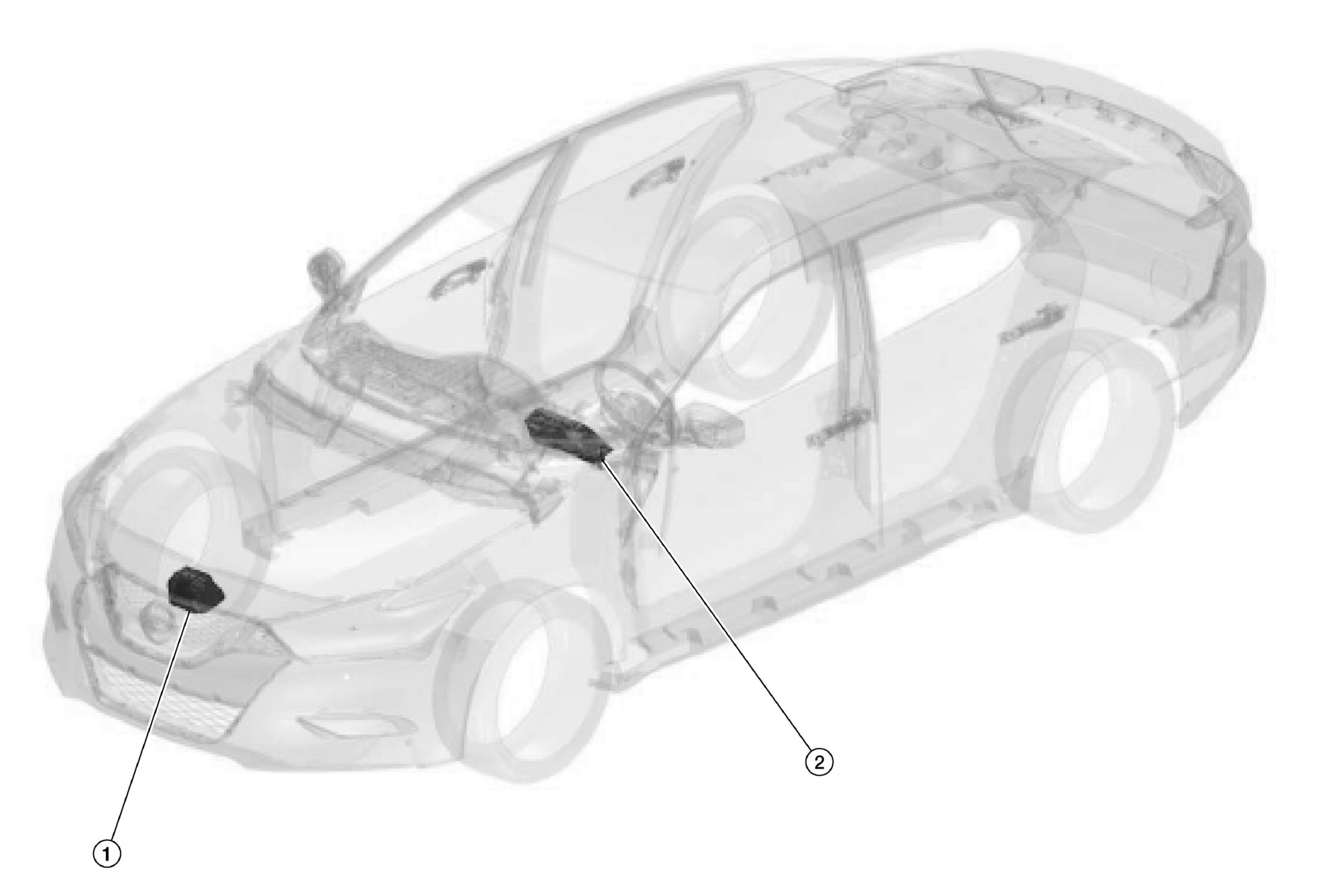

GNSAWMIA1729ZZ-729Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
1. Generator Refer to GENERATOR .
2. Combination meter
(Charge warning lamp)		 The IC voltage regulator warning function activates to illuminate the charge warning lamp, if any of the following symptoms occur while generator is operating:
  • Excessive voltage is produced.
  • No voltage is produced.
