Power Distribution System: Wiring Diagram

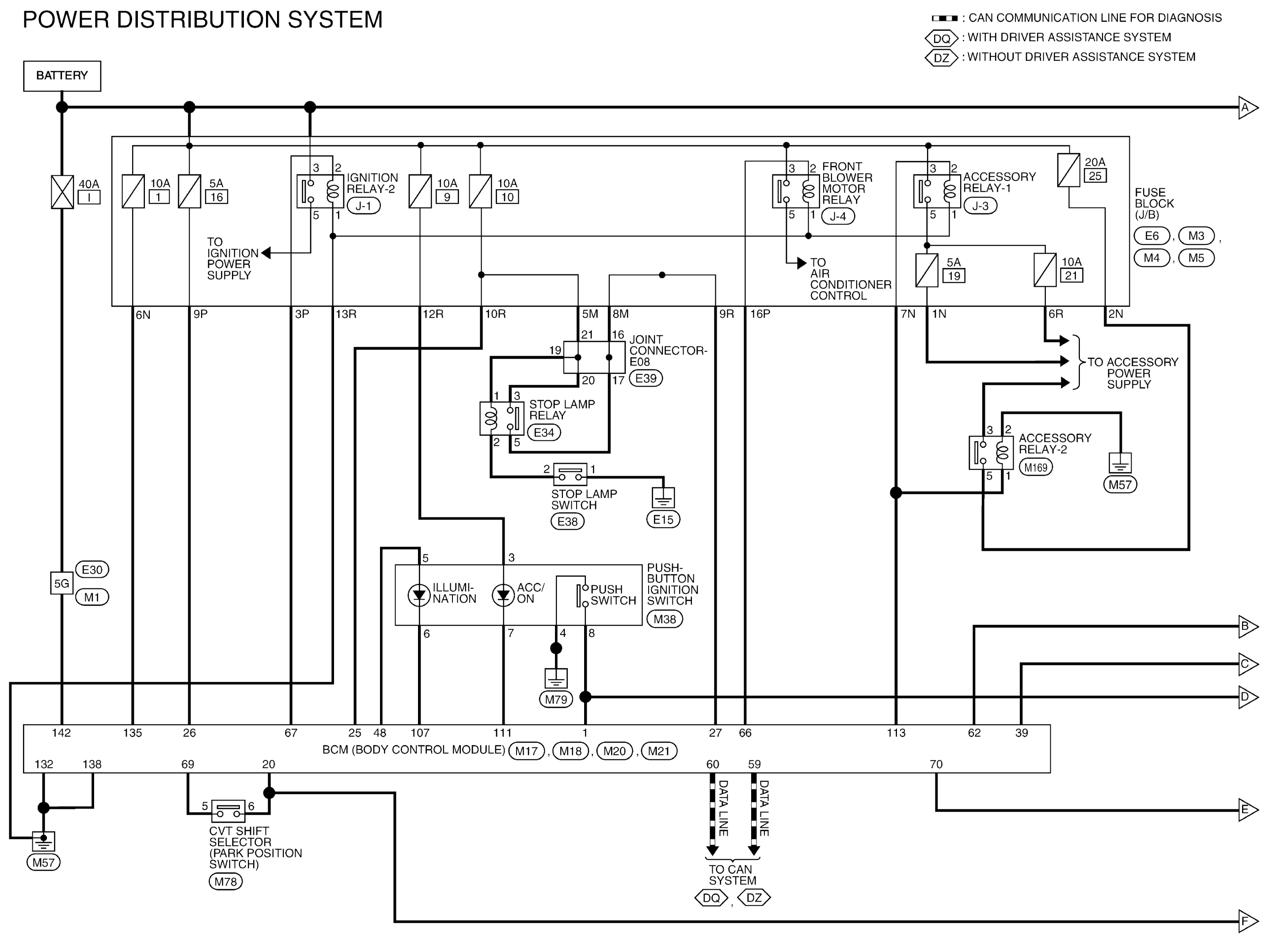

GNSABMWA3882GB-882

Courtesy of NISSAN NORTH AMERICA, INC.

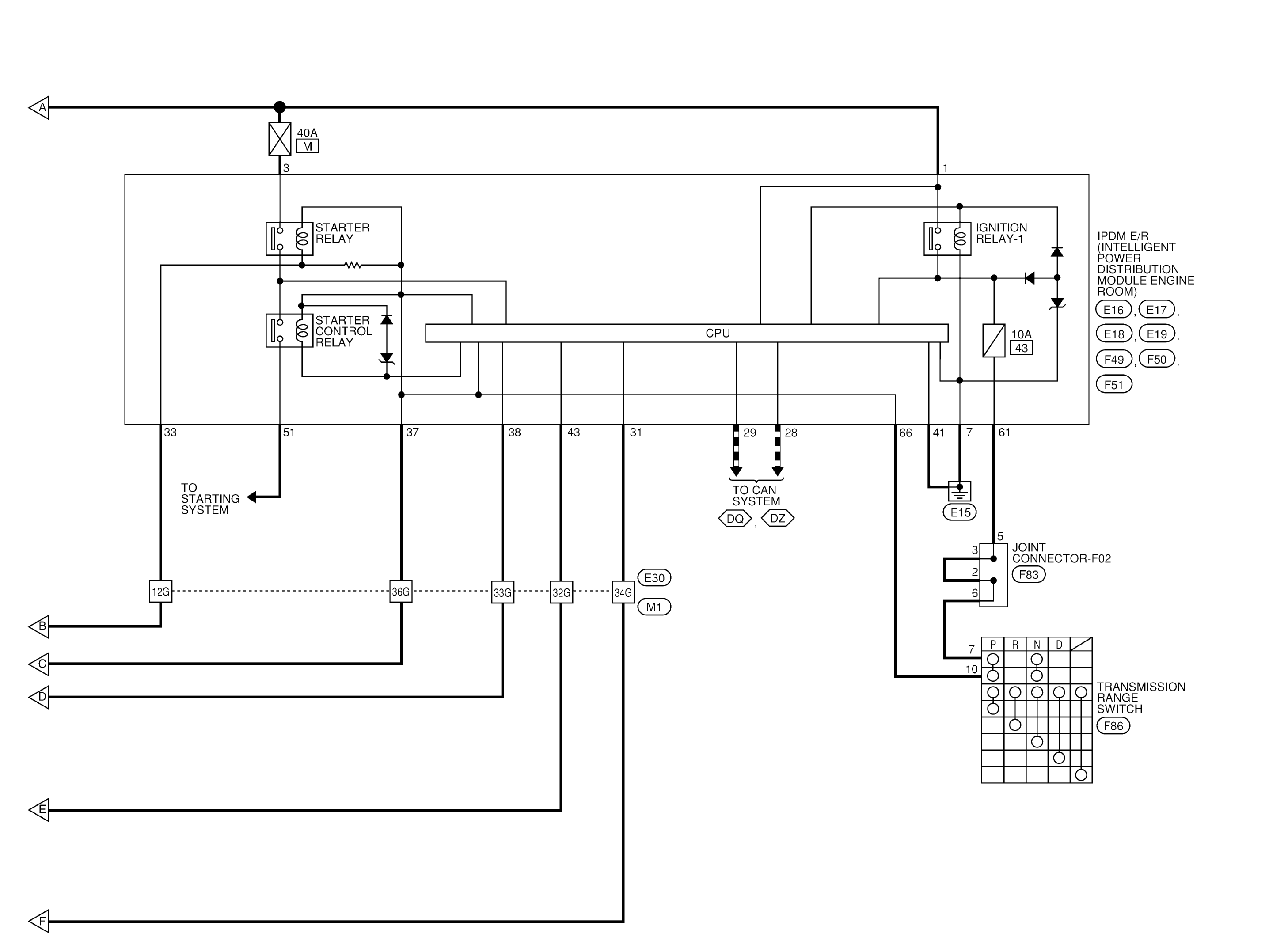

GNSAAMWA1726GB-726

Courtesy of NISSAN NORTH AMERICA, INC.

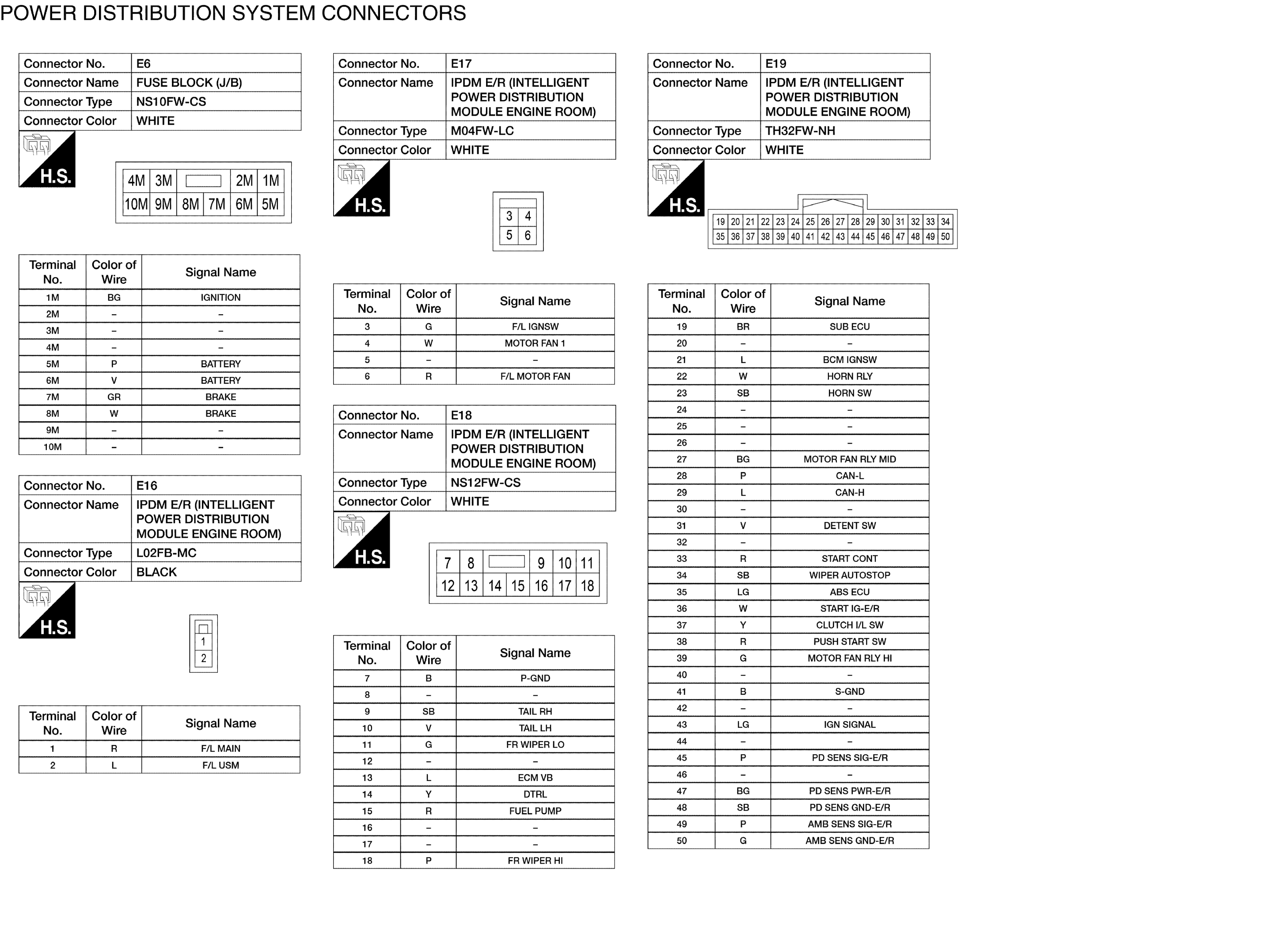

GNSABMIA8972GB-972

Courtesy of NISSAN NORTH AMERICA, INC.

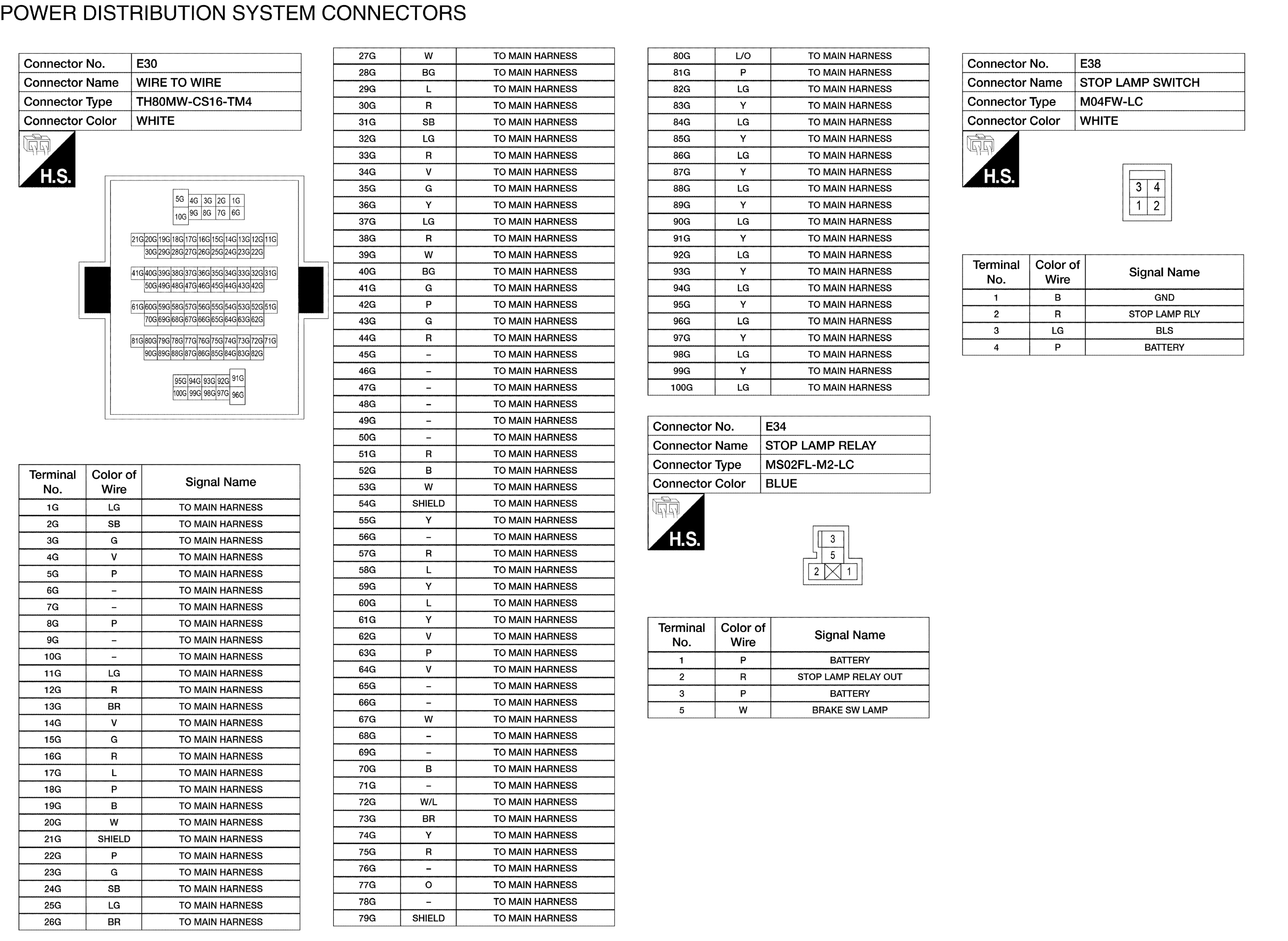

GNSABMIA8973GB-973

Courtesy of NISSAN NORTH AMERICA, INC.

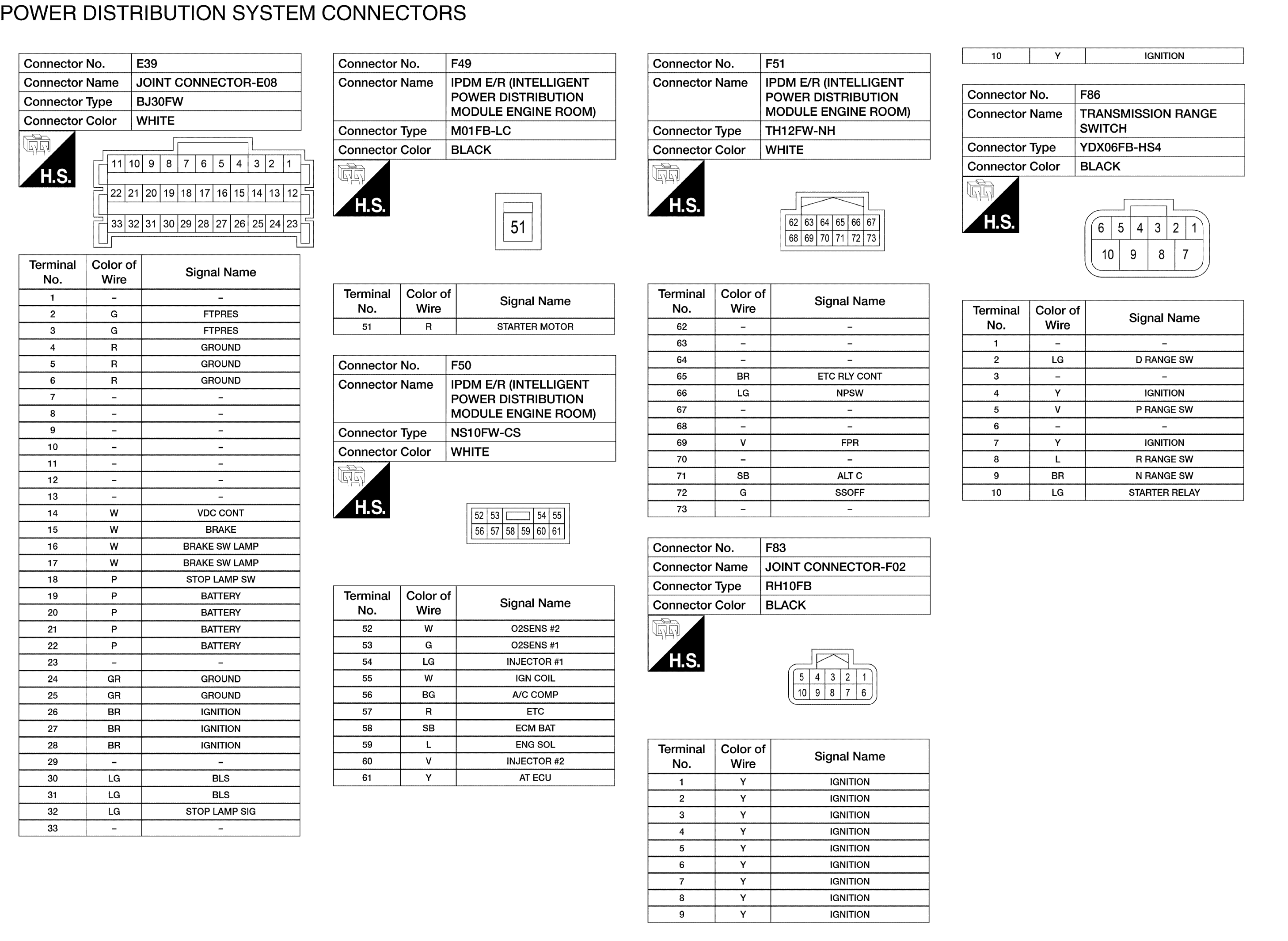

GNSABMIA8974GB-974

Courtesy of NISSAN NORTH AMERICA, INC.

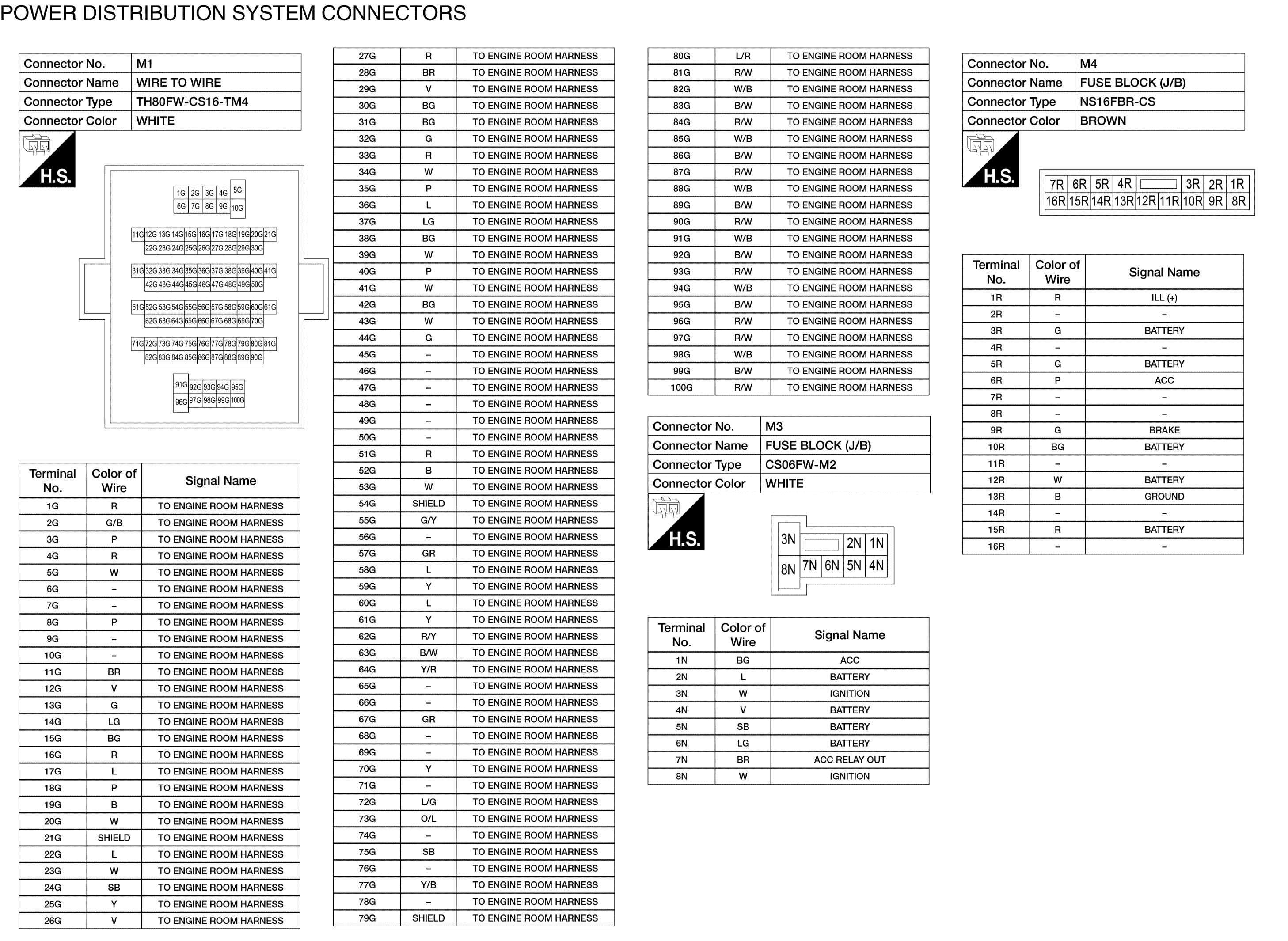

GNSABMIA8975GB-975

Courtesy of NISSAN NORTH AMERICA, INC.

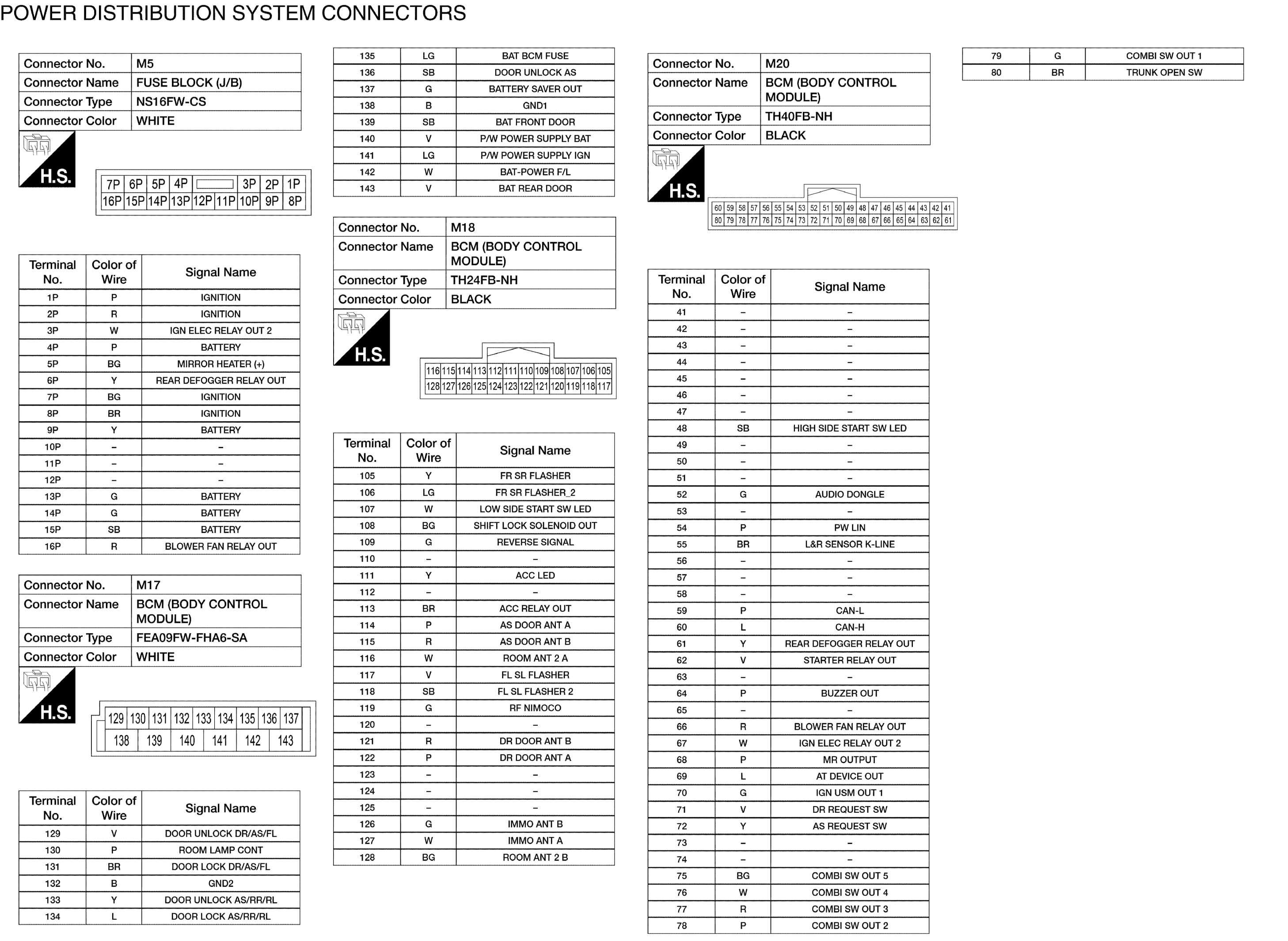

GNSABMIA8976GB-976

Courtesy of NISSAN NORTH AMERICA, INC.

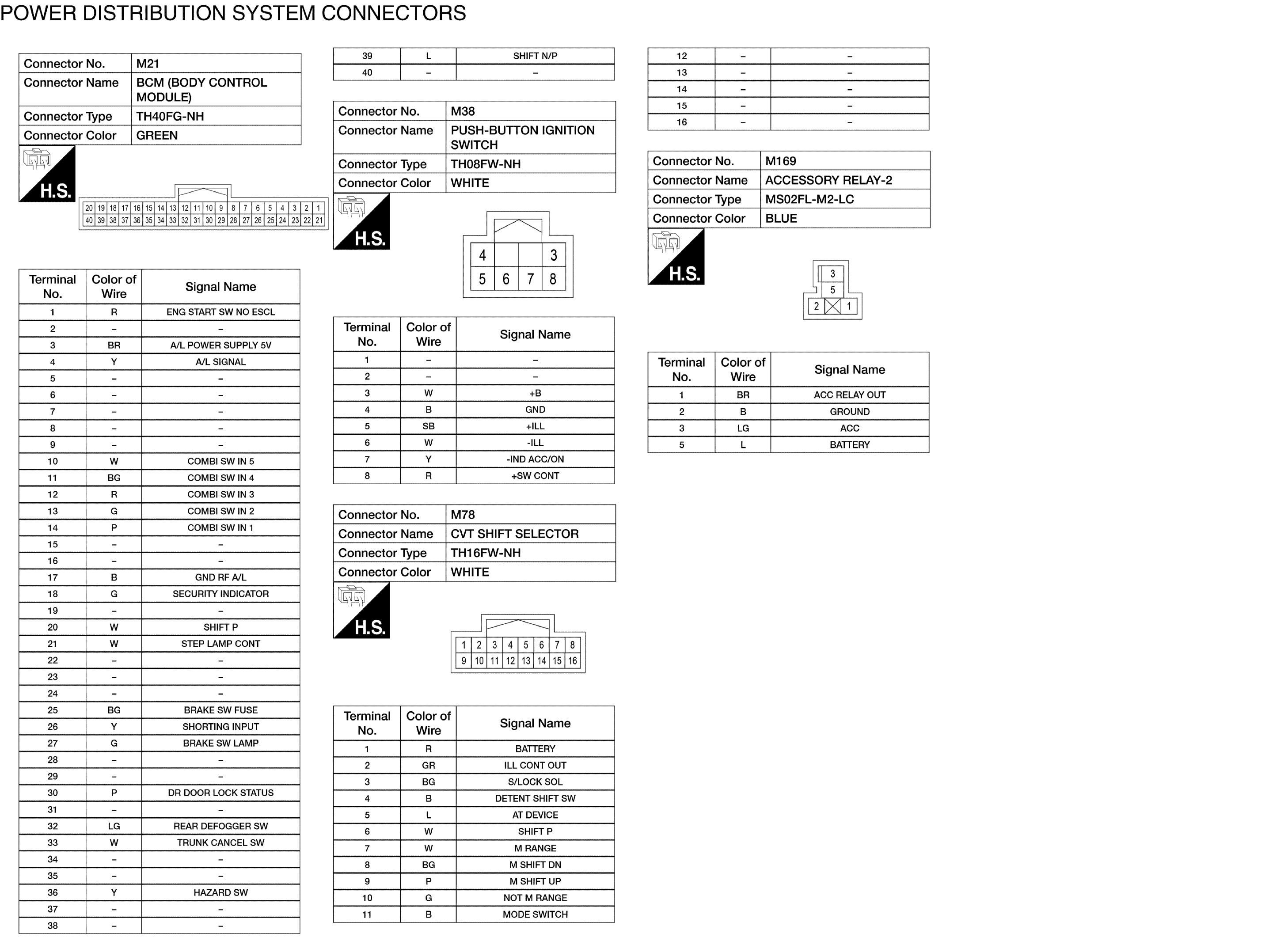

GNSABMIA8977GB-977

Courtesy of NISSAN NORTH AMERICA, INC.
