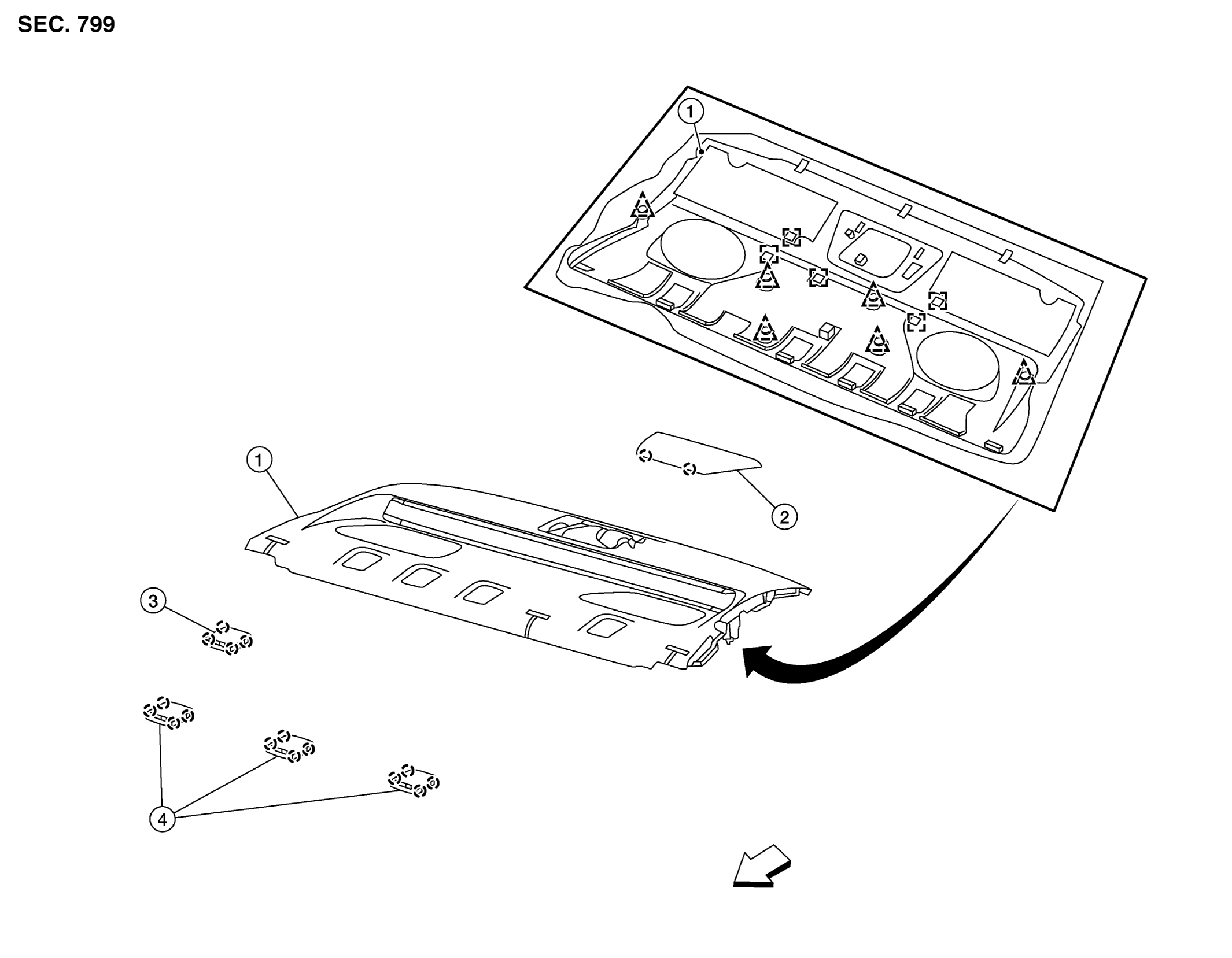

Exploded View With Torque Specifications

WITH SUNSHADE

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear parcel shelf finisher	2.	High-mounted stop lamp	3.	Seatback lock finisher
4.	Child anchor cover		Clip		Pawl
	Dual lock fasteners		Front

WITHOUT SUNSHADE

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear parcel shelf finisher	2.	High-mounted stop lamp	3.	Seatback lock finisher
4.	Child anchor cover		Clip		Pawl
	Dual lock fasteners		Front
