Exploded View With Torque Specifications

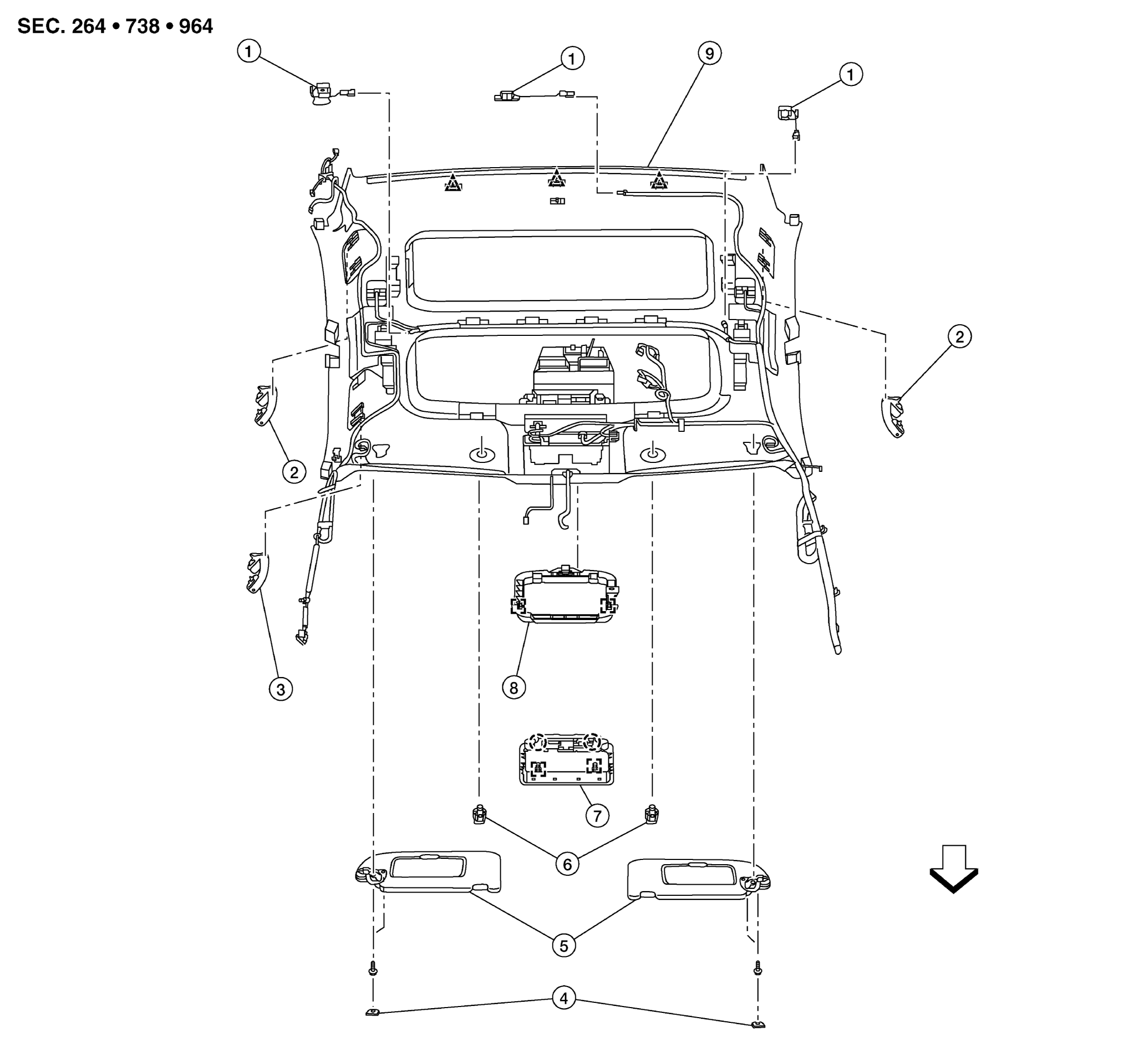

WITHOUT SUNROOF

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Active noise control microphone	2.	Rear assist grip (LH/RH)	3.	Front assist grip
4.	Sun visor cover (LH/RH)	5.	Sun visors (RH/LH)	6.	Sun visor holder (LH/RH)
7.	Front room/map lamp	8.	Front room/map lamp bracket	9.	Headlining
A.	Clip		Metal clip		Clip
	Pawl		Front

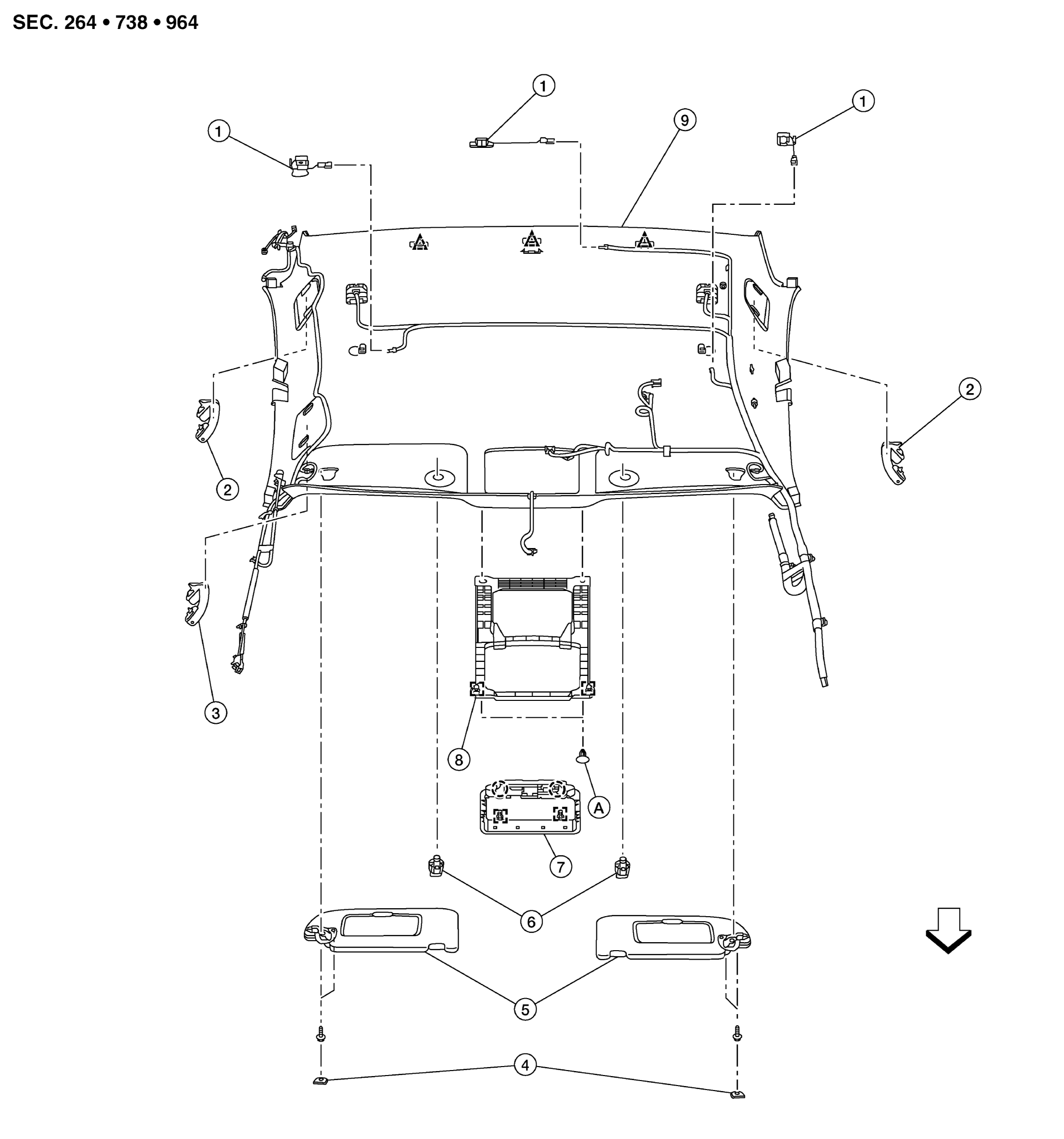

WITH SUNROOF

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Active noise control microphone	2.	Rear assist grip (LH/RH)	3.	Front assist grip
4.	Sun visor cover (LH/RH)	5.	Sun visors (RH/LH)	6.	Sun visor holder (LH/RH)
7.	Front room/map lamp	8.	Front room/map lamp bracket	9.	Headlining
	Metal clip		Clip		Pawl
	Front
