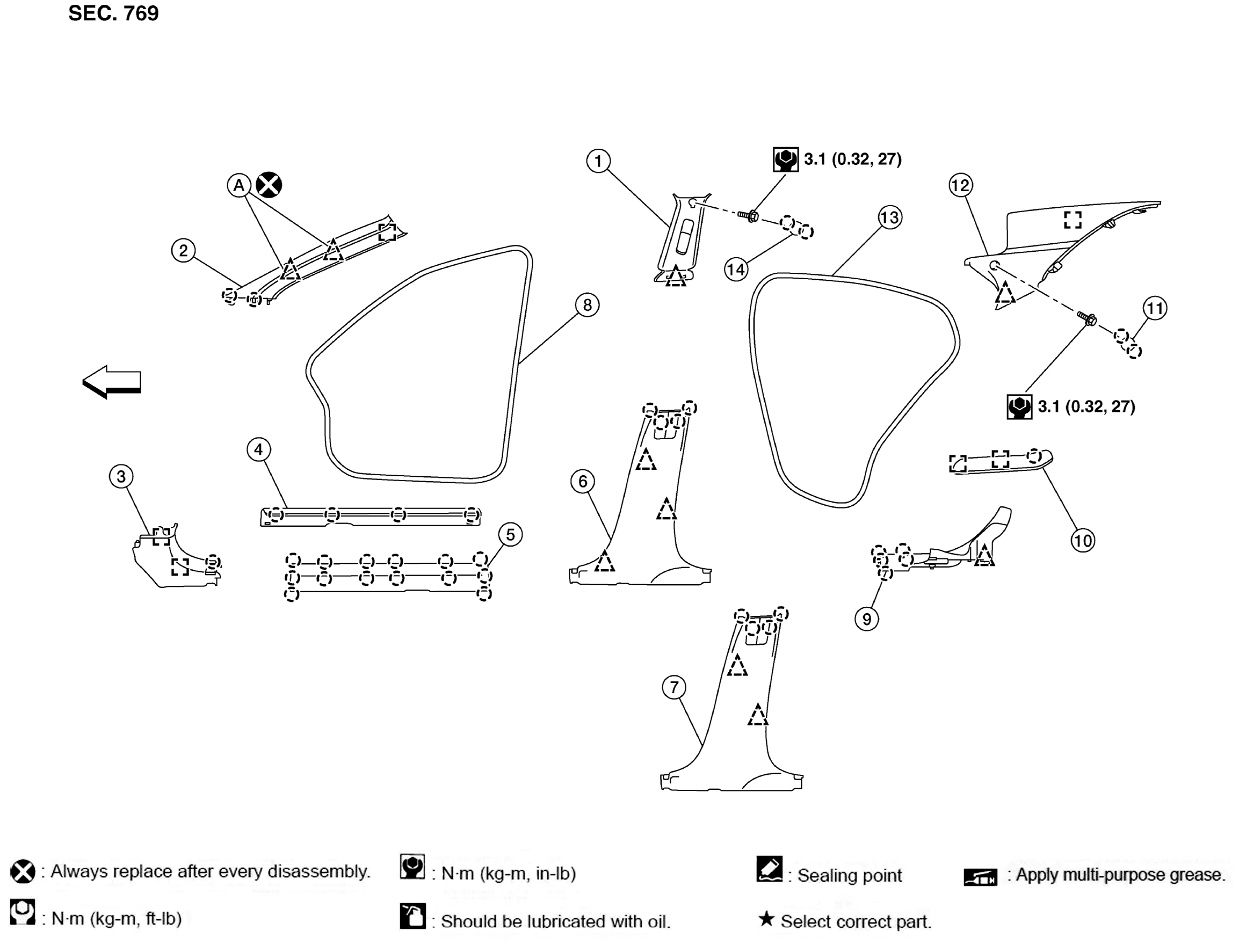

Exploded View With Torque Specifications
NOTE:
LH side shown.
| 1. | Center pillar upper finisher | 2. | Front pillar finisher | 3. | Dash side finisher |
| 4. | Front kicking plate outer | 5. | Front kicking plate inner | 6. | Center pillar lower finisher (early production) |
| 7. | Center pillar lower finisher (late production) |
8. | Front body side welt | 9. | Rear kicking plate inner |
| 10. | Rear kicking plate outer | 11. | Rear pillar finisher cover | 12. | Rear pillar finisher |
| 13. | Rear body side welt | 14. | Center pillar upper finisher cover | A. | Tether clip |
| Clip | Pawl | Metal clip | |||
| Front |
