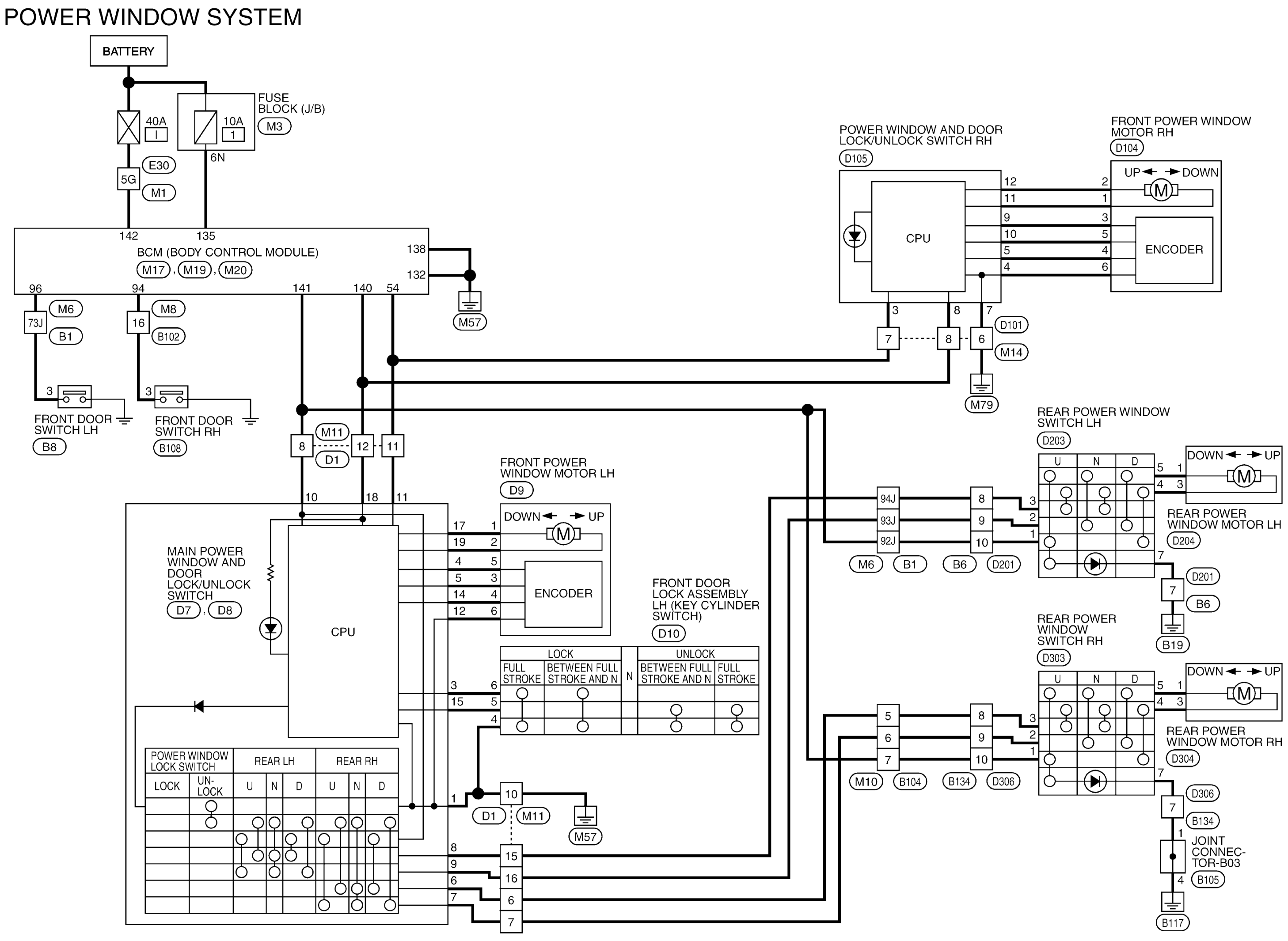

Power Window System: Wiring Diagram

GNSABKWA3344GB-344

Courtesy of NISSAN NORTH AMERICA, INC.

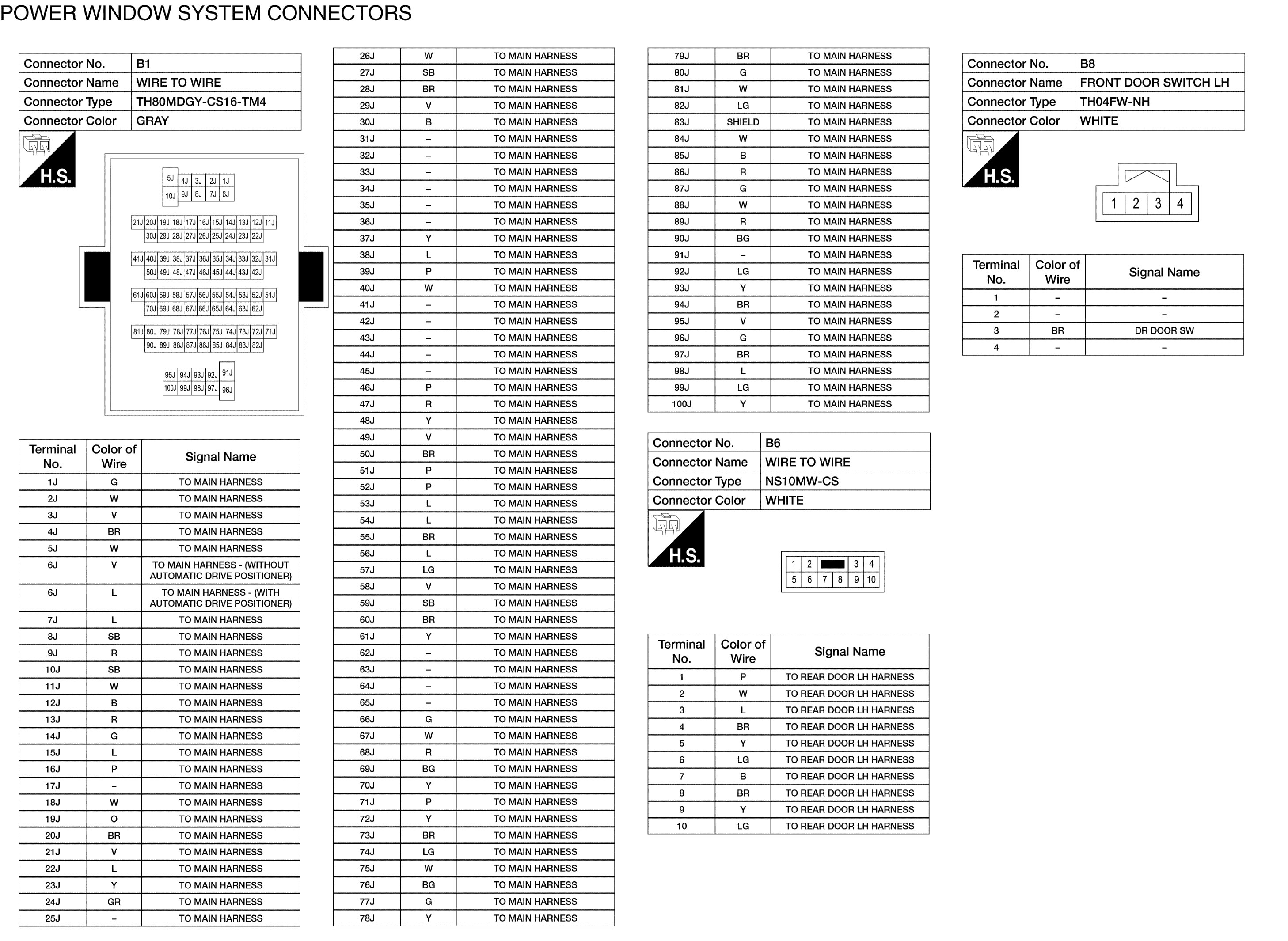

GNSABKIA8008GB-008

Courtesy of NISSAN NORTH AMERICA, INC.

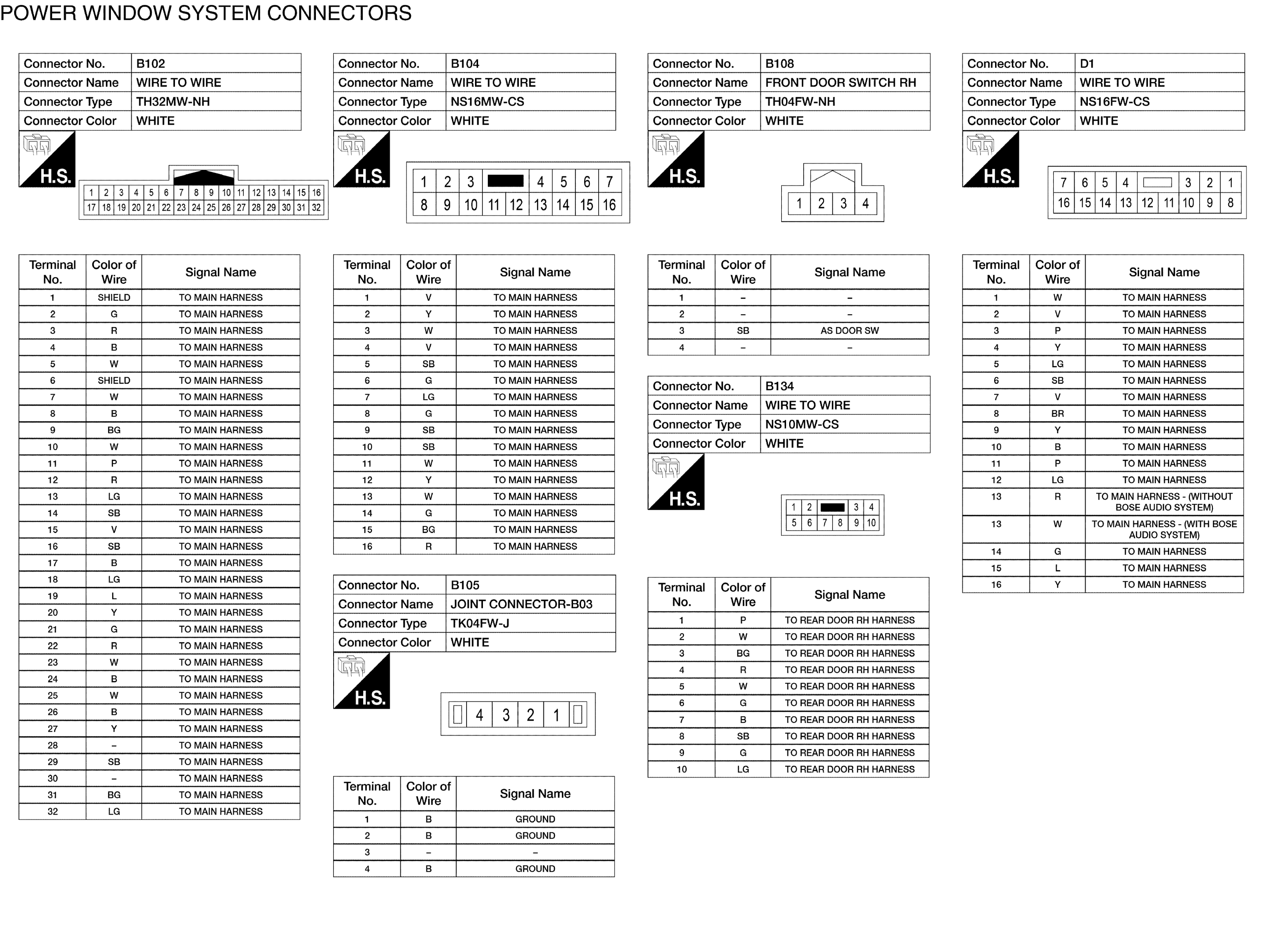

GNSABKIA8009GB-009

Courtesy of NISSAN NORTH AMERICA, INC.

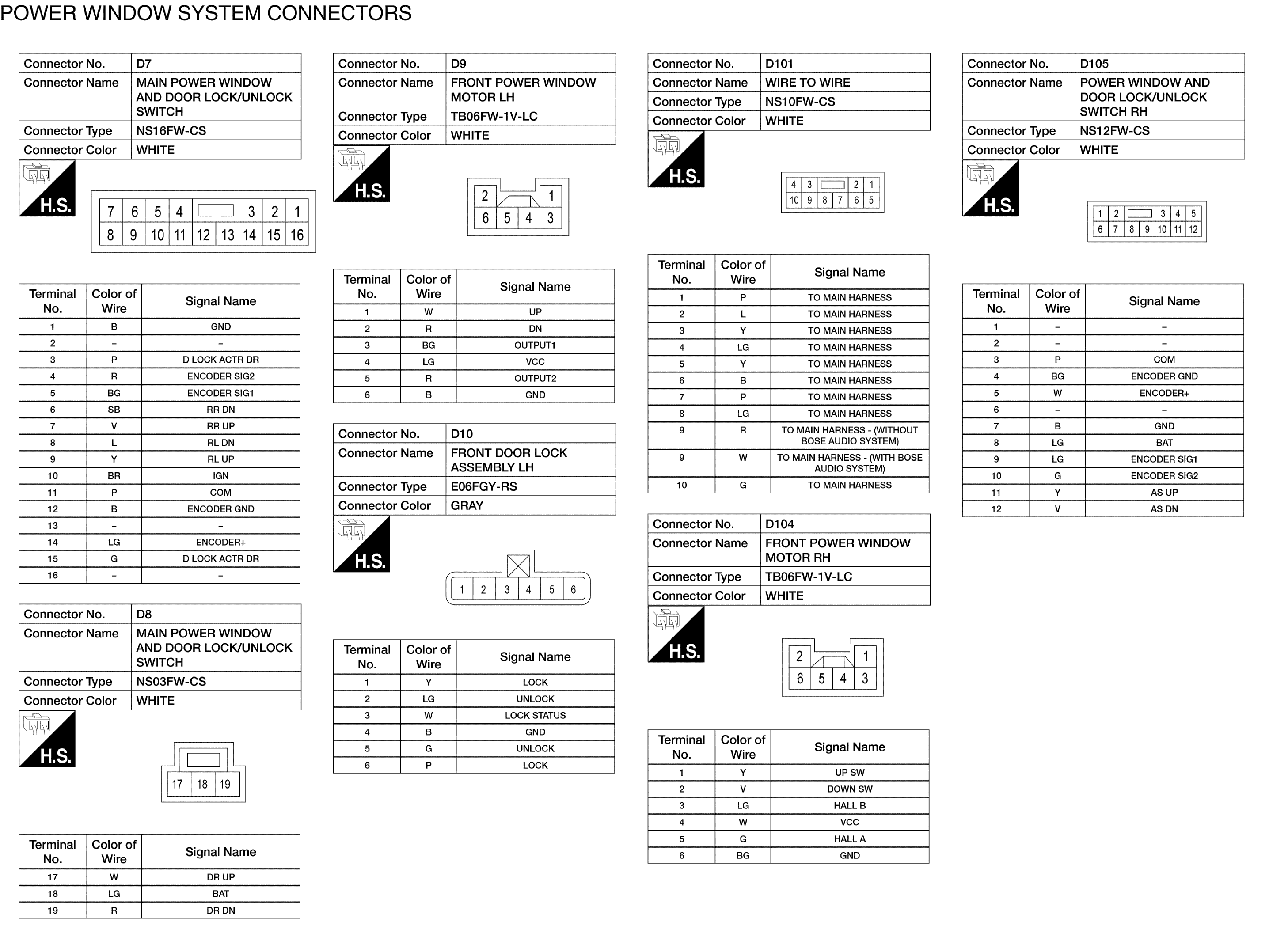

GNSABKIA8010GB-010

Courtesy of NISSAN NORTH AMERICA, INC.

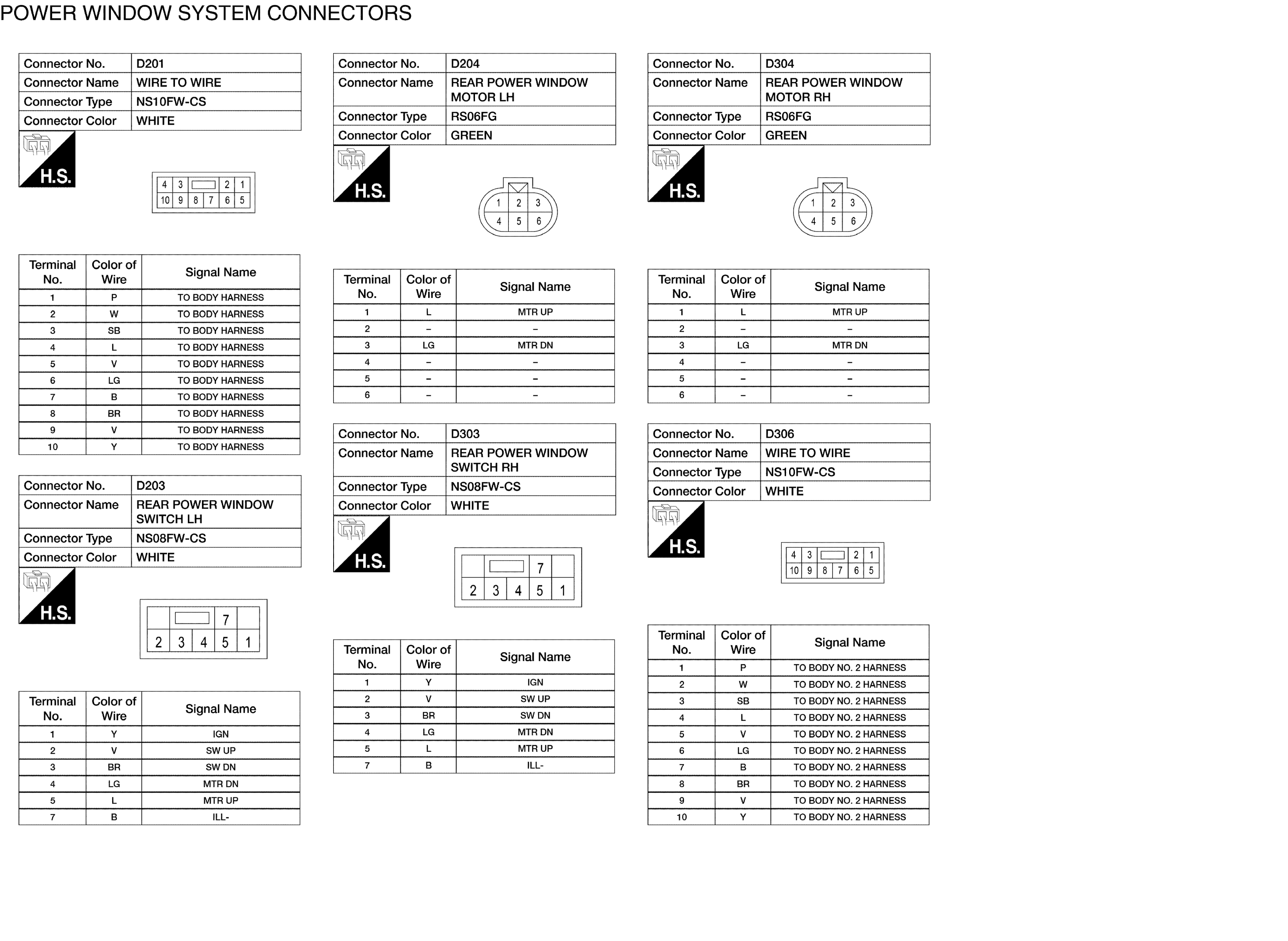

GNSABKIA8011GB-011

Courtesy of NISSAN NORTH AMERICA, INC.

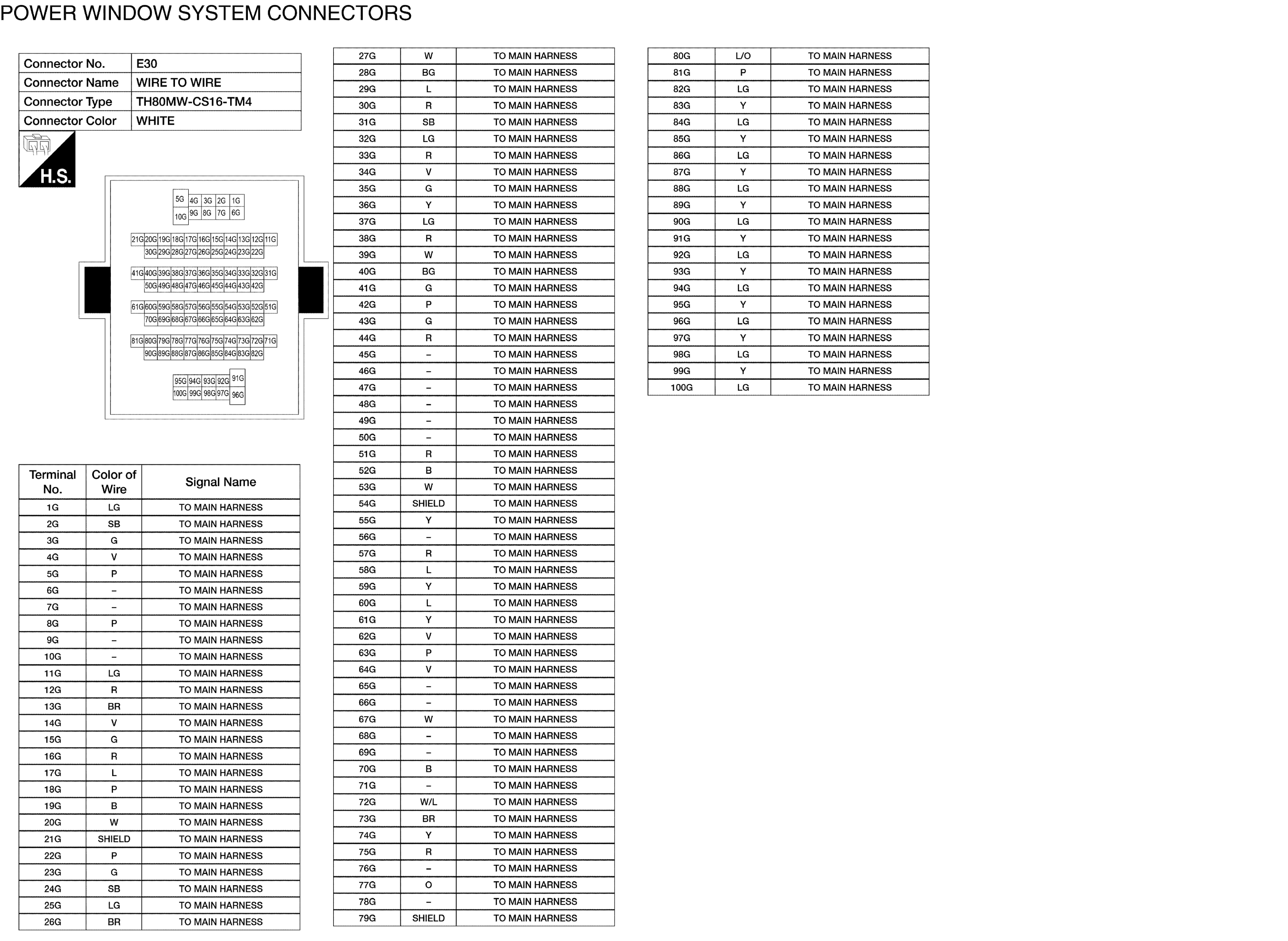

GNSABKIA8012GB-012

Courtesy of NISSAN NORTH AMERICA, INC.

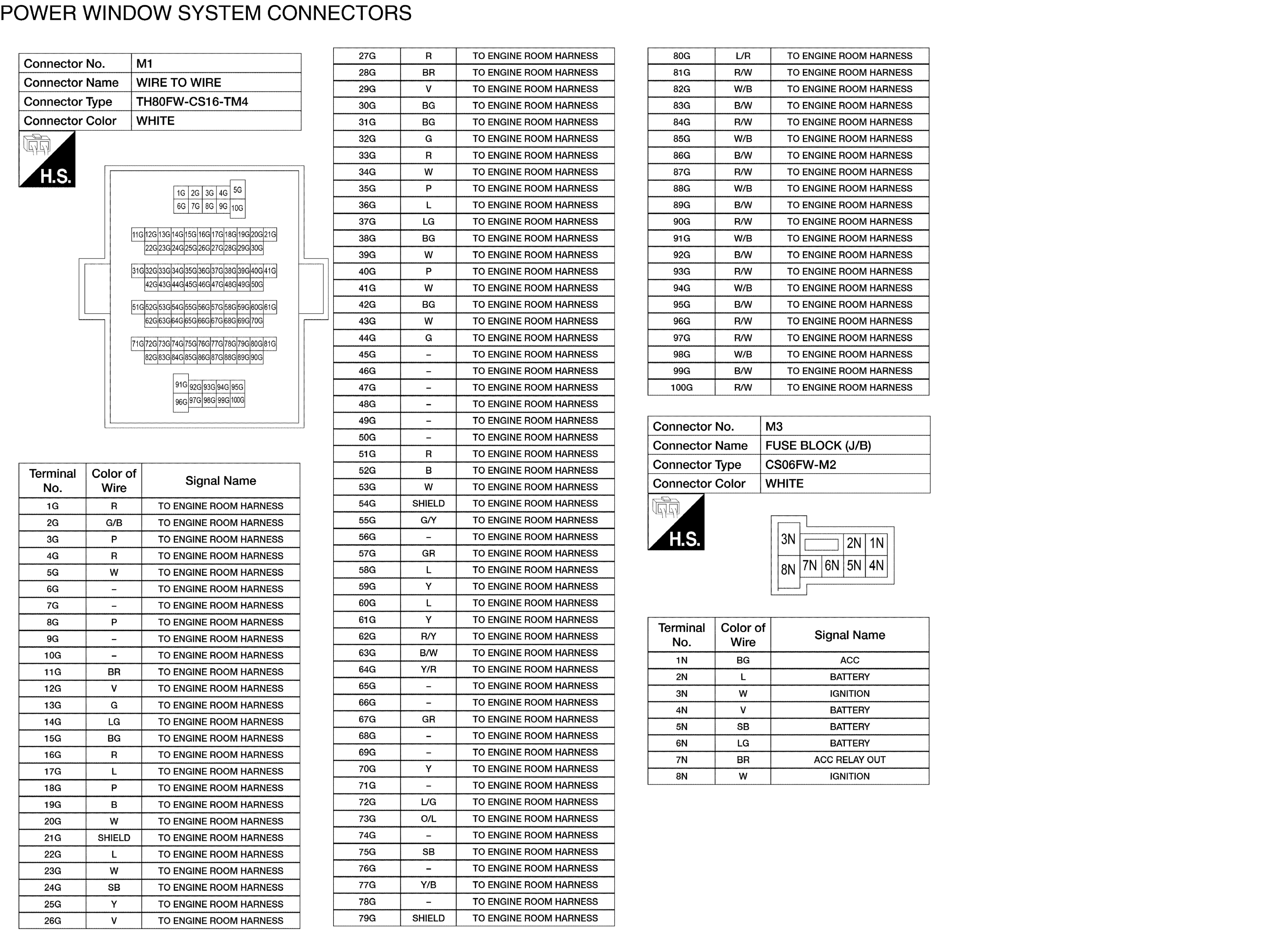

GNSABKIA8013GB-013

Courtesy of NISSAN NORTH AMERICA, INC.

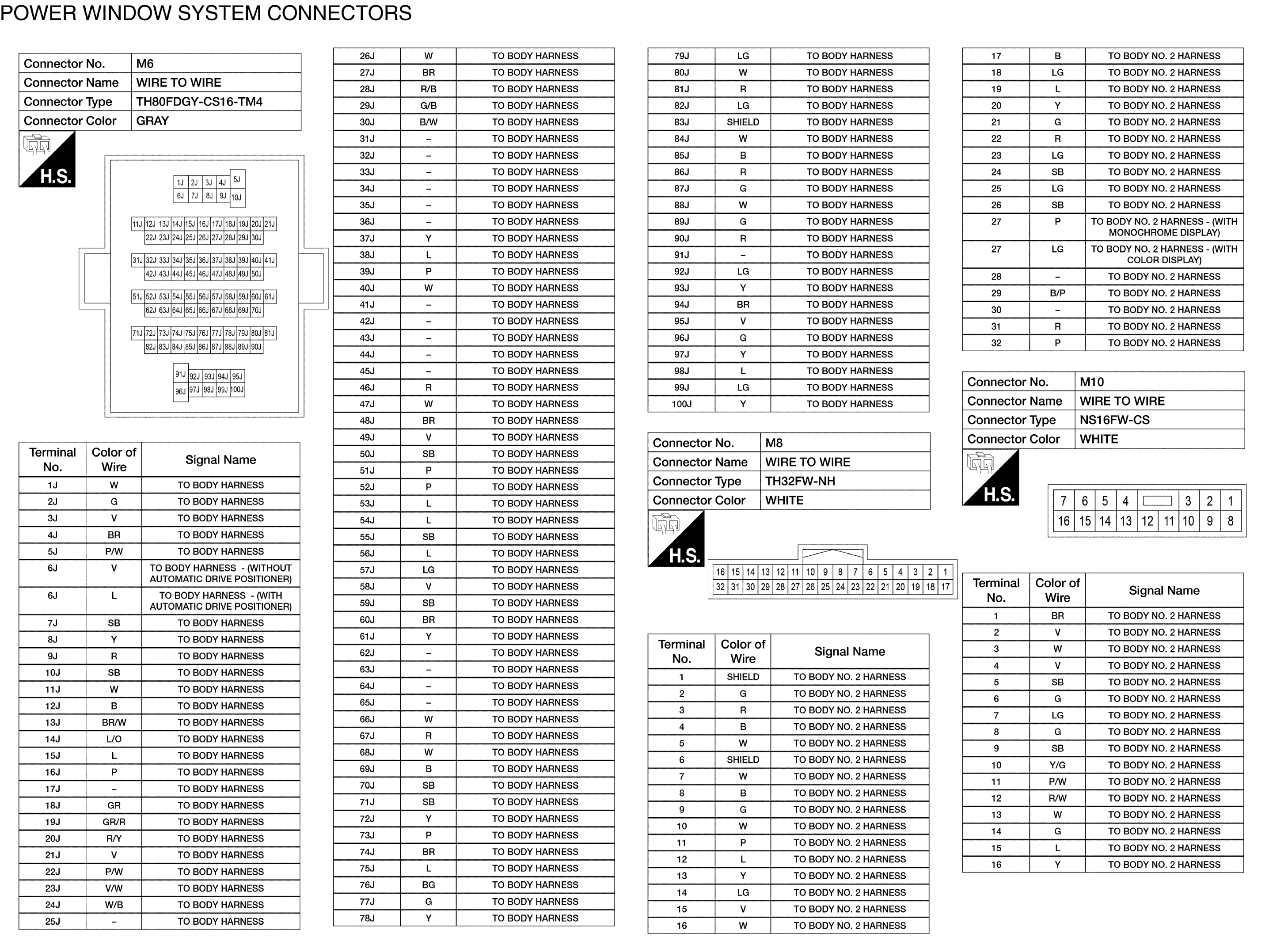

GNSABKIA8014GB-014

Courtesy of NISSAN NORTH AMERICA, INC.

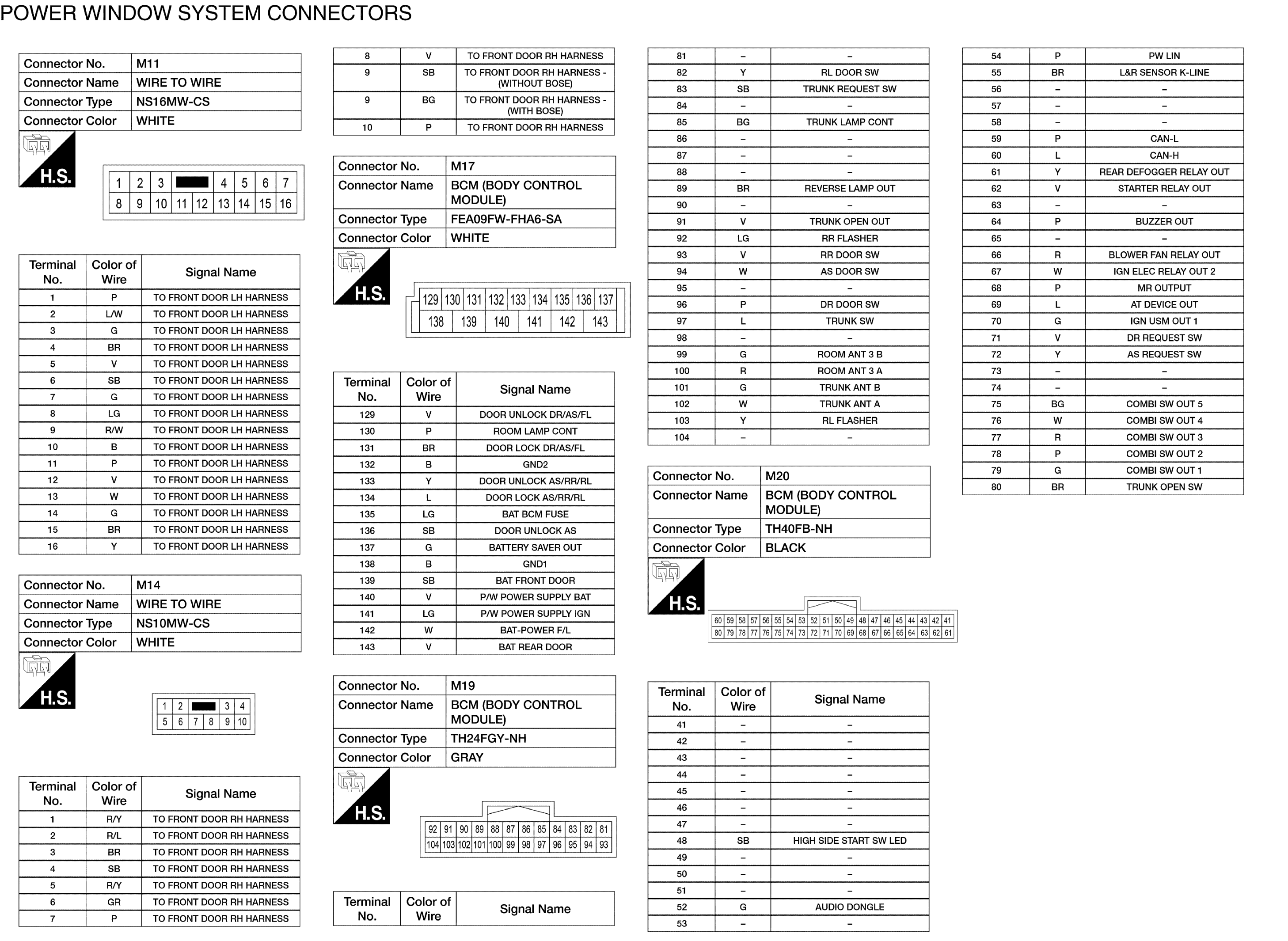

GNSABKIA8015GB-015

Courtesy of NISSAN NORTH AMERICA, INC.
