Section 137 (Intelligent Cruise Control System (ICC))
>>
System Description
>>
System
>>
System Description
>>
System Diagram
System Diagram
WARNING:
This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

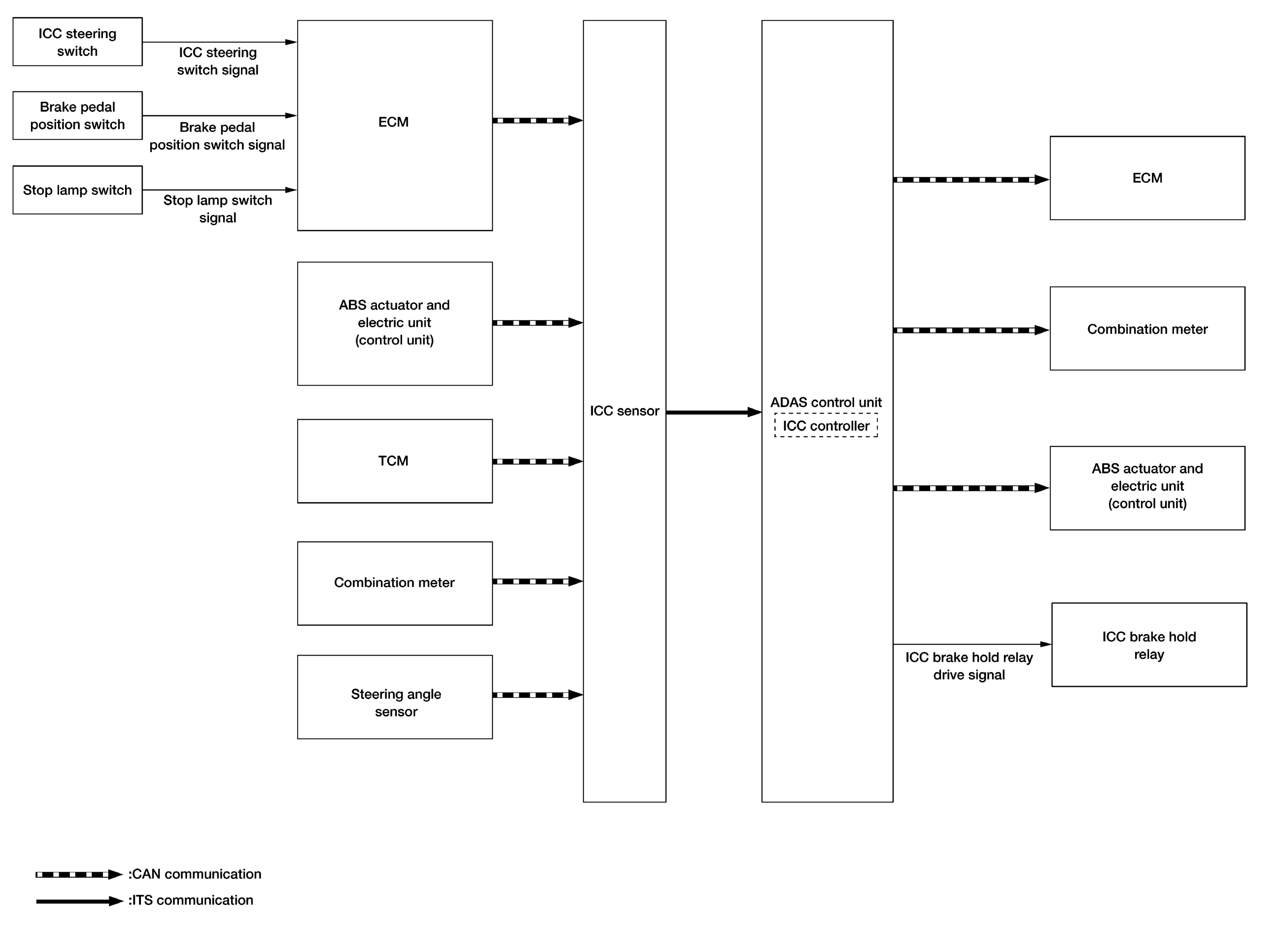

Fig 1: Intelligent Cruise Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
