Removal And Installation: Installation

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Install ICC sensor to ICC sensor bracket.

Install ICC sensor bolts loosely and then tighten in sequence as shown.

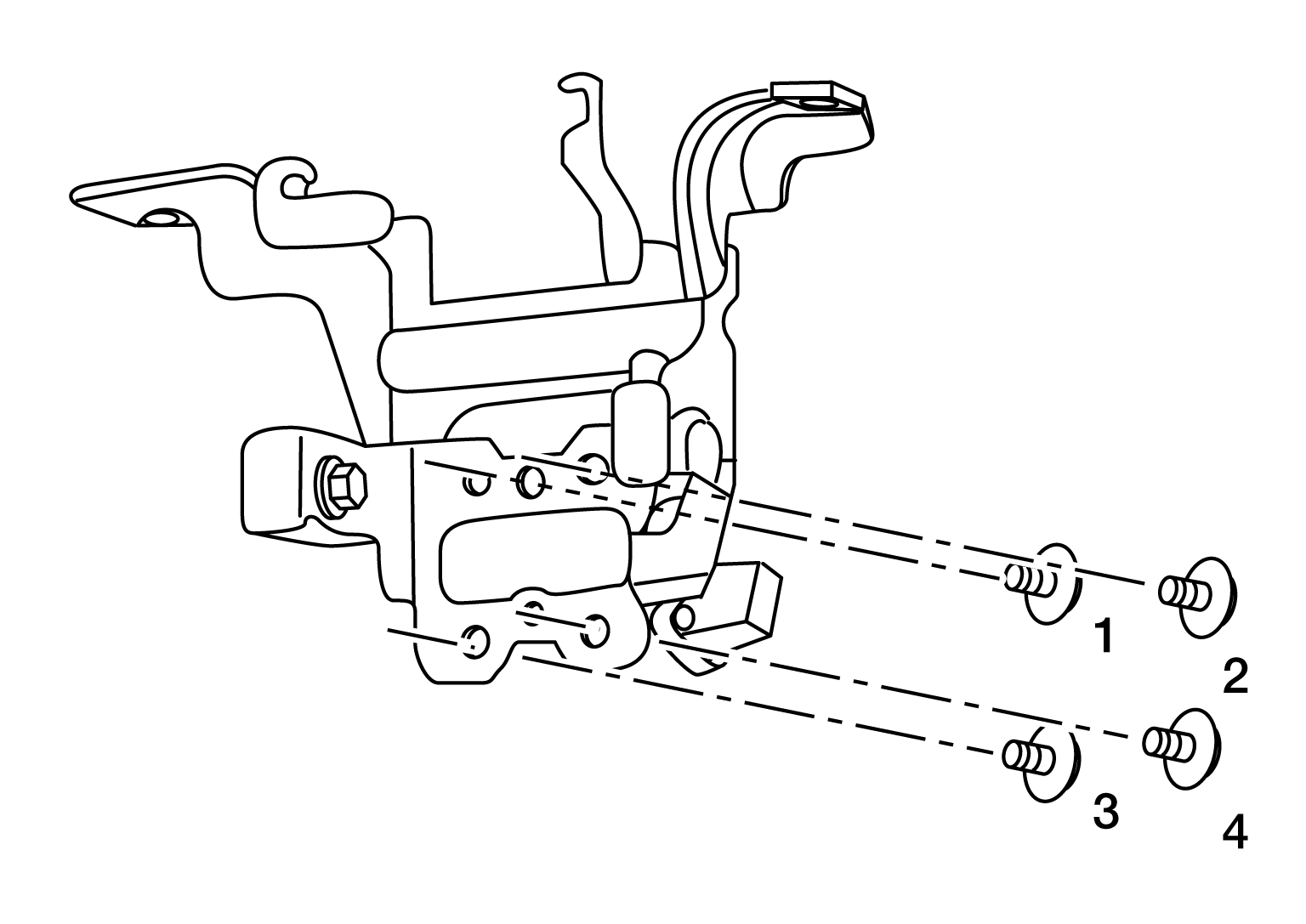

Fig 1: ICC Sensor Bolt Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.

ICC Sensor Bolts 3.8 N.m (0.39 kg-m, 34 in-lb)

Install ICC sensor bracket to front bumper reinforcement.

Install ICC sensor bracket bolts loosely and then tighten in sequence as shown.

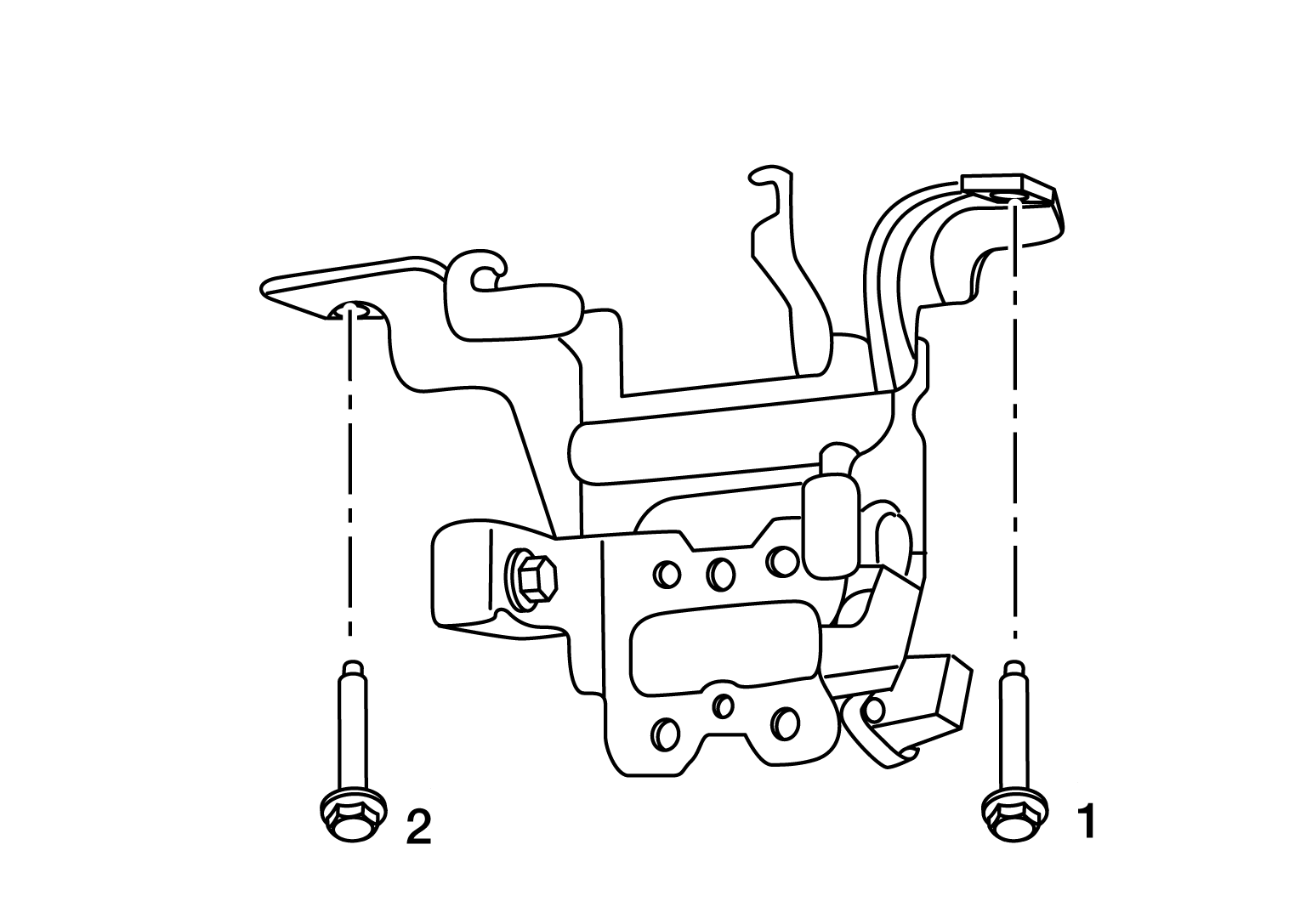

Fig 2: ICC Sensor Bracket Bolt Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.

ICC Sensor Bracket Bolts 10.0 N.m (1.0 kg-m, 7 ft-lb)

Installation of remaining components is in the reverse order of removal.

CAUTION:

Always perform the ICC sensor alignment and check the operation after removal, installation or replacement of ICC sensor. Refer to DESCRIPTION .

Do not touch ICC sensor face.

Do not drop or shock ICC sensor.

Make sure ICC sensor harness is installed without any twists.
