Component Location

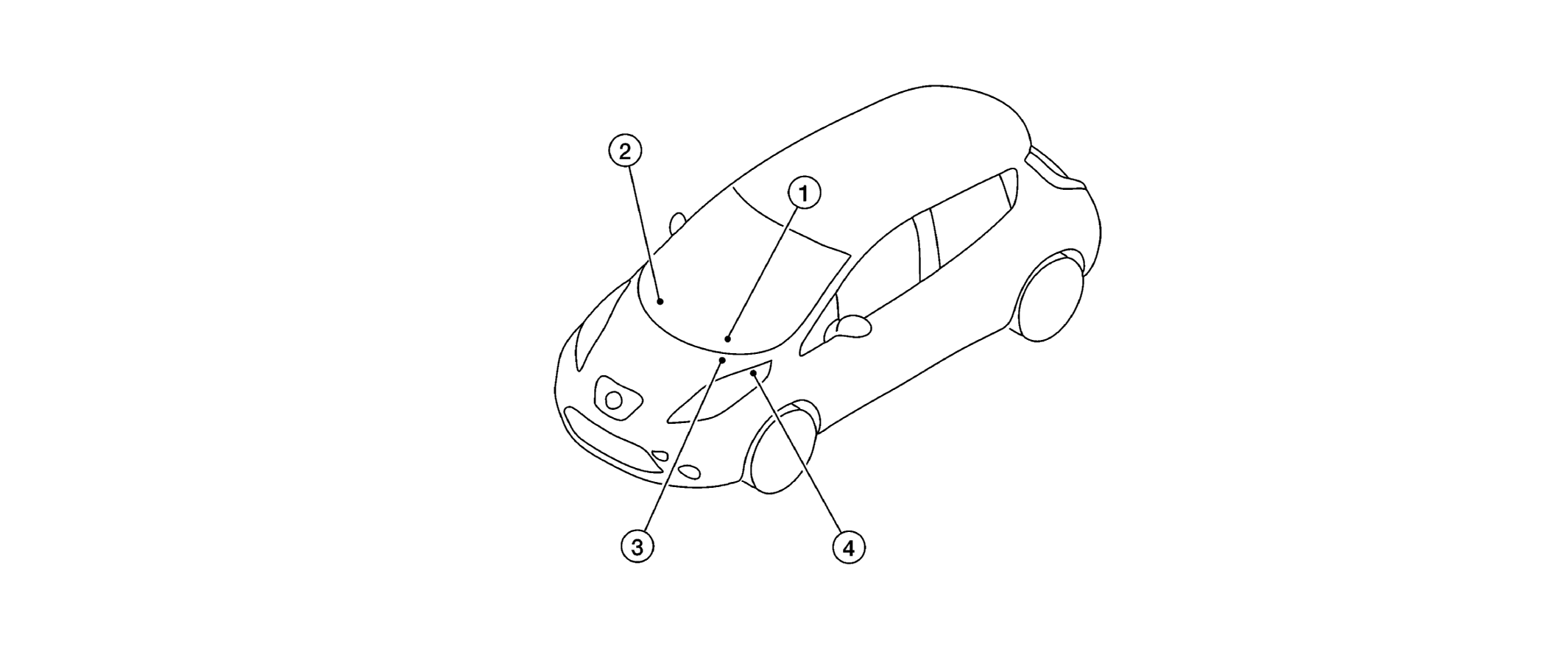

GNSAWMIA1406ZZ-406Courtesy of NISSAN NORTH AMERICA, INC.
1. Combination meter
Refer to COMPONENT LOCATION .		 2. BCM
Refer to COMPONENT LOCATION .		 3. Electrically-driven Intelligent Brake unit
Refer to COMPONENT LOCATION .
4. IPDM E/R
Refer to COMPONENT LOCATION .
