Opera Window
>>

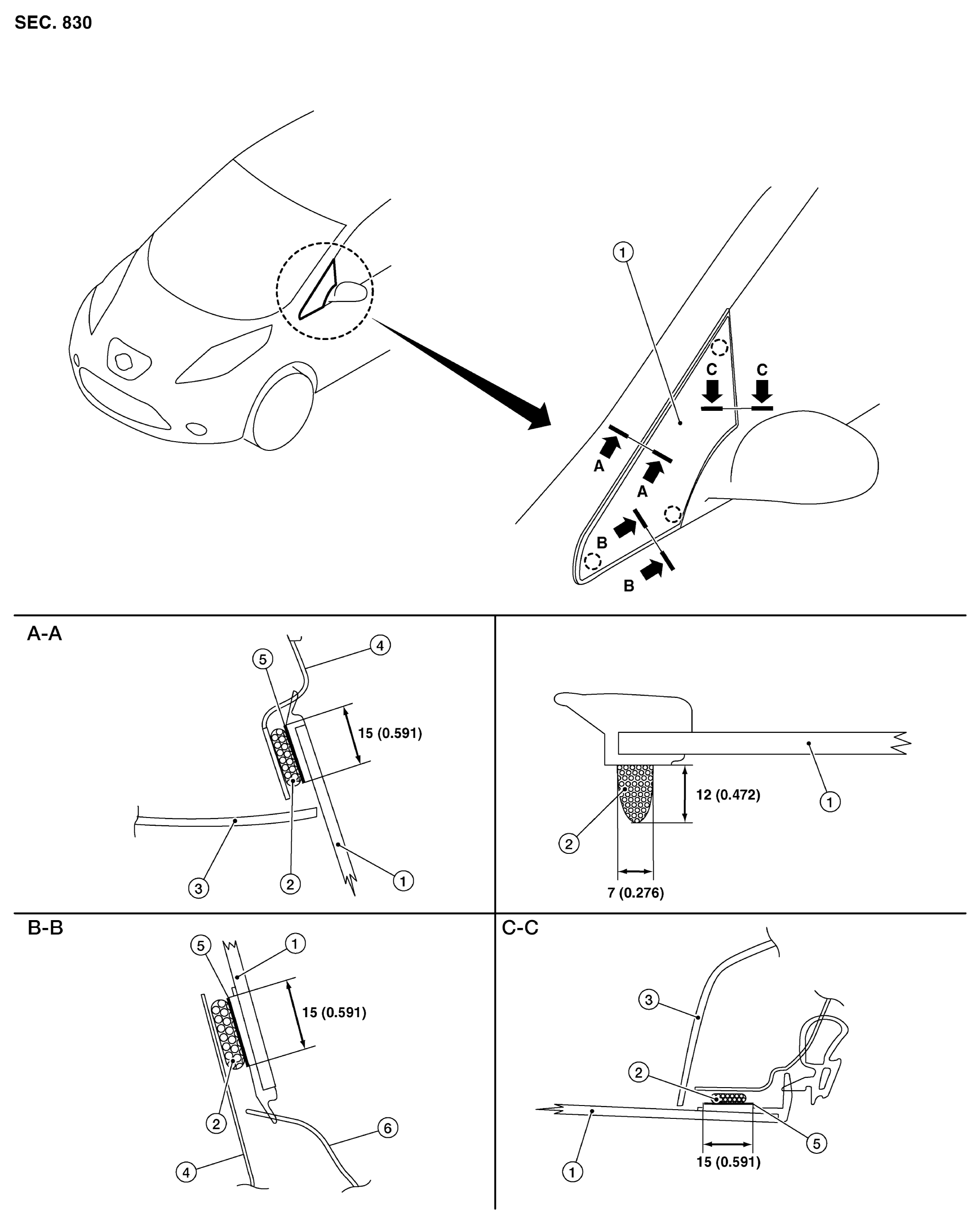

Exploded View With Torque Specifications
Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Unit mm (in)
1.
Opera window glass
2.
Adhesive
3.
Front pillar finisher
4.
Body side outer
5.
Glass primer
6.
Front fender panel
Pawl
Courtesy of NISSAN NORTH AMERICA, INC.
