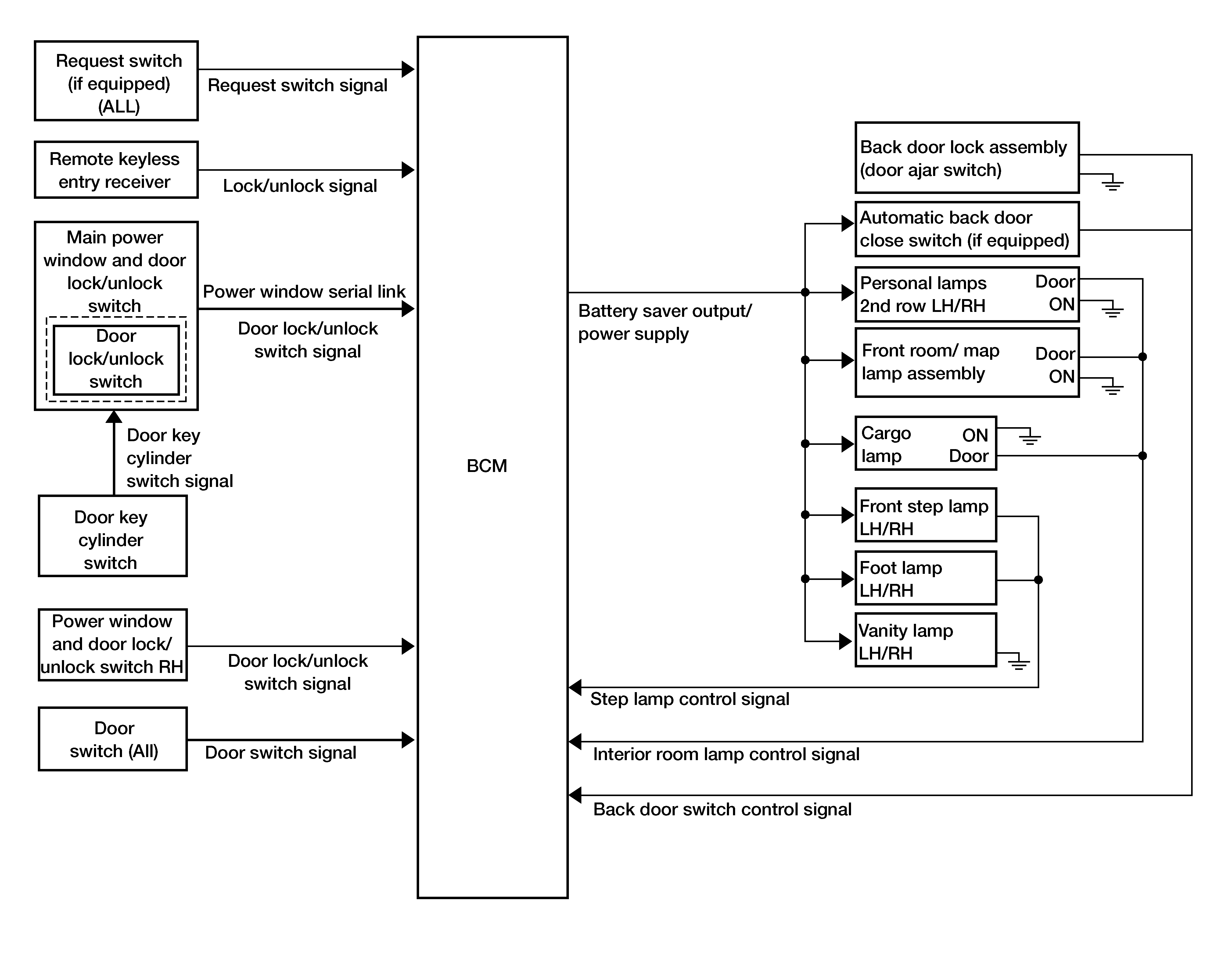

System Diagram

WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
GNSAWLIA2625GB-625Courtesy of NISSAN NORTH AMERICA, INC.
