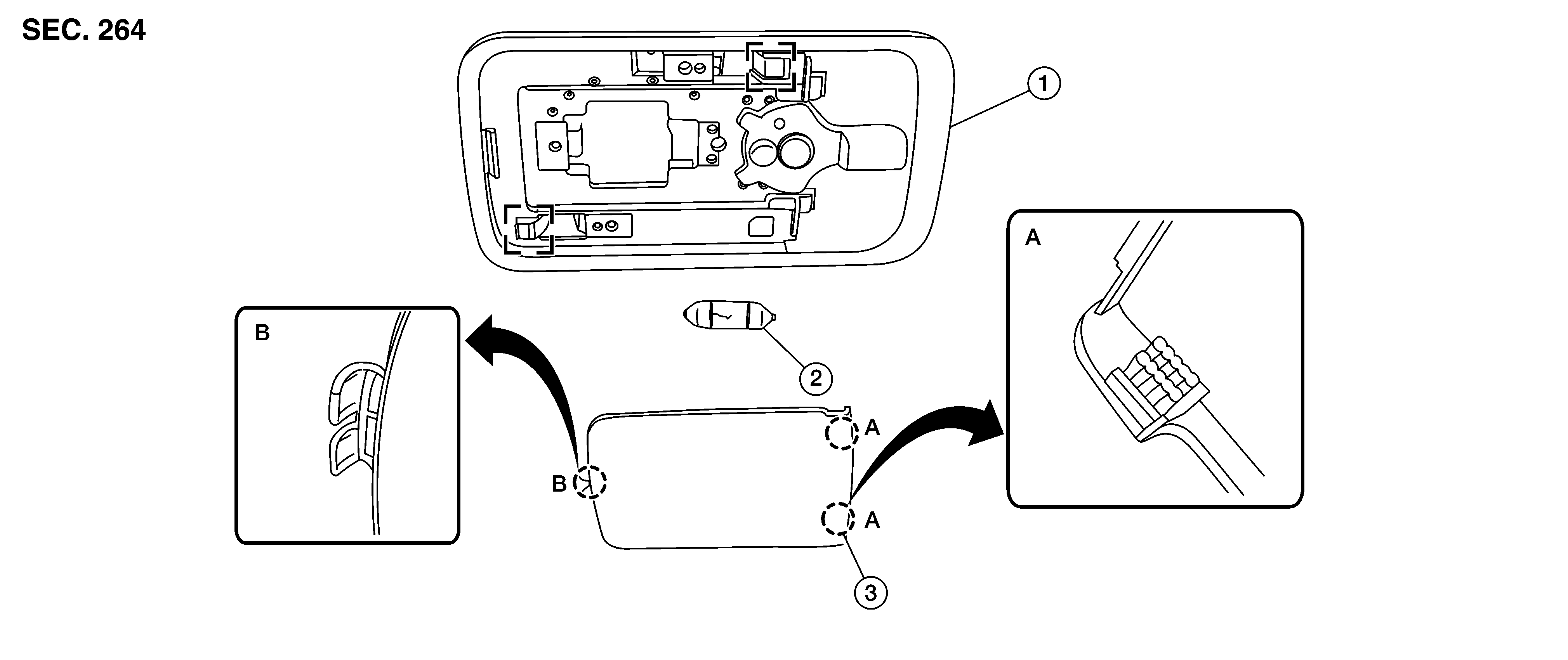

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cargo lamp	2.	Bulb	3.	Lens
A.	Pawls to release first for lens removal	B.	Pawl to install first for lens installation		Pawl
	Metal clip
