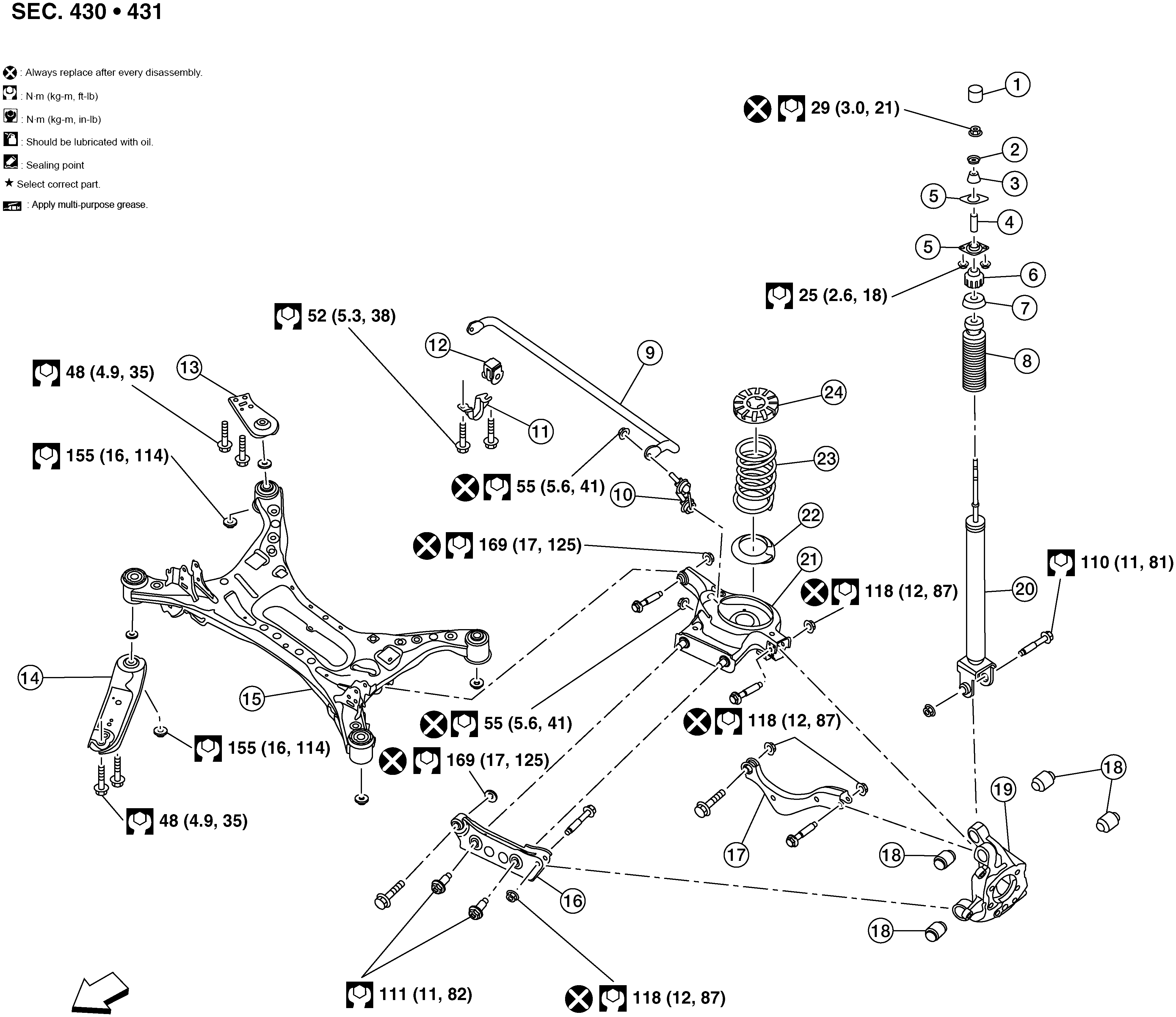

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Cap | 2. | Washer | 3. | Upper shock bushing |
| 4. | Distance tube | 5. | Shock absorber mount bracket | 6. | Lower shock bushing |
| 7. | Bound bumper cover | 8. | Bound bumper | 9. | Stabilizer bar |
| 10. | Connecting rod | 11. | Stabilizer bar clamp | 12. | Stabilizer bar bushing |
| 13. | Rear member stay | 14. | Front member stay | 15. | Rear suspension member |
| 16. | Front lower link | 17 | Suspension arm | 18. | Knuckle bushing |
| 19. | Knuckle | 20. | Shock absorber | 21. | Rear lower link |
| 22. | Lower rubber seat | 23. | Coil spring | 24. | Upper rubber seat |
| Front |
