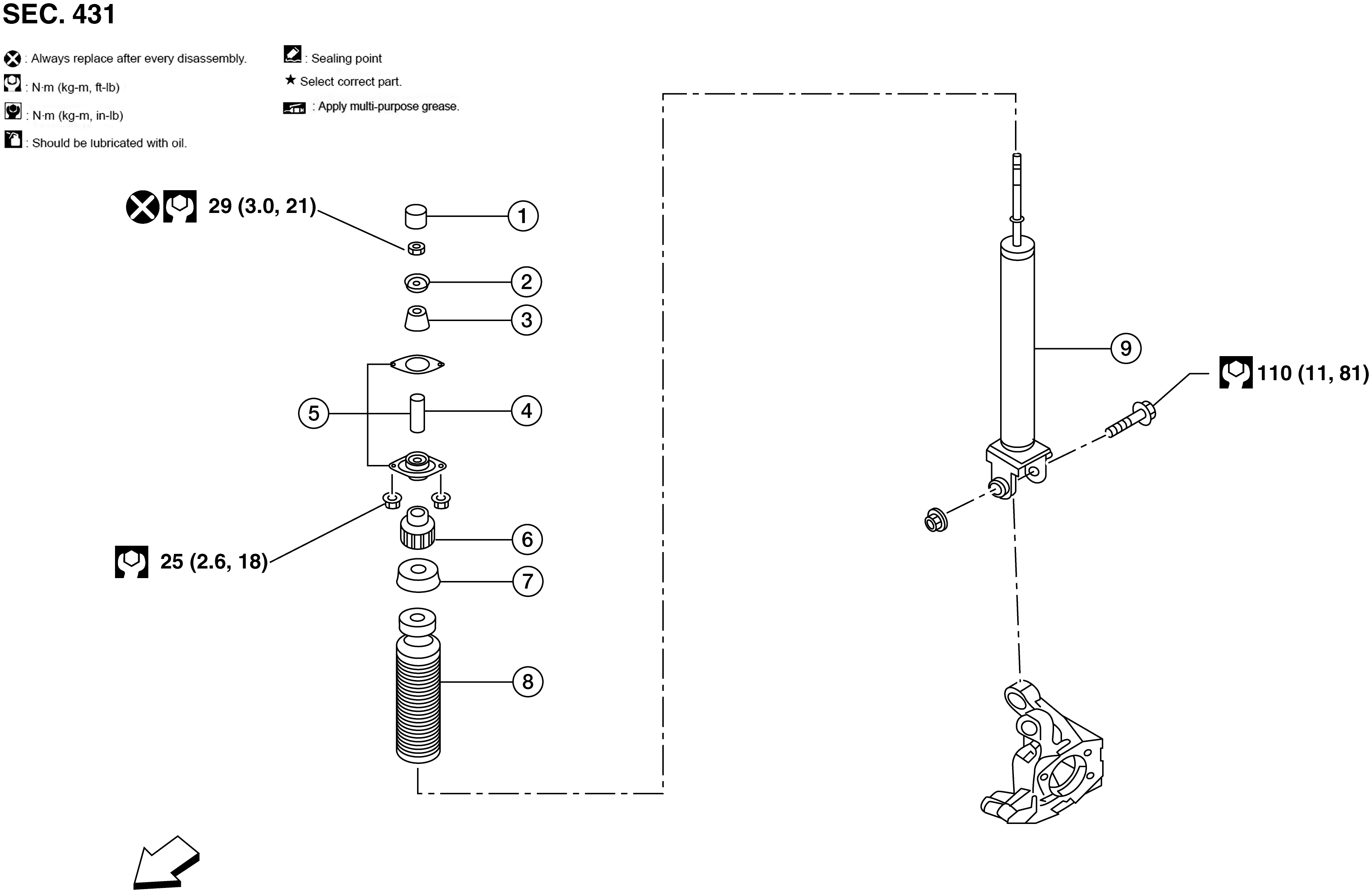

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Cap |
2. |
Washer |
3. |
Upper shock bushing |
| 4. |
Distance tube |
5. |
Shock absorber mount bracket |
6. |
Lower shock bushing |
| 7. |
Bound bumper cover |
8. |
Bound bumper |
9. |
Shock absorber |
 |
Front |
|
|
|
|
