Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

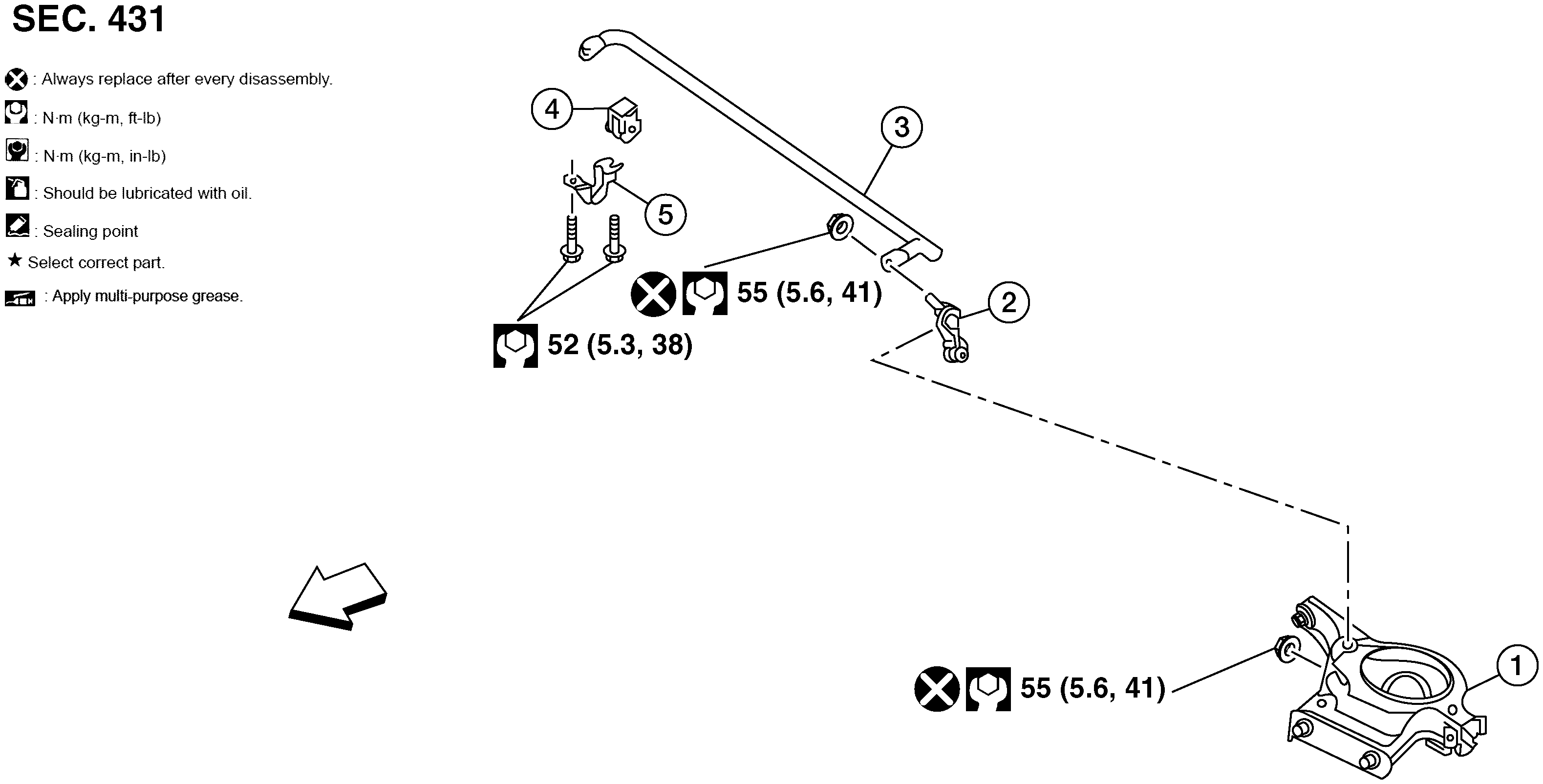

Fig 1: Exploded View Of Rear Stabilizer With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear lower link	2.	Connecting rod	3.	Stabilizer bar
4.	Stabilizer bar bushing	5.	Stabilizer bar clamp		Front
