Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to DESCRIPTION .

  1. Disconnect the negative battery terminal. Refer to REMOVAL AND INSTALLATION .
  2. Remove the combination meter. Refer to REMOVAL AND INSTALLATION .
  3. Remove the BCM screws (A) and pull out the BCM (1).

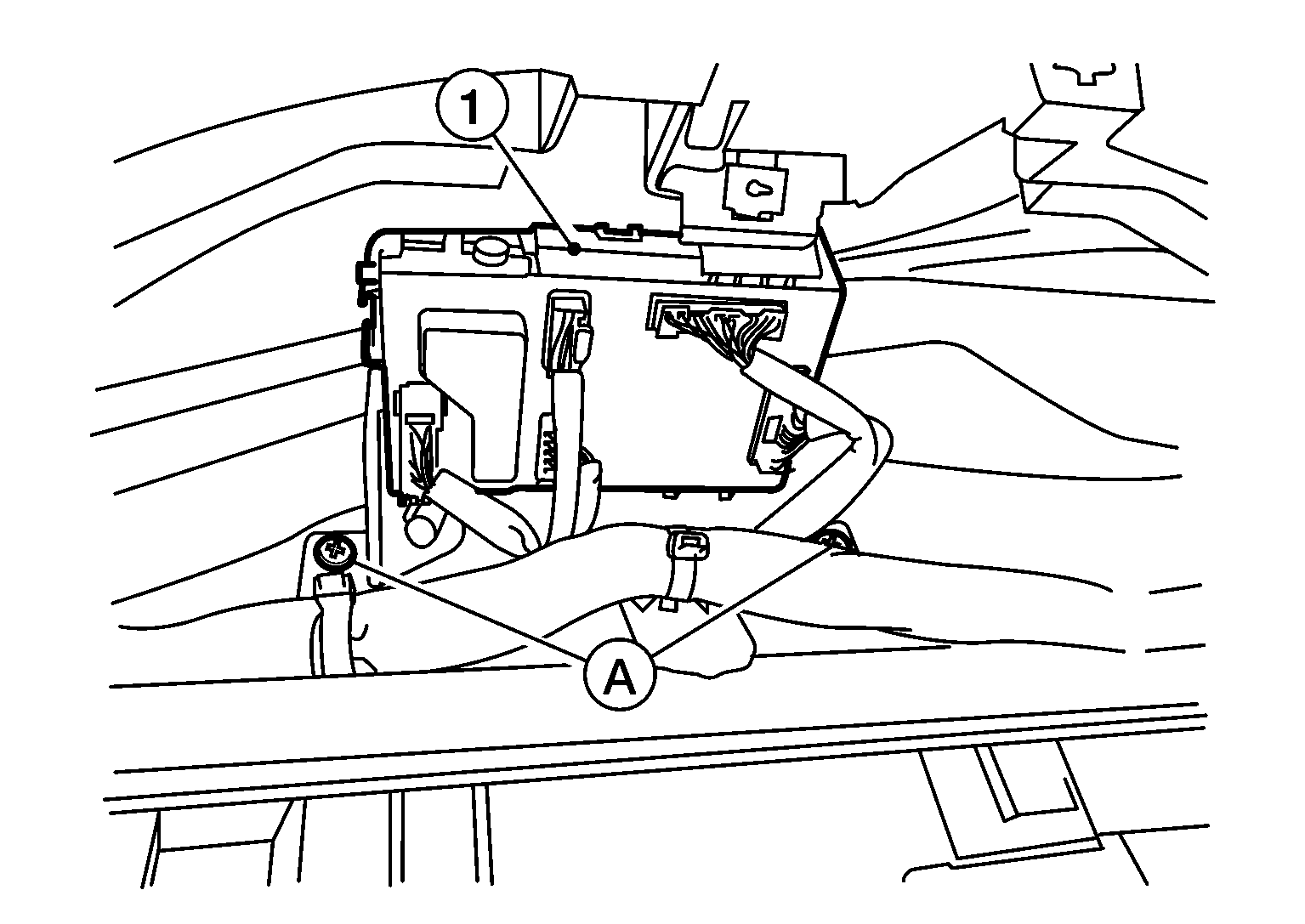

    Fig 1: Locating BCM And Screws
    G08689667Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connectors from the BCM (1) and remove.
