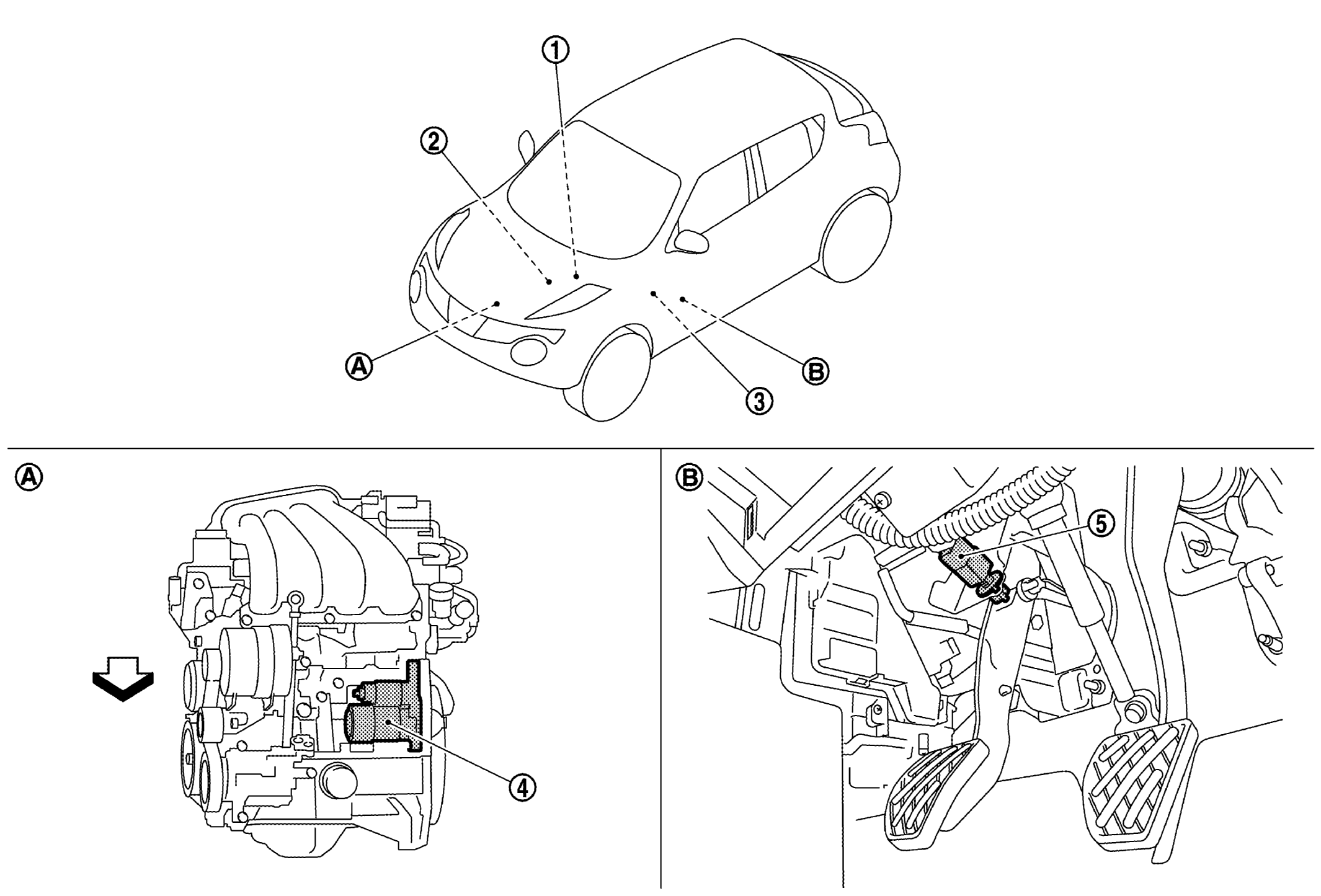

Component Location
| 1. | IPDM E/R Refer to COMPONENT LOCATION . |
2. | Transmission range switch (CVT models) Refer to COMPONENT LOCATION . |
3. | BCM Refer to COMPONENT LOCATION . |
| 4. | Starter motor | 5. | Clutch interlock switch (M/T models) | ||
| A. | Engine | B. | Clutch pedal (M/T models) | ||
| : Vehicle front |
