Exploded View

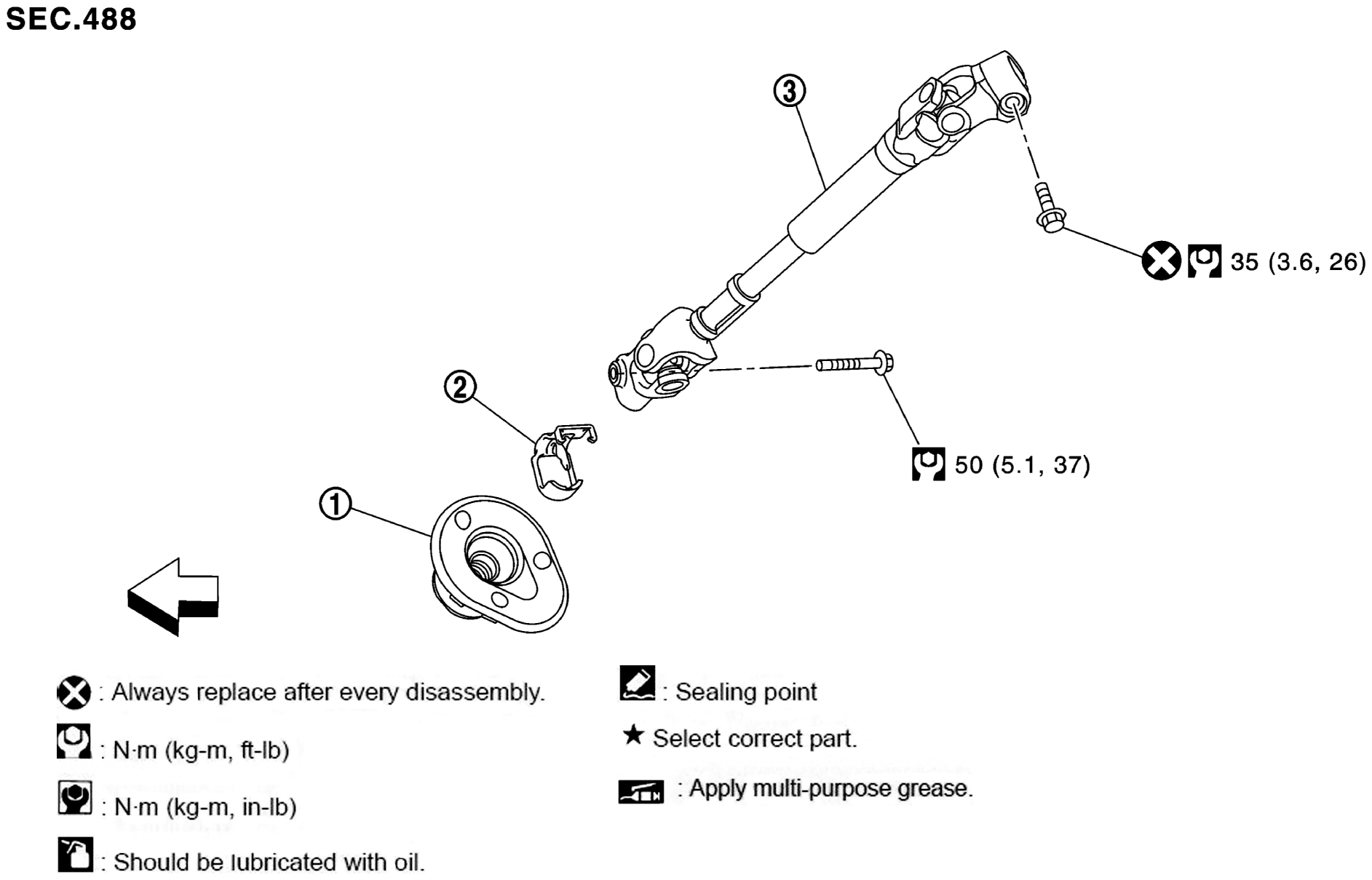

Fig 1: Steering Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Dash seal	2.	Guide^*	3.	Intermediate shaft
: Vehicle front
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
* : If reinstalling, this part is not required.
