Exploded View

Except for NISMO RS (CVT Models) AND NISMO (CVT Models)

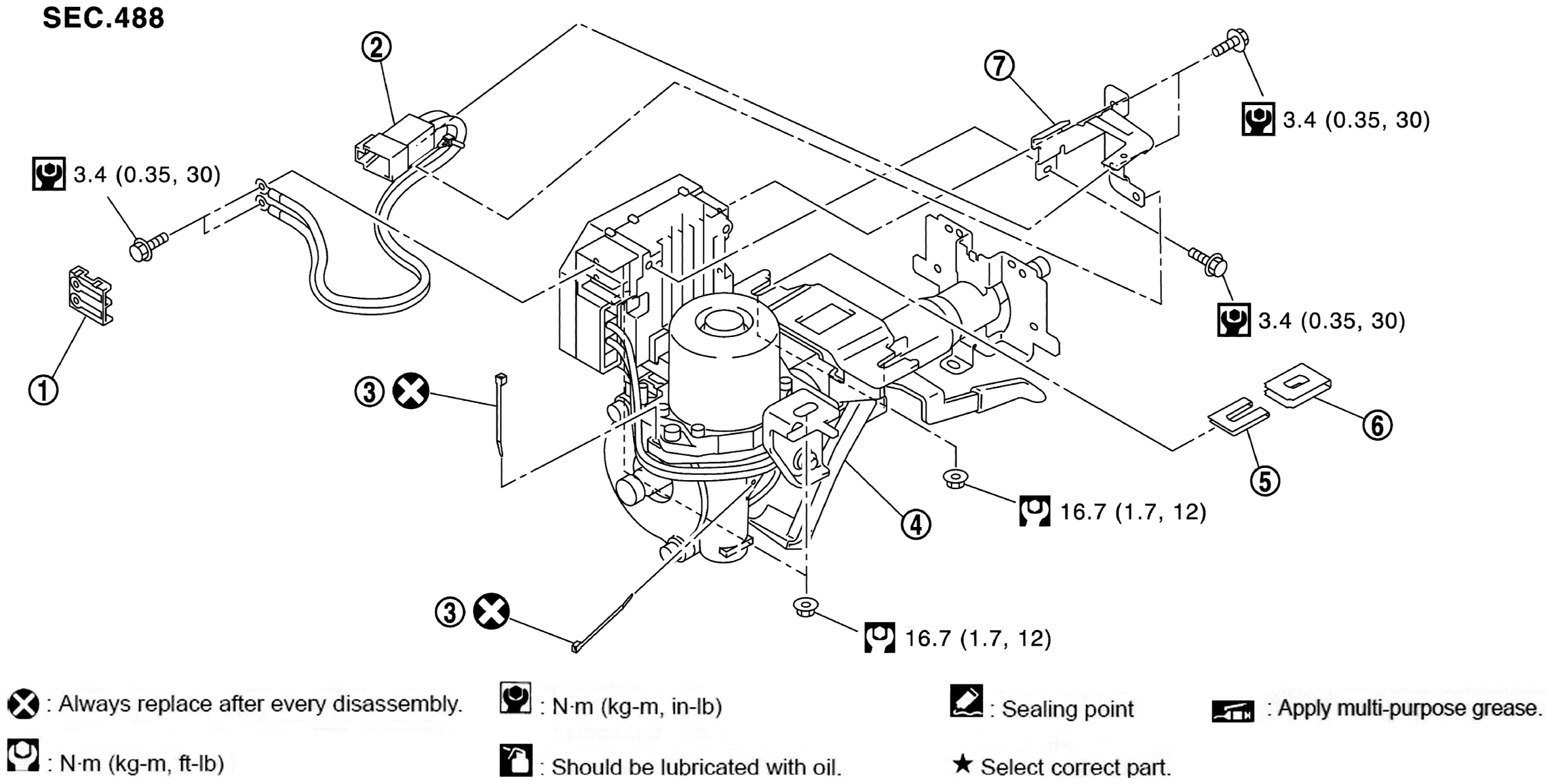

Fig 1: Steering Column Except for NISMO RS (CVT Models) AND NISMO (CVT Models) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cover	2.	Sub-harness	3.	Band
4.	Steering column assembly	5.	Slide plate (inner)	6.	Slide plate (outer)
7.	Bracket
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)

For NISMO RS (CVT Models) AND NISMO (CVT Models)

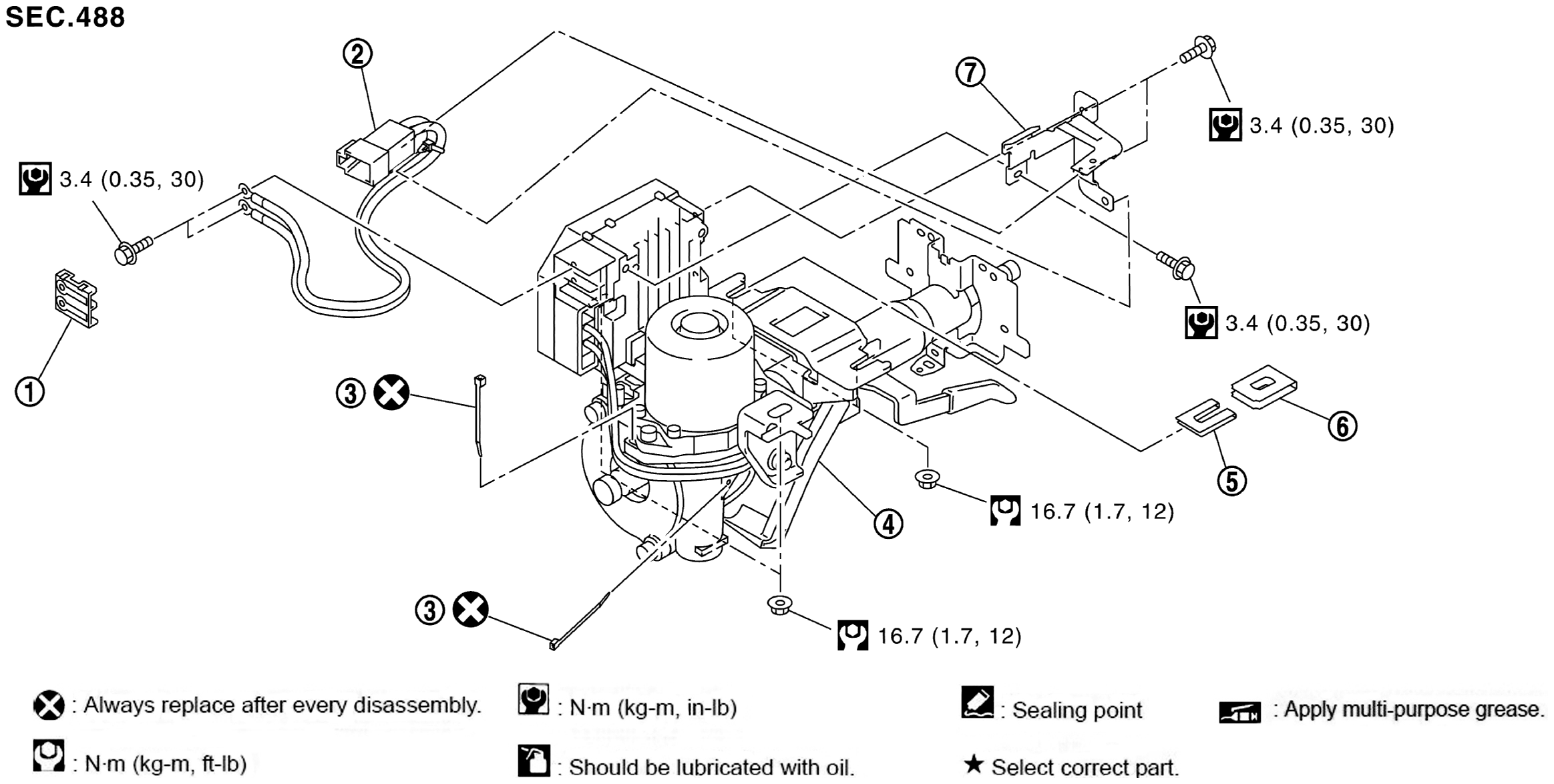

Fig 2: Steering Column For NISMO RS (CVT Models) AND NISMO (CVT Models) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cover	2.	Sub-harness	3.	Band
4.	Steering column assembly	5.	Slide plate (inner)	6.	Slide plate (outer)
7.	Bracket
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
