Exploded View

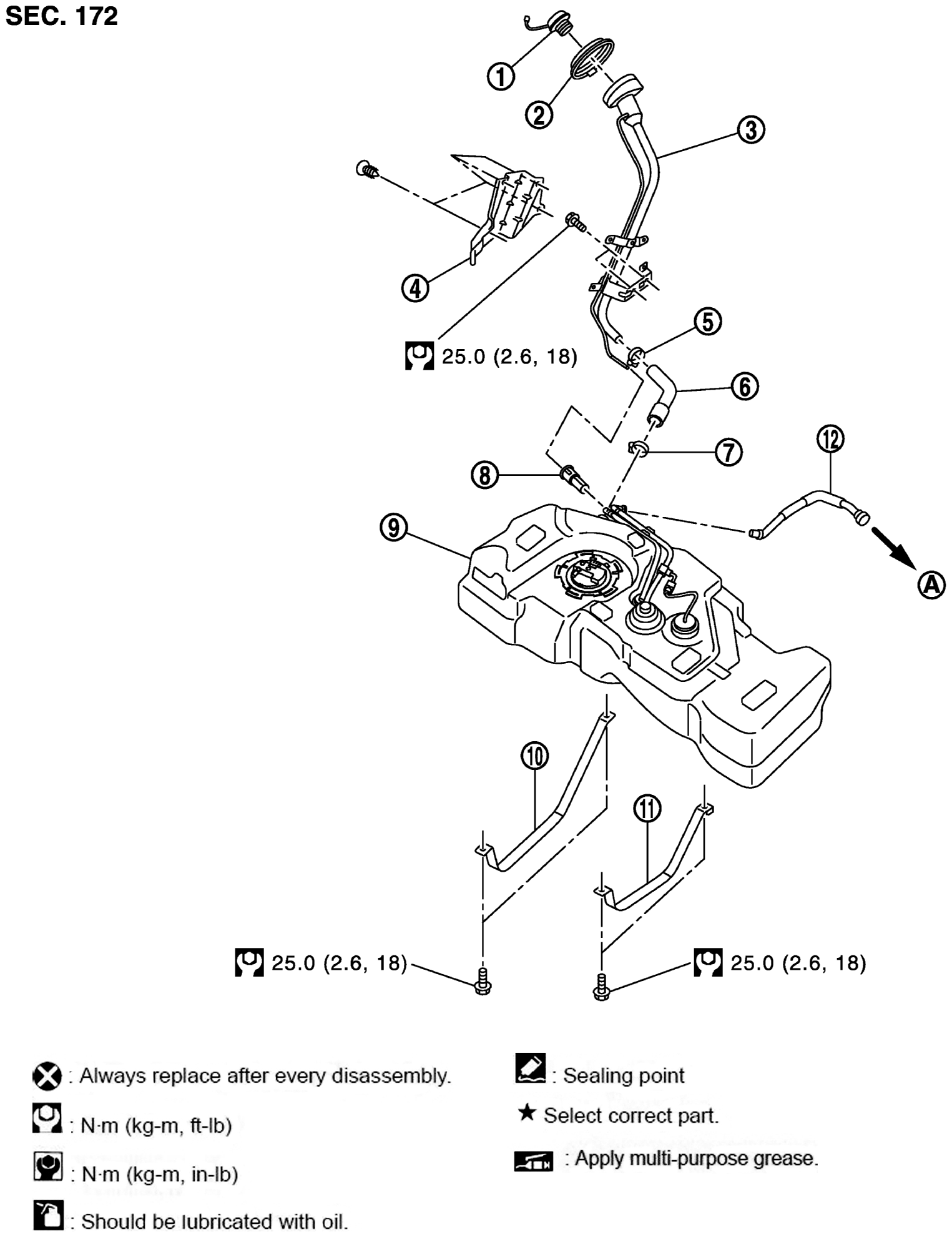

Fig 1: Fuel Tank 2WD With Torque Specifications
GNSJPBIA2894GB-894Courtesy of NISSAN NORTH AMERICA, INC.
1. Fuel filler cap 2. Grommet 3. Fuel filler tube
4. Cover 5. Clamp 6. Fuel filler hose
7. Clamp 8. EVAP canister protector 9. Fuel tank
10. Fuel tank mounting band (RH) 11. Fuel tank mounting band (LH) 12. Vent tube
A. To EVAP canister
BOLT : N•m (kg-m, ft-lb)
