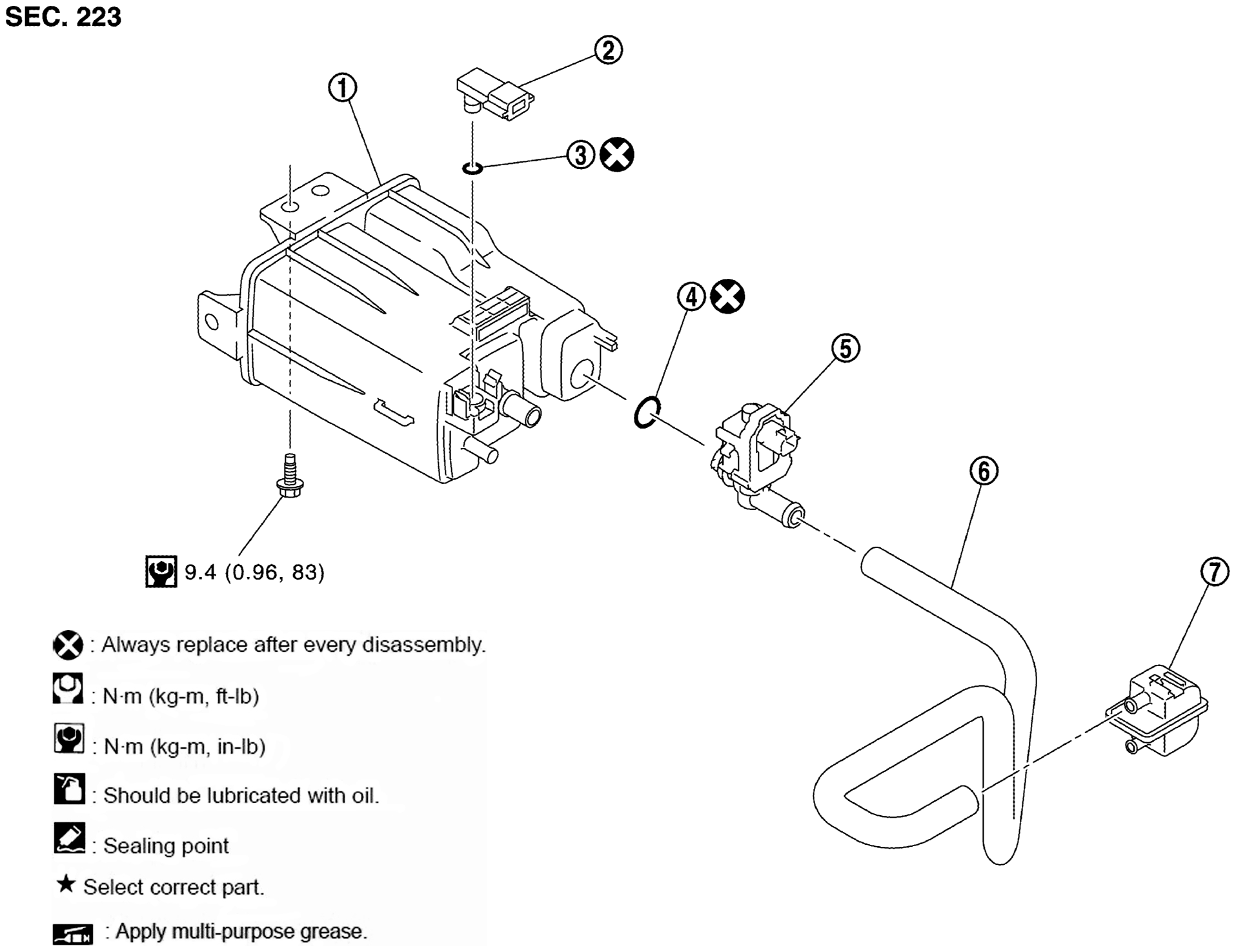

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister	2.	EVAP control pressure sensor	3.	O-ring
4.	O-ring	5.	EVAP canister vent control valve	6.	EVAP canister hose
7.	Canister filter
: N•m (kg-m, in-lb)
: Always replace after every disassembly.
