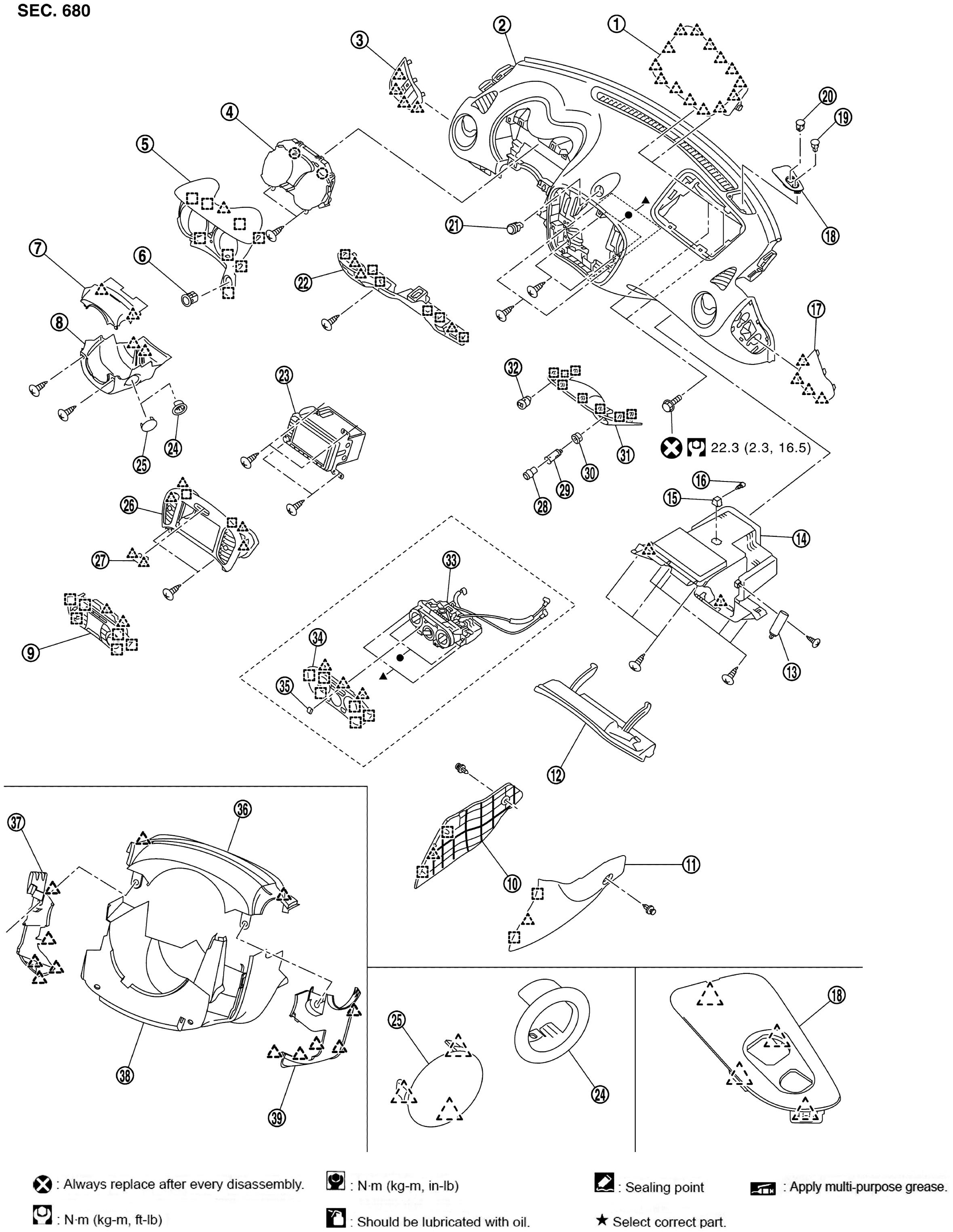

| 1. |
Front passenger air bag module |
2. |
Instrument panel assembly |
3. |
Instrument side finisher LH |
| 4. |
Combination meter |
5. |
Cluster lid A |
6. |
Push-button ignition switch |
| 7. |
Steering column upper cover (without paddle shifter) |
8. |
Steering column lower cover (without paddle shifter) |
9. |
Multi display unit |
| 10. |
Instrument lower cover LH |
11. |
Instrument lower cover RH |
12. |
Glove box lid |
| 13. |
Glove box dumper |
14. |
Glove box assembly |
15. |
Illumination lamp |
| 16. |
Socket and bulb |
17. |
Instrument side finisher RH |
18. |
Switch panel |
| 19. |
Sunload sensor |
20. |
Optical sensor |
21. |
Hazard switch |
| 22. |
Instrument lower panel LH |
23. |
Audio unit or AV C/U |
24. |
Steering lock escutcheon (without Intelligent Key) |
| 25. |
Steering column mask (with Intelligent Key) |
26. |
Cluster lid C |
27. |
Warning lamp |
| 28. |
Socket knob |
29. |
Inner socket |
30. |
Socket ring |
| 31. |
Cluster tray |
32. |
USB connector |
33. |
A/C controller (manual A/C) |
| 34. |
A/C finisher (manual A/C) |
35. |
Knob |
36. |
Steering column upper cover (with paddle shifter) |
| 37. |
Steering column LH cover (with paddle shifter) |
38. |
Steering column lower cover (with paddle shifter) |
39. |
Steering column RH cover (with paddle shifter) |
 |
: Clip |
 |
: Pawl |
 |
: Metal clip |
 |
: Always replace after every disassembly. |
 |
: N•m (kg-m, ft-lb) |
,
: Indicates that the part is connected at points with same symbol in actual vehicle. |
