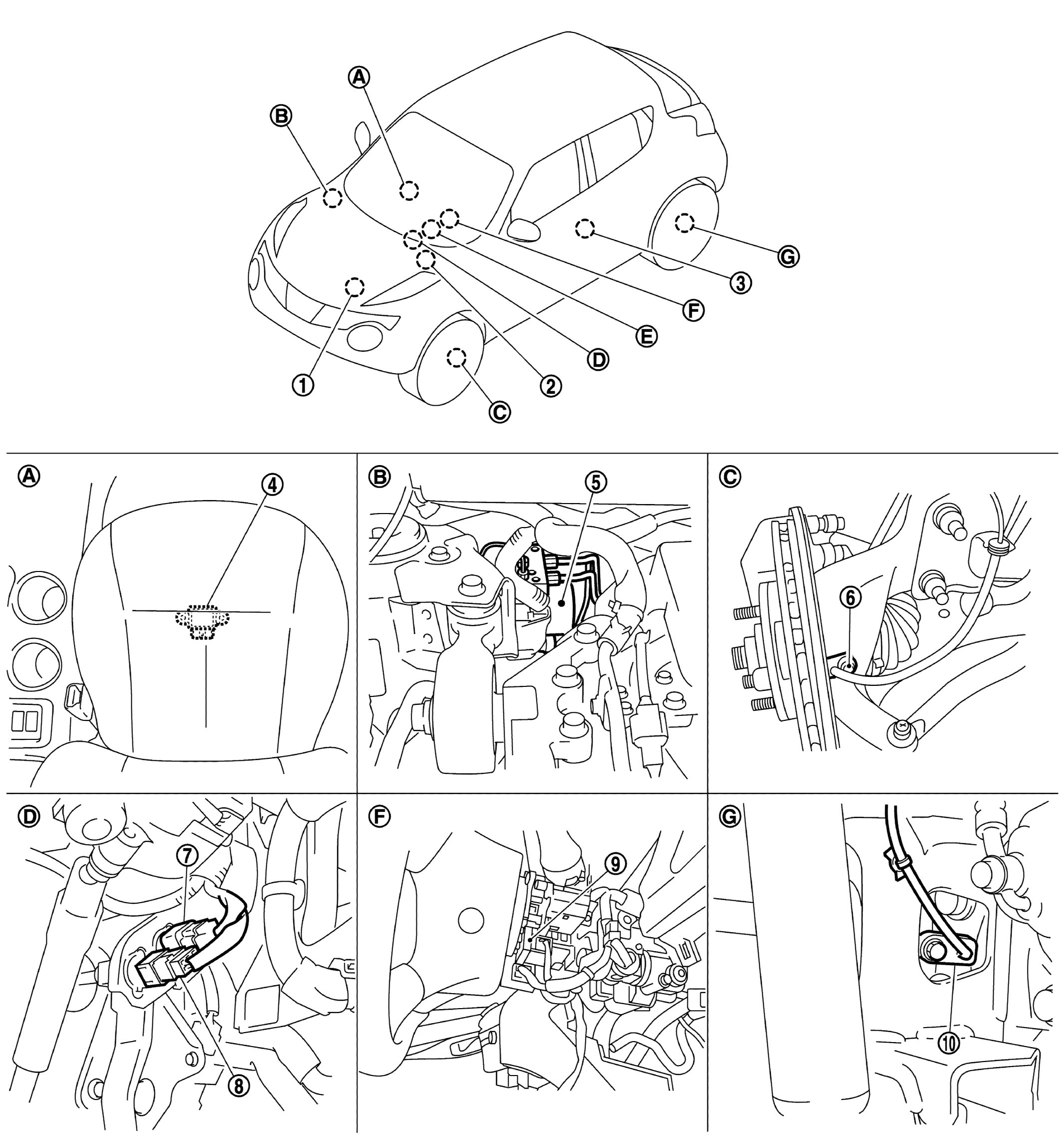

Component Location: AWD
| 1. | ECM Refer to COMPONENT LOCATION . |
2. | TCM Refer to COMPONENT LOCATION . |
3. | AWD control module Refer to COMPONENT LOCATION . |
| 4. | Yaw rate/side/decel G sensor | 5. | ABS actuator and electric unit (control unit) | 6. | Front wheel sensor |
| 7. | Stop lamp switch | 8. | Brake pedal position switch | 9. | Steering angle sensor |
| 10. | Rear wheel sensor | ||||
| A. | Under floor carpet (front seat right side) | B. | Inside engine room | C. | Steering knuckle |
| D. | Brake pedal | E. | ABS warning lamp, brake warning lamp, VDC warning lamp, VDC OFF indicator lamp (in combination meter) | F. | Back of spiral cable assembly |
| G. | Rear axle housing |
