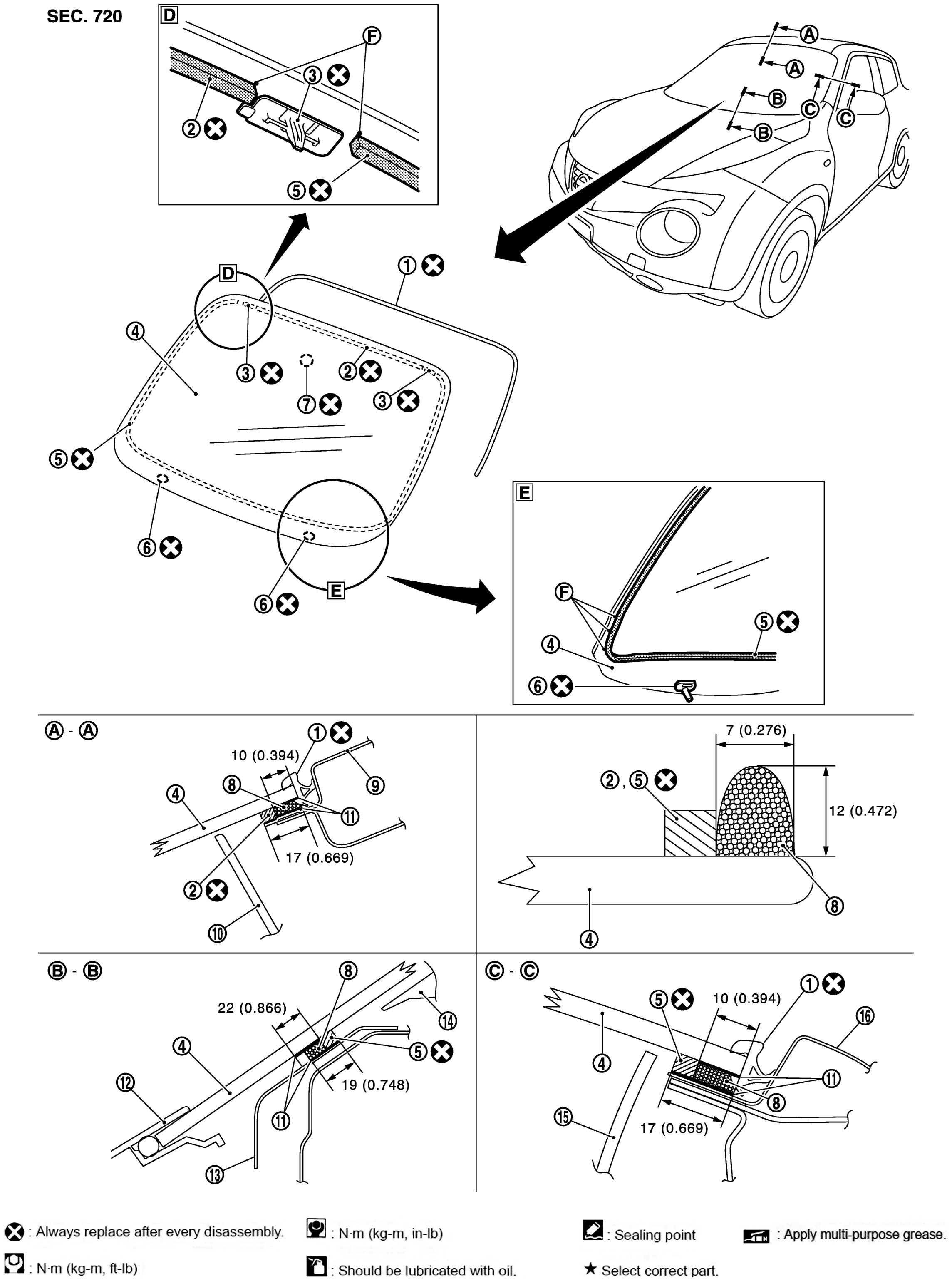

Exploded View With Torque Specifications
| 1. | Windshield glass molding | 2. | Dam rubber (upper) | 3. | Upper clip |
| 4. | Windshield glass | 5. | Dam rubber (lower) | 6. | Lower clip |
| 7. | Mirror base | 8. | Adhesive | 9. | Roof panel |
| 10. | Headlining assembly | 11. | Primer | 12. | Cowl top cover |
| 13. | Cowl top panel | 14. | Instrument panel assembly | 15. | Front pillar finisher |
| 16. | Body side outer panel | ||||
| F | : Black print mark | ||||
| Unit | : mm (in) | ||||
| : Always replace after every disassembly. | |||||
