Exploded View With Torque Specifications

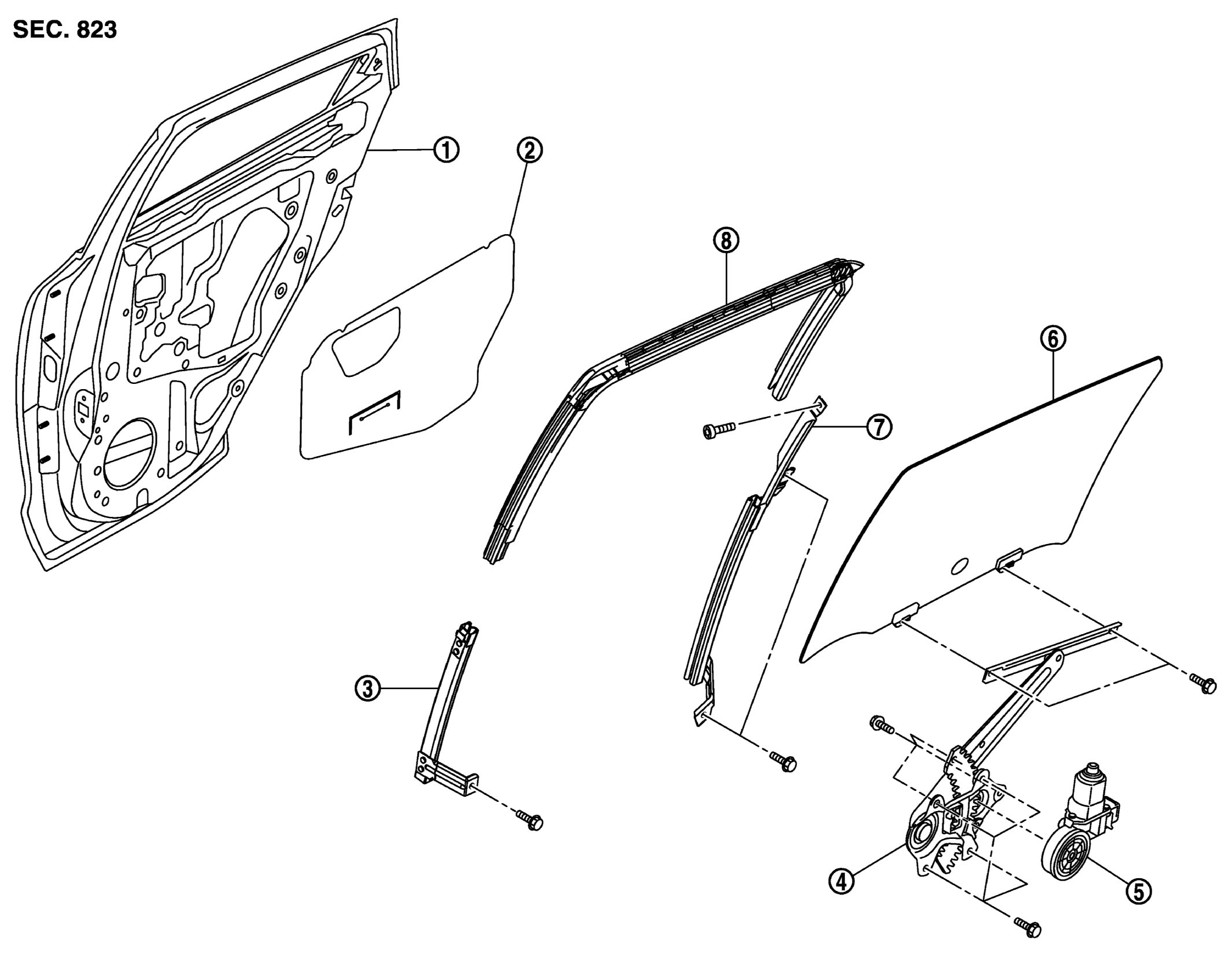

GNSJMKIA5590ZZ-590Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear door panel 2. Sealing screen 3. Lower sash (front)
4. Rear door regulator assembly 5. Power window motor 6. Rear door glass
7. Lower sash (rear) 8. Rear door glass run
