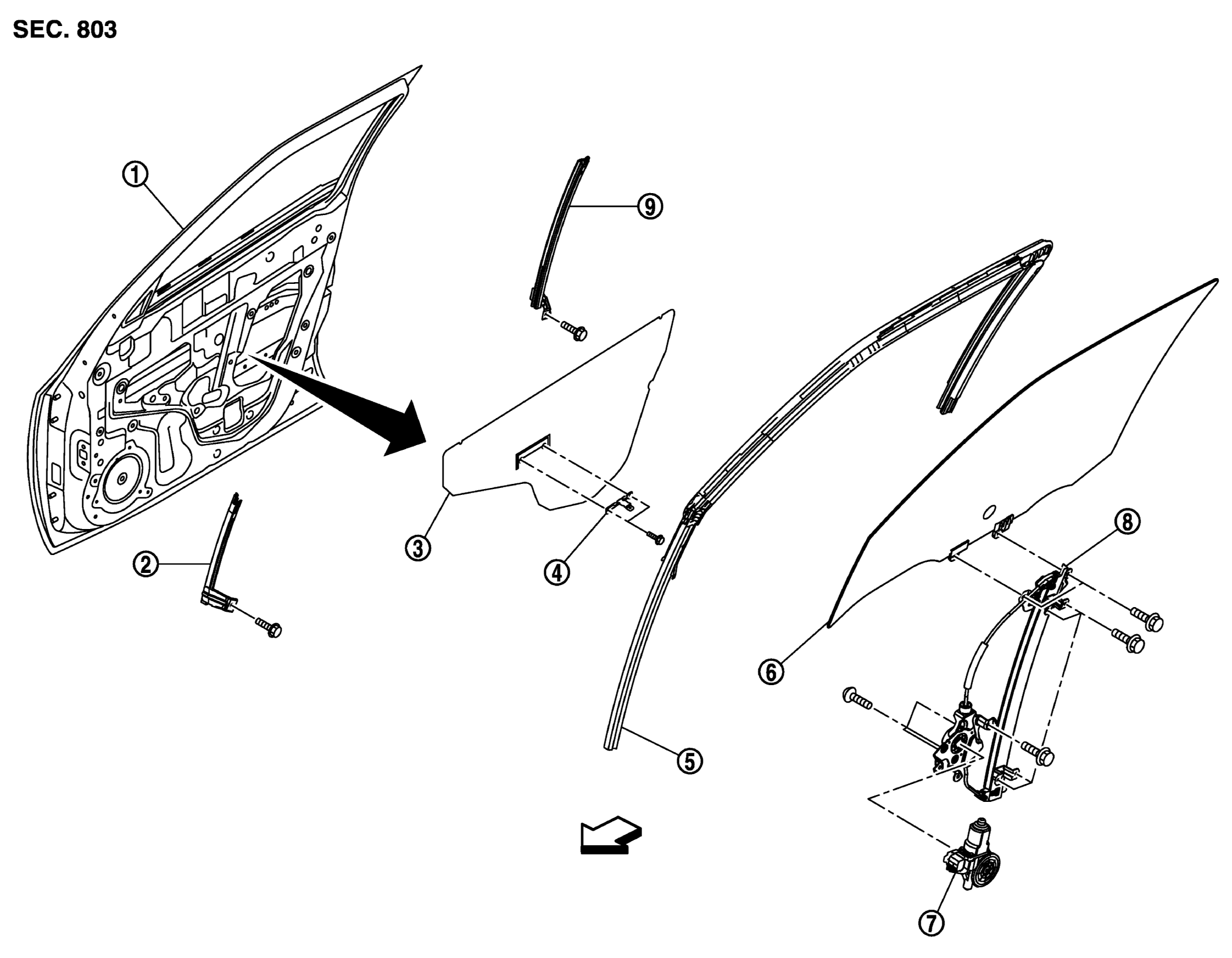

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front door panel	2.	Lower sash (front)	3.	Sealing screen
4.	Pull handle bracket	5.	Front door glass run	6.	Front door glass
7.	Power window motor	8.	Front door regulator assembly	9.	Lower sash (rear)
	: Vehicle front
