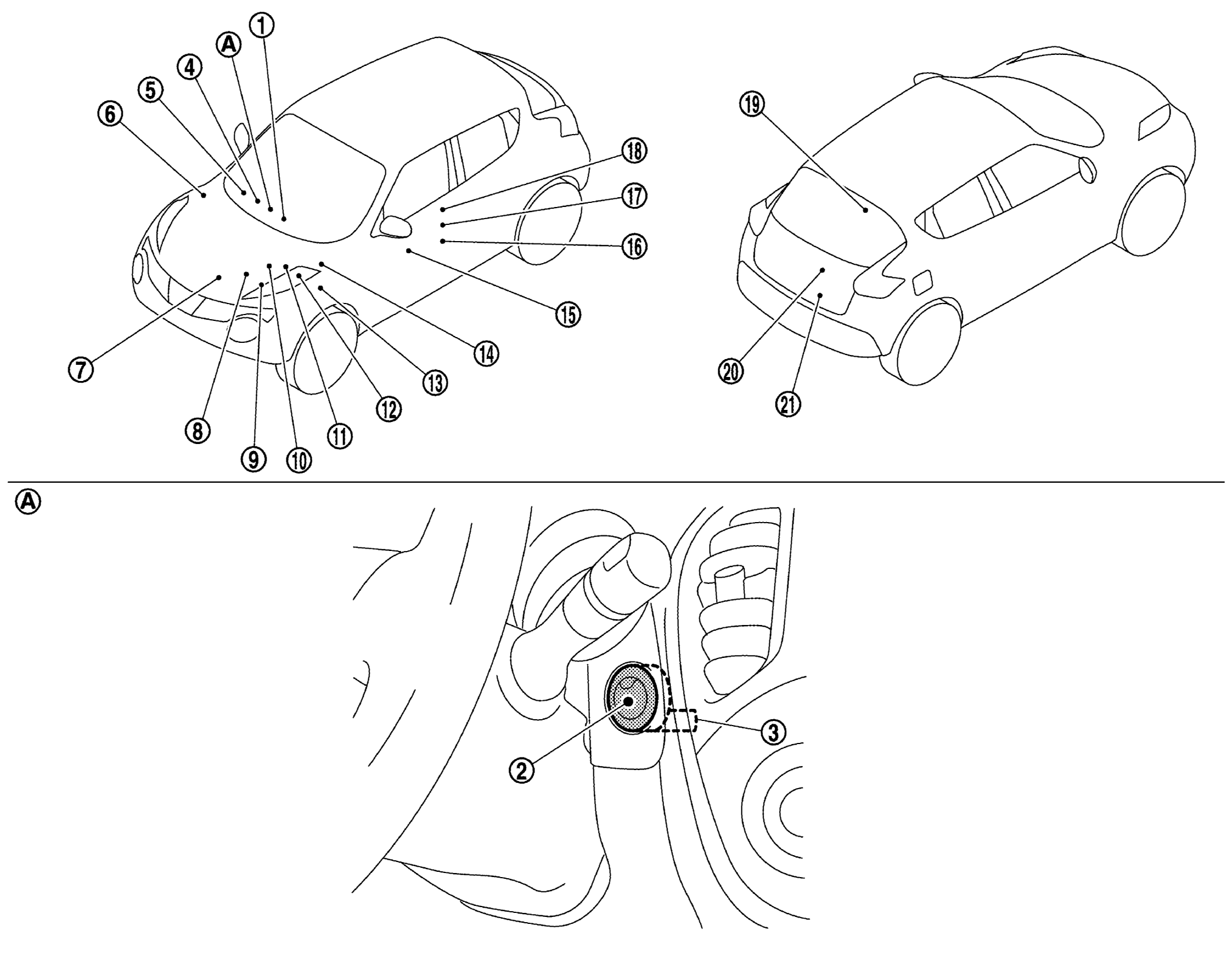

Component Location
| 1. | Combination meter Refer to COMPONENT LOCATION . |
2. | Push-button ignition switch | 3. | NATS antenna amp. |
| 4. | Inside key antenna (instrument center) Refer to COMPONENT LOCATION . |
5. | Remote keyless entry receiver Refer to COMPONENT LOCATION . |
6. | ABS actuator and electric unit (control unit) Refer to COMPONENT LOCATION . |
| 7. | Park/neutral position switch (M/T models) Refer to COMPONENT LOCATION . |
8. | Transmission range switch (CVT models) Refer to COMPONENT LOCATION . |
9. | ECM Refer to COMPONENT LOCATION . |
| 10. | IPDM E/R Refer to COMPONENT LOCATION . |
11. | TCM (CVT models) Refer to COMPONENT LOCATION . |
12. | Stop lamp switch Refer to COMPONENT LOCATION . |
| 13. | Clutch interlock switch (M/T models) Refer to COMPONENT LOCATION . |
14. | BCM Refer to COMPONENT LOCATION . |
15. | Power window main switch (door lock and unlock switch) |
| 16. | Front door switch (driver side) | 17. | Front door lock assembly (door key cylinder switch) | 18. | Front door request switch (driver side) |
| 19. | Inside key antenna (luggage room) Refer to COMPONENT LOCATION . |
20. | Back door request switch | 21. | Back door opener assembly (back door switch) |
| A. | Behind push-button ignition switch |
