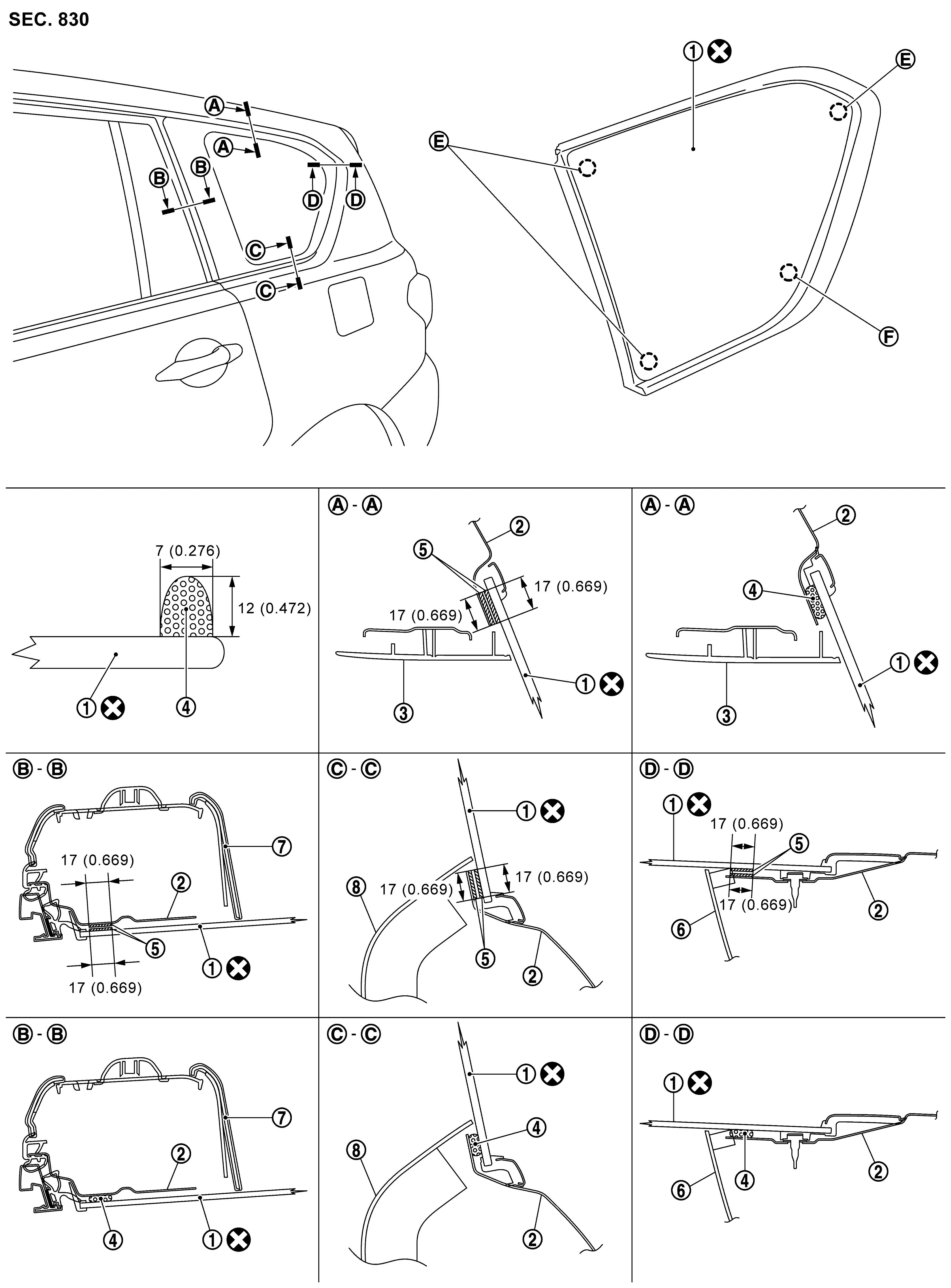

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Side window glass	2.	Body side outer panel	3.	Luggage side upper finisher
4.	Adhesive	5.	Primer	6.	Back pillar garnish
7.	Rear pillar finisher	8.	Luggage side lower finisher
E.	Clip
F.	Clip (If equipped)
	: Always replace after every disassembly.
Unit	: mm (in)
