Latch System For Children
>>
Exploded View
Exploded View

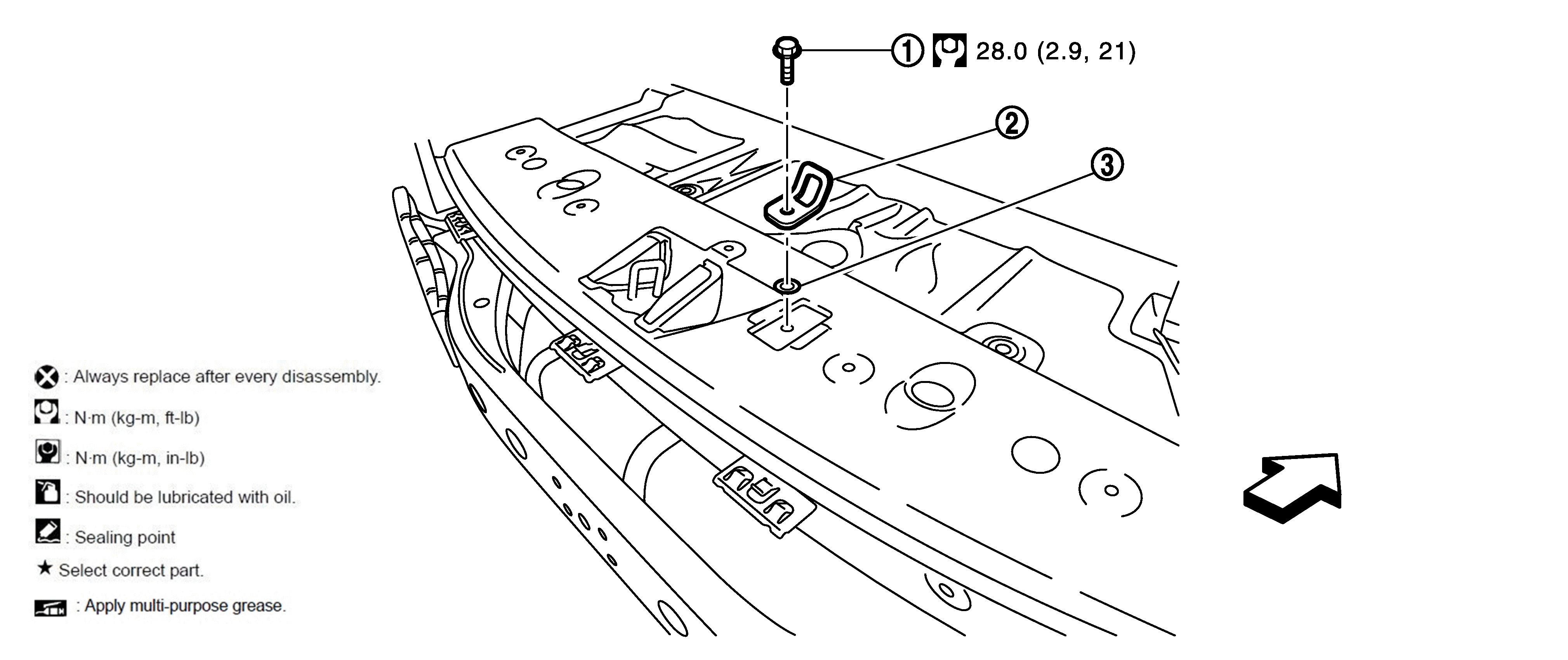

Fig 1: LATCH SYSTEM With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Anchor bolt
2.
Anchor plate
3.
Retaining washer
: Vehicle front
: N•m (kg - m, ft - lb)
Courtesy of NISSAN NORTH AMERICA, INC.
