Exploded View

WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

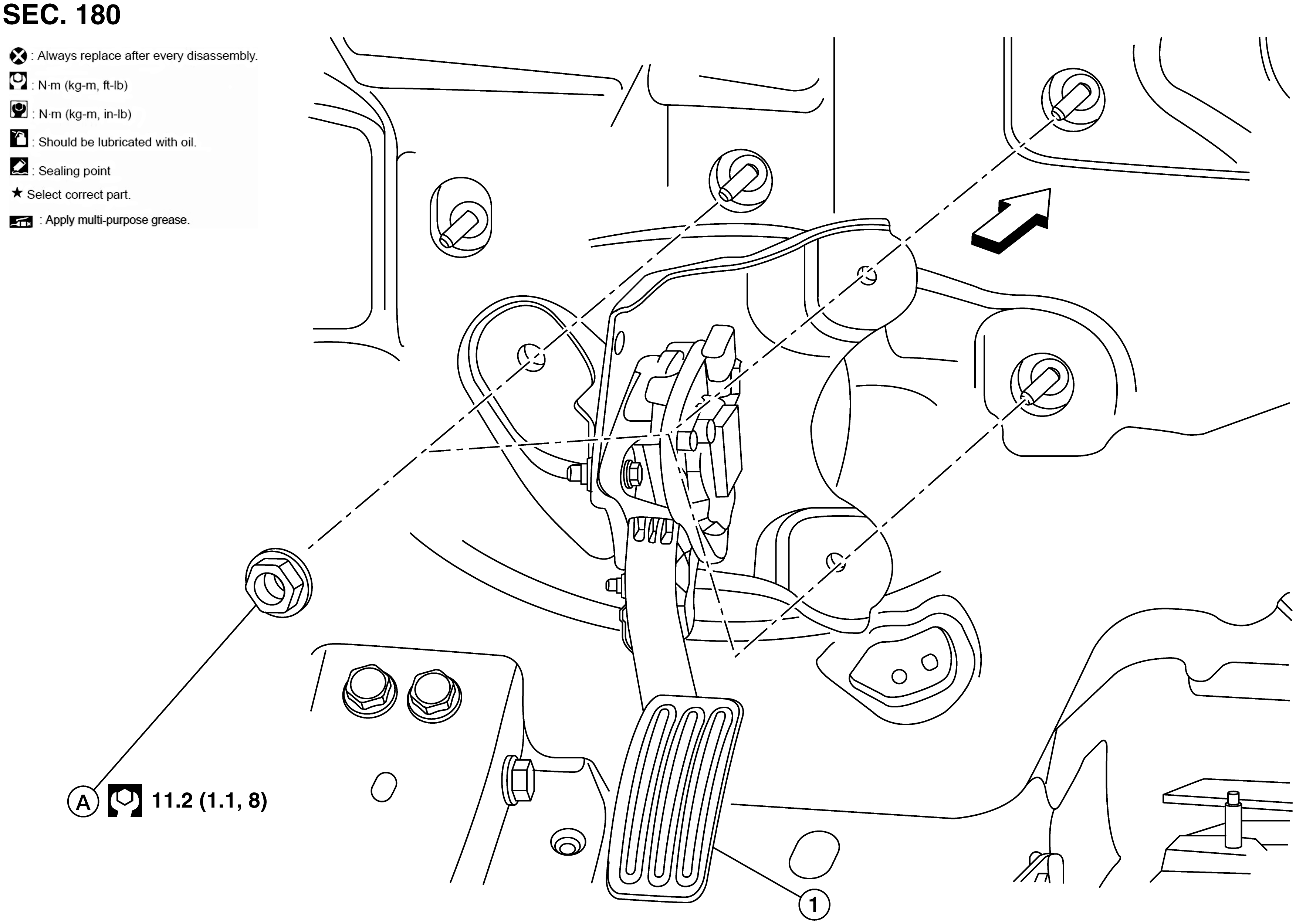

Fig 1: Accelerator Pedal Assembly With Torque Specifications
GNSALBIA0775GB-775Courtesy of NISSAN NORTH AMERICA, INC.
1. Accelerator pedal assembly A. Nut ARROW Front
