Exploded View

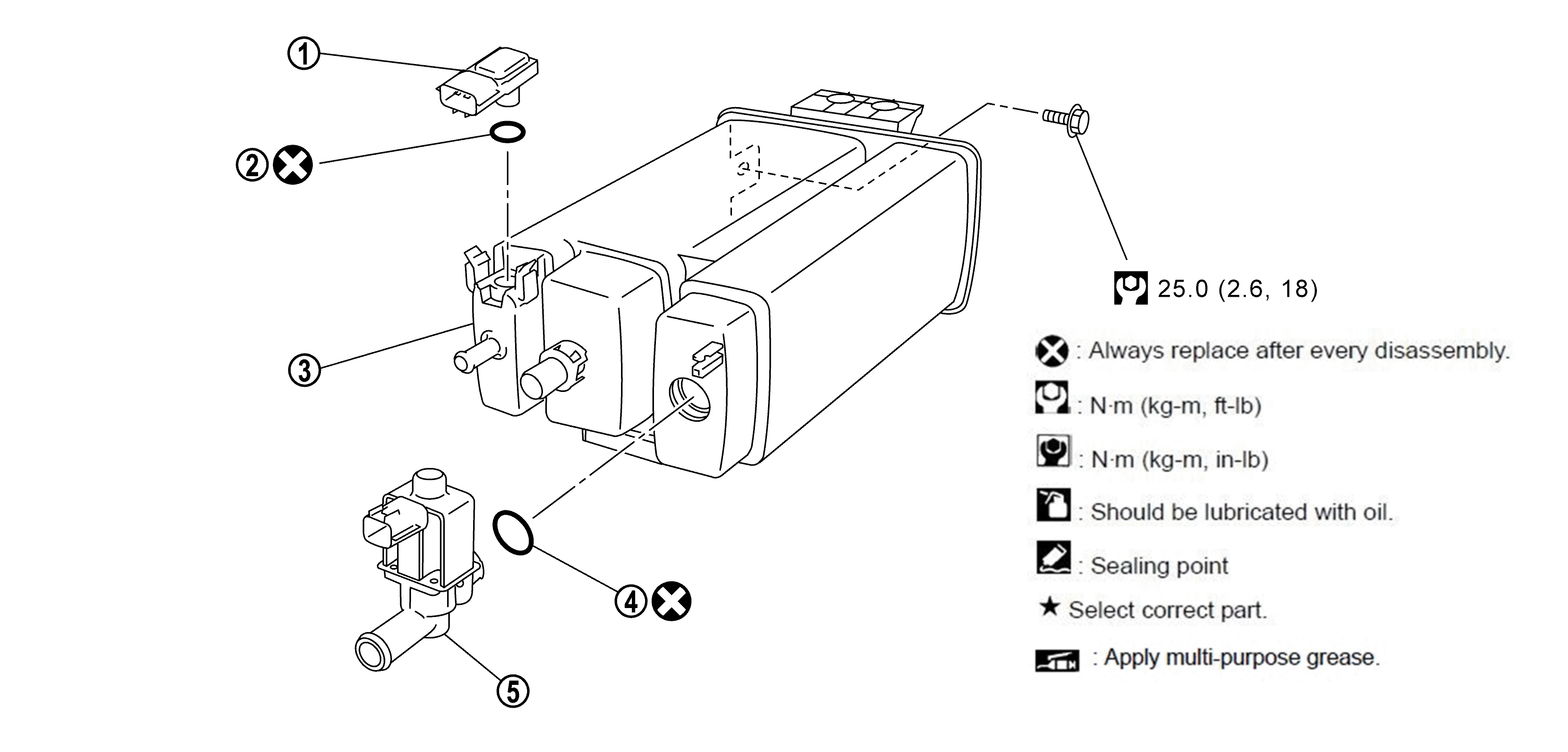

Fig 1: EVAP CANISTER With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP control system pressure sensor	2.	O-ring	3.	EVAP canister
4.	O-ring	5.	EVAP canister vent control valve
	: Always replace after every disassembly.
