Exploded View

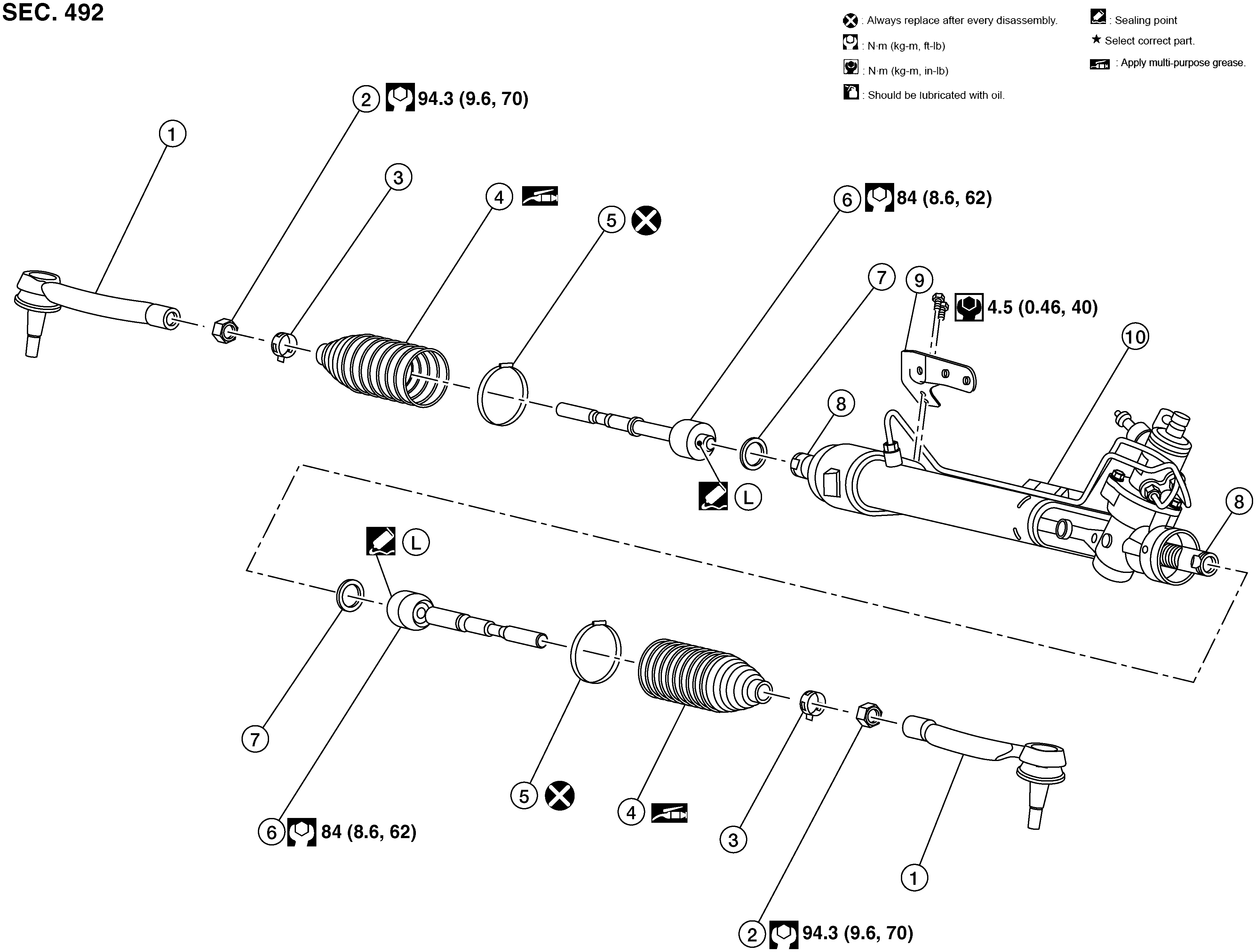

Fig 1: STEERING GEAR AND LINKAGE With Torque Specifications
GNSALGIA0201ZZ-201Courtesy of NISSAN NORTH AMERICA, INC.
1. Outer socket 2. Inner socket lock nut 3. Small boot clamp
4. Boot 5. Large boot clamp 6. Inner socket
7. Spacer 8. Rack bar (not serviceable) 9. Bracket
10. Steering gear
