Component Location
WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

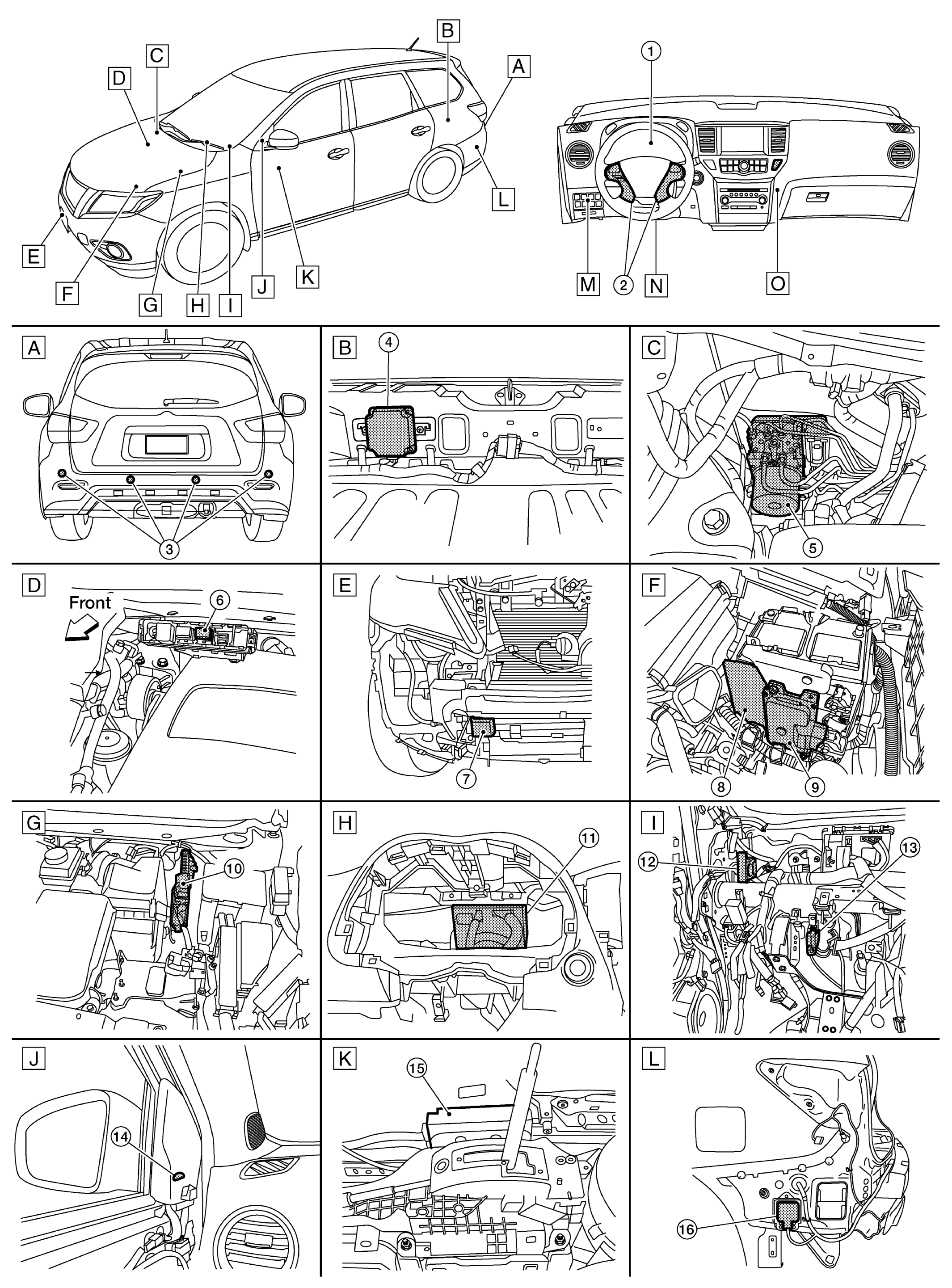

| A. | Rear view of vehicle | B. | Rear storage area (view with storage box removed) | C. | Engine room right side |
| D. | Engine room right side (Inside fuse and relay box) |
E. | Front bumper RH | F. | Engine room left side |
| G. | Engine room left side | H. | Instrument panel left side (view with combination meter removed) | I. | Left side of instrument panel (view with instrument panel assembly removed |
| J. | Left front door (view with driver door finisher removed) | K. | Center console (view with center console assembly removed) | L. | Left rear bumper area (view with rear bumper fascia removed) |

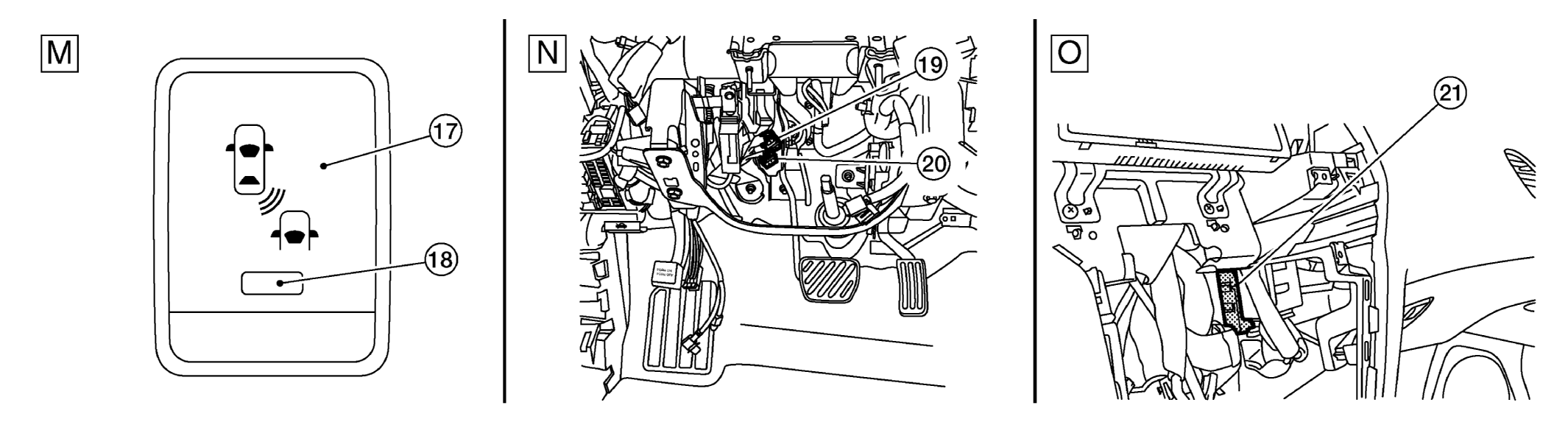

| M. | Left side of instrument panel | N. | Left side of instrument panel (view with instrument lower panel LH removed) | O. | Instrument panel right side (view with glove box assembly removed) |
| No. | Component | Description |
|---|---|---|
| 1. | Combination meter | Description: Refer to COMBINATION METER Refer to COMPONENT LOCATION for detailed installation location |
| 2. | ICC steering switch | Refer to ICC STEERING SWITCH |
| 3. | Rear sonar sensors | Refer to COMPONENT DESCRIPTION . |
| 4. | ADAS control unit |
|
| 5. | ABS actuator and electric unit (control unit) | Refer to ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) Refer to COMPONENT LOCATION (with ICC) for detailed installation location Refer to COMPONENT LOCATION (without ICC) for detailed installation location |
| 6. | ICC brake hold relay | Refer to ICC BRAKE HOLD RELAY |
| 7. | ICC sensor | Refer to ICC SENSOR |
| 8. | ECM | Refer to ECM |
| 9. | TCM | Refer to TCM Refer to COMPONENT LOCATION (RE0F10J) for detailed installation location |
| 10. | ECM | Refer to ECM Refer to COMPONENT LOCATION (VQ35DD except for Mexico) for detailed installation location |
| 11. | BCM | Refer to BCM Refer to COMPONENT LOCATION for detailed installation location |
| 12. | Warning buzzer | Refer to WARNING BUZZER |
| 13. | Sonar control unit | Refer to COMPONENT DESCRIPTION |
| 14. | Blind Spot Warning indicator LH, (RH similar) | Refer to BLIND SPOT WARNING INDICATOR LH/RH |
| 15. | Around view monitor control unit | Refer to COMPONENT LOCATION |
| 16. | Side radar LH, (RH similar) | Refer to SIDE RADAR LH/RH |
| 17. | Warning system switch | Refer to WARNING SYSTEM SWITCH |
| 18. | Warning system switch indicator | |
| 19. | Brake pedal position switch | Refer to BRAKE PEDAL POSITION SWITCH / STOP LAMP SWITCH . |
| 20. | Stop lamp switch | |
| 21. | CAN gateway | Refer to SYSTEM DESCRIPTION . |
