Exploded View

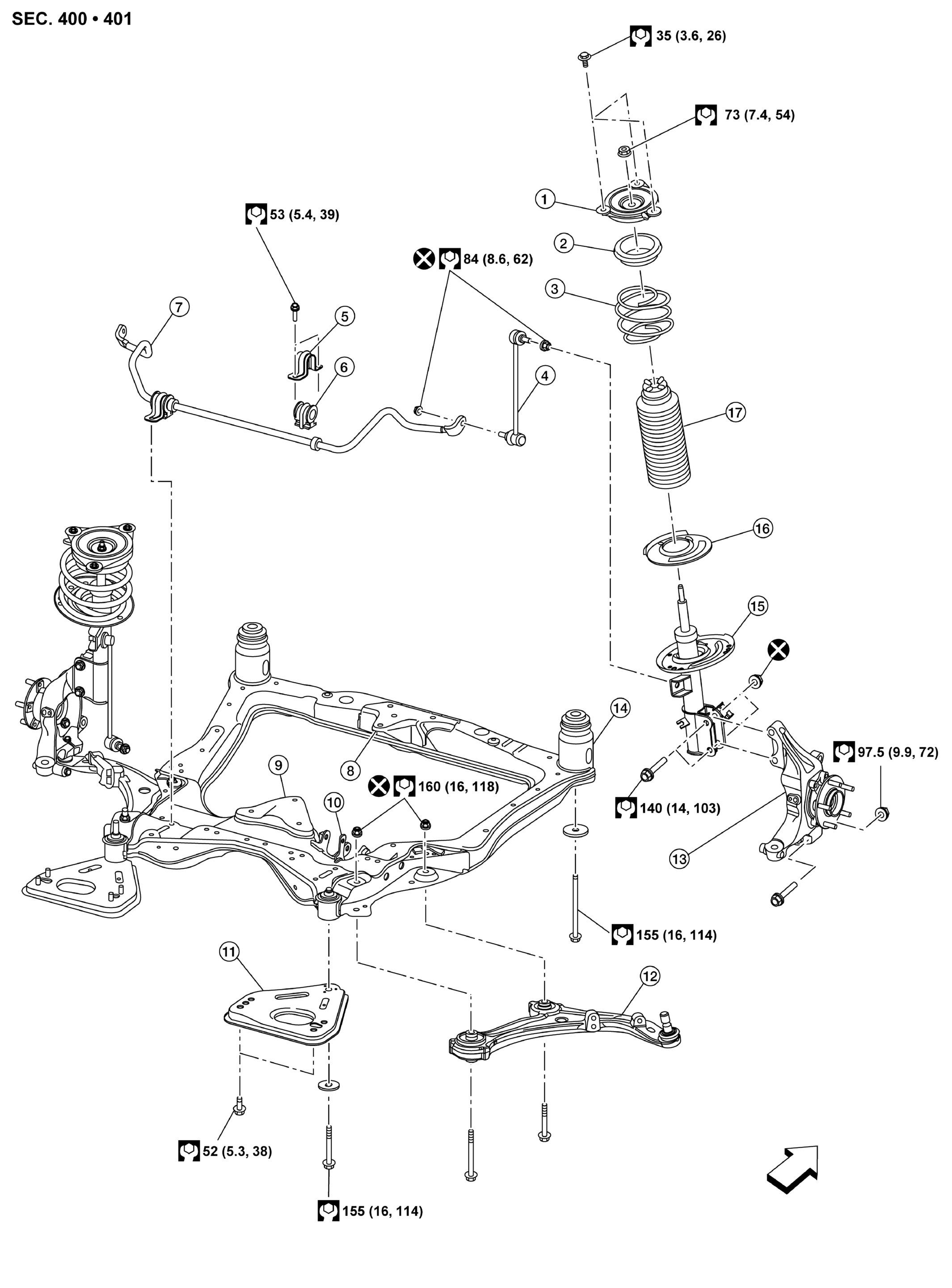

Fig 1: FRONT SUSPENSION ASSEMBLY With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Strut mount insulator	2.	Strut mount bearing	3.	Front coil spring
4.	Stabilizer connecting rod	5.	Stabilizer clamp	6.	Stabilizer bushing
7.	Stabilizer	8.	VQ35DE front mount bracket	9.	VQ35DE rear mount bracket
10.	QR25DE mount bracket	11.	Front suspension member stay	12.	Transverse link
13.	Steering knuckle	14.	Front suspension member	15.	Strut
16.	Lower rubber seat	17.	Bound bumper		Front
