Exploded View

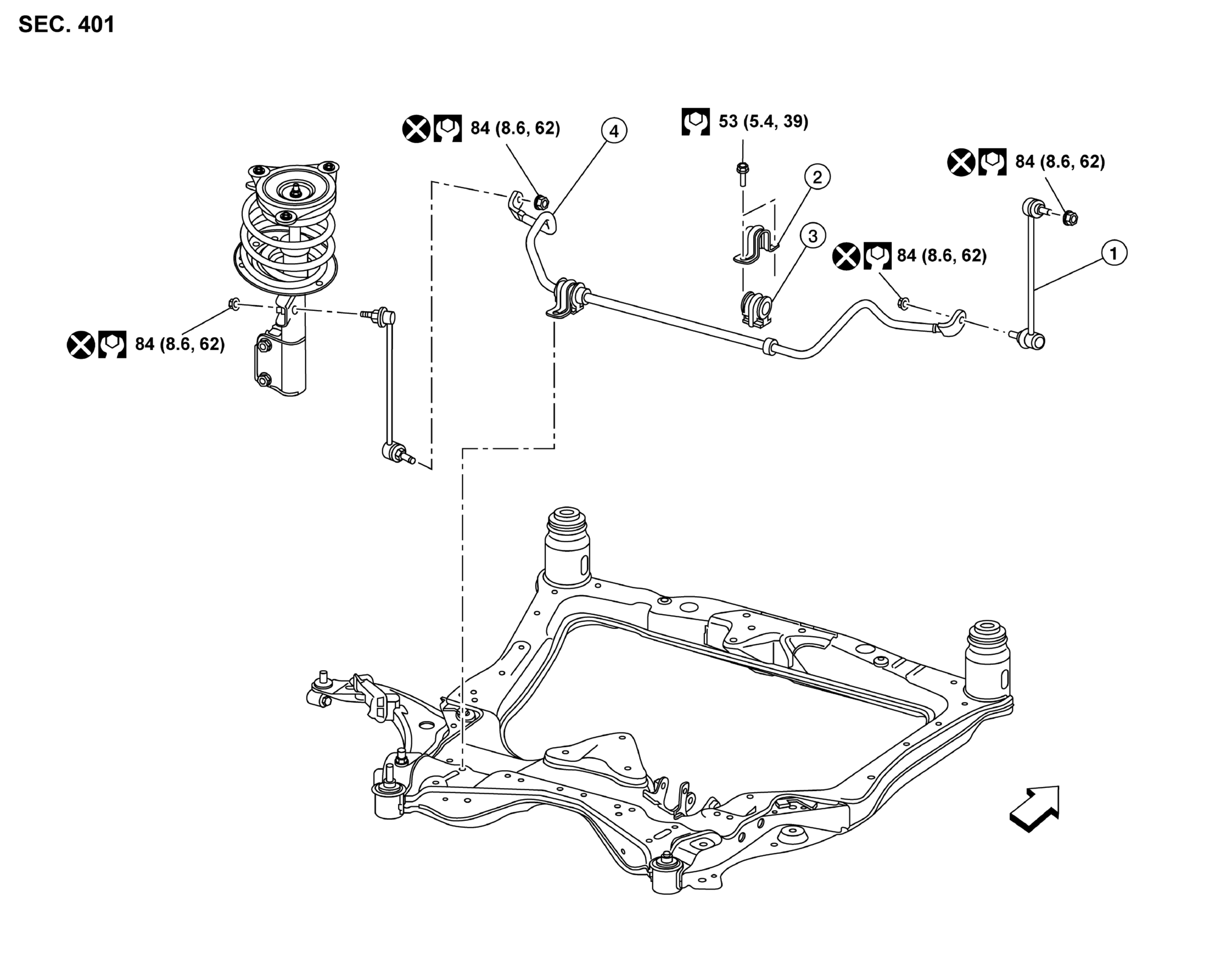

Fig 1: FRONT STABILIZER With Torque Specifications
GNSAWEIA0459ZZ-459Courtesy of NISSAN NORTH AMERICA, INC.
1. Stabilizer connecting rod 2. Stabilizer clamp 3. Stabilizer bushing
4. Stabilizer ARROW Front
