Exploded View

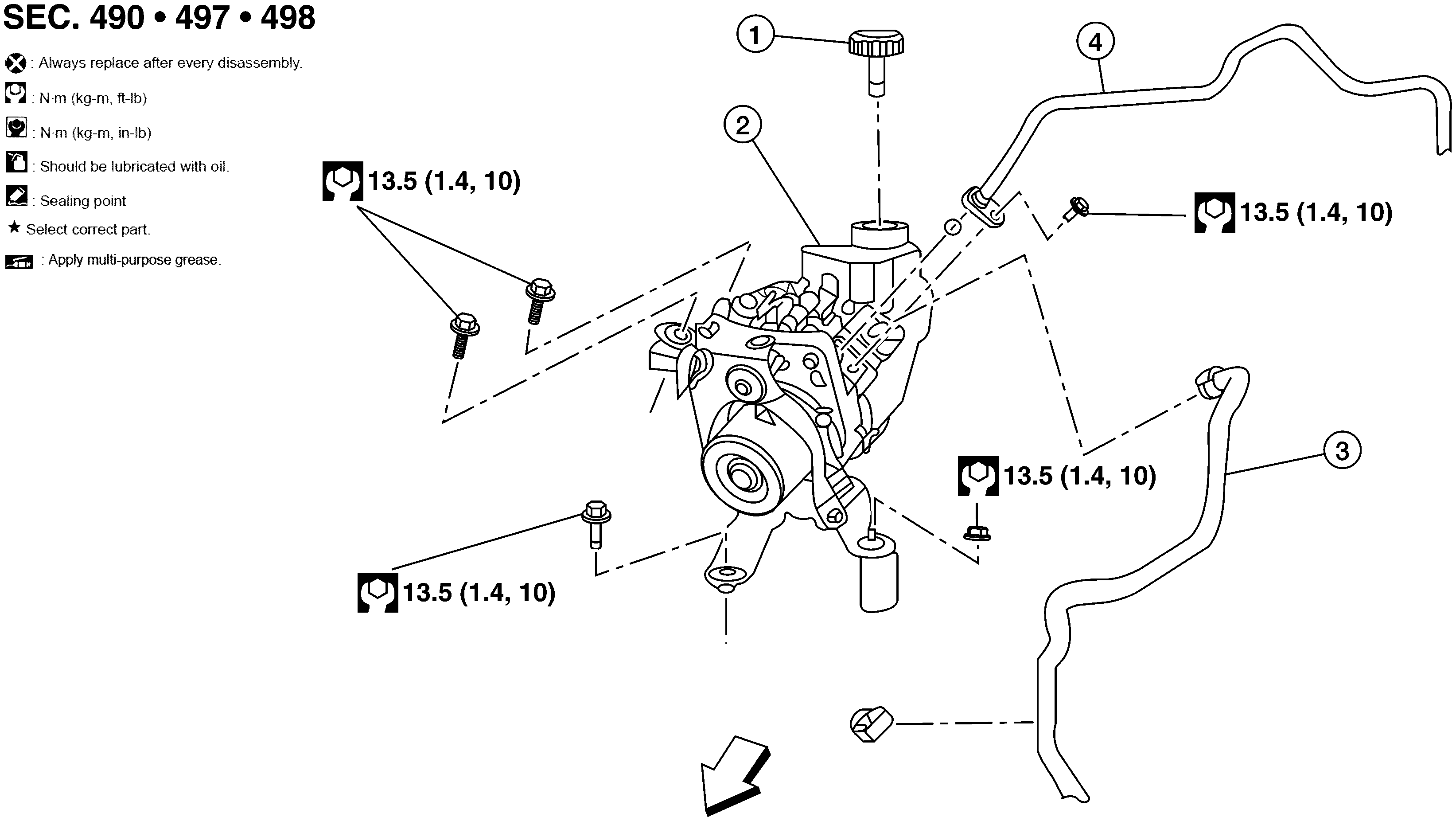

Fig 1: POWER STEERING OIL PUMP With Torque Specifications
GNSALGIA0145GB-145Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering reservoir cap 2. Power steering oil pump assembly 3. Low pressure piping
4. High pressure piping ARROW Front
