Exploded View

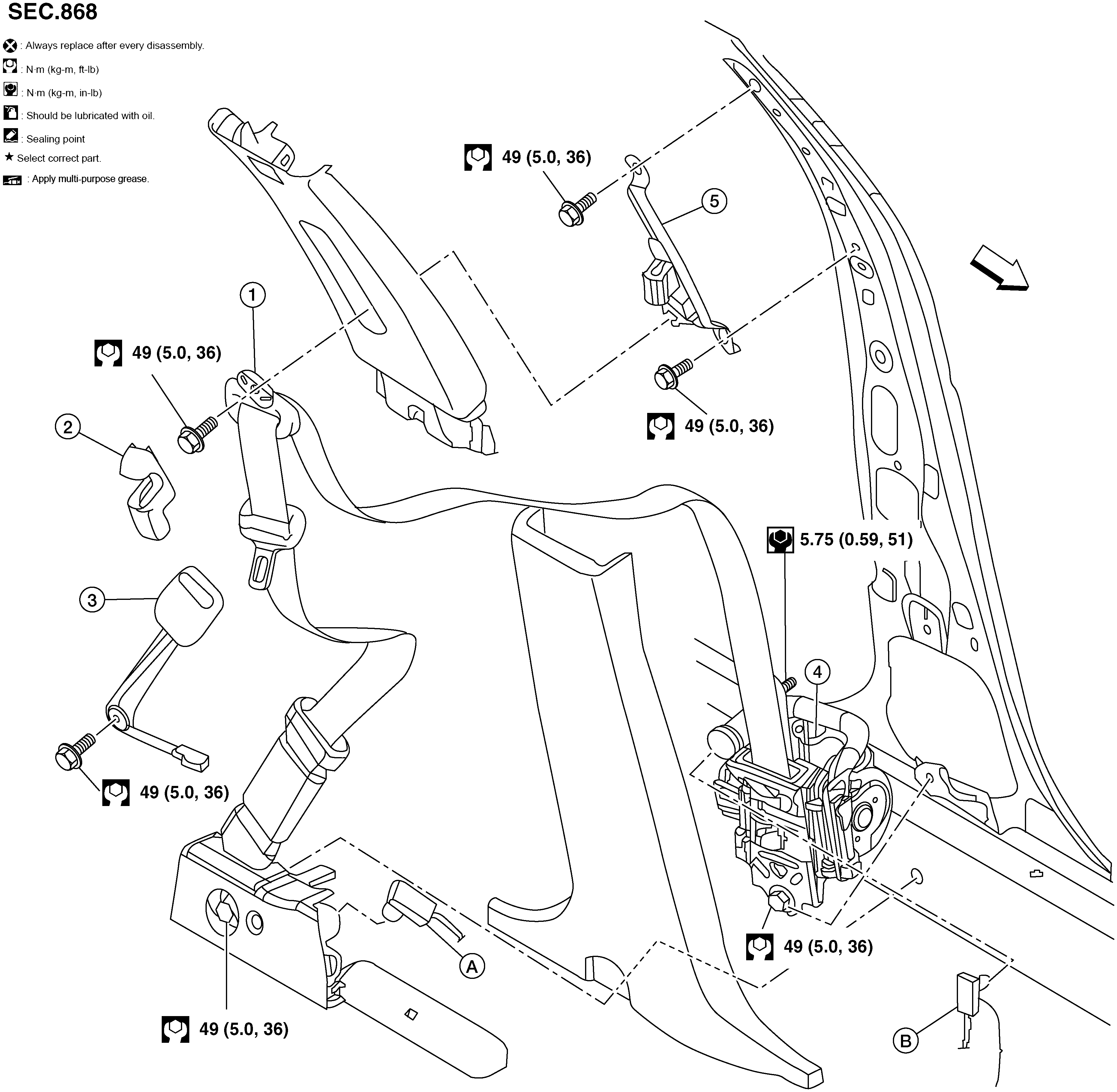

Fig 1: FRONT SEAT BELT With Torque Specifications
GNSAWHIA0704ZZ-704Courtesy of NISSAN NORTH AMERICA, INC.
1. D-ring anchor 2. Seat belt height adjuster cover 3. Seat belt buckle
4. Seat belt retractor 5. Seat belt height adjuster A. Lap belt pre-tensioner harness connector
B. Shoulder belt pre-tensioner harness connector ARROW Front
