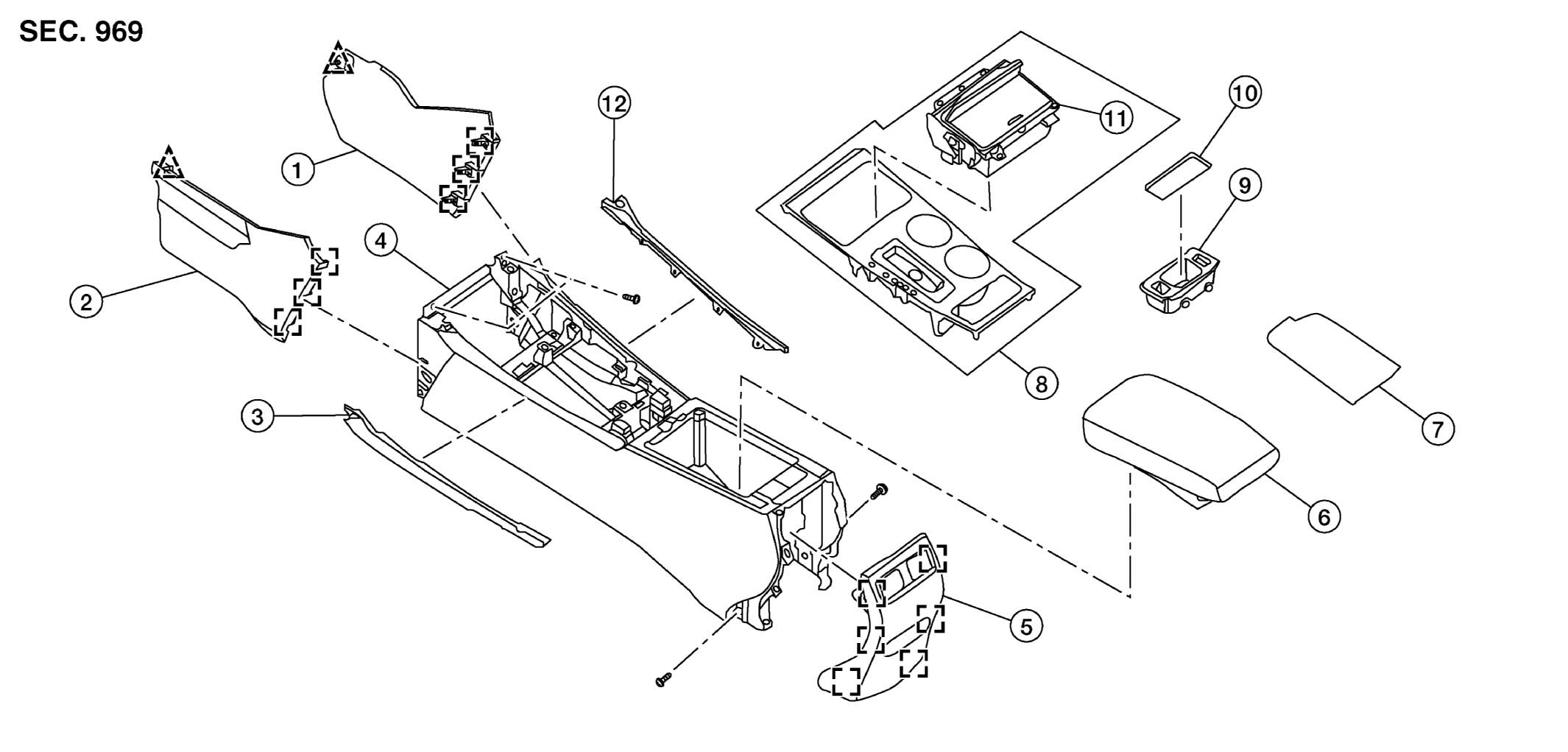

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Center console side finisher (RH)	2.	Center console side finisher (LH)	3.	Center console upper side finisher (LH)
4.	Center console assembly	5.	Center console rear finisher	6.	Center console lid
7.	Center console tray	8.	Shift selector finisher	9.	Heated seat switch finisher (if equipped)
10.	Heated seat switch finisher pad	11.	Storage bin	12.	Center console upper side finisher (RH)
	Clip		Metal clip
