Component Location

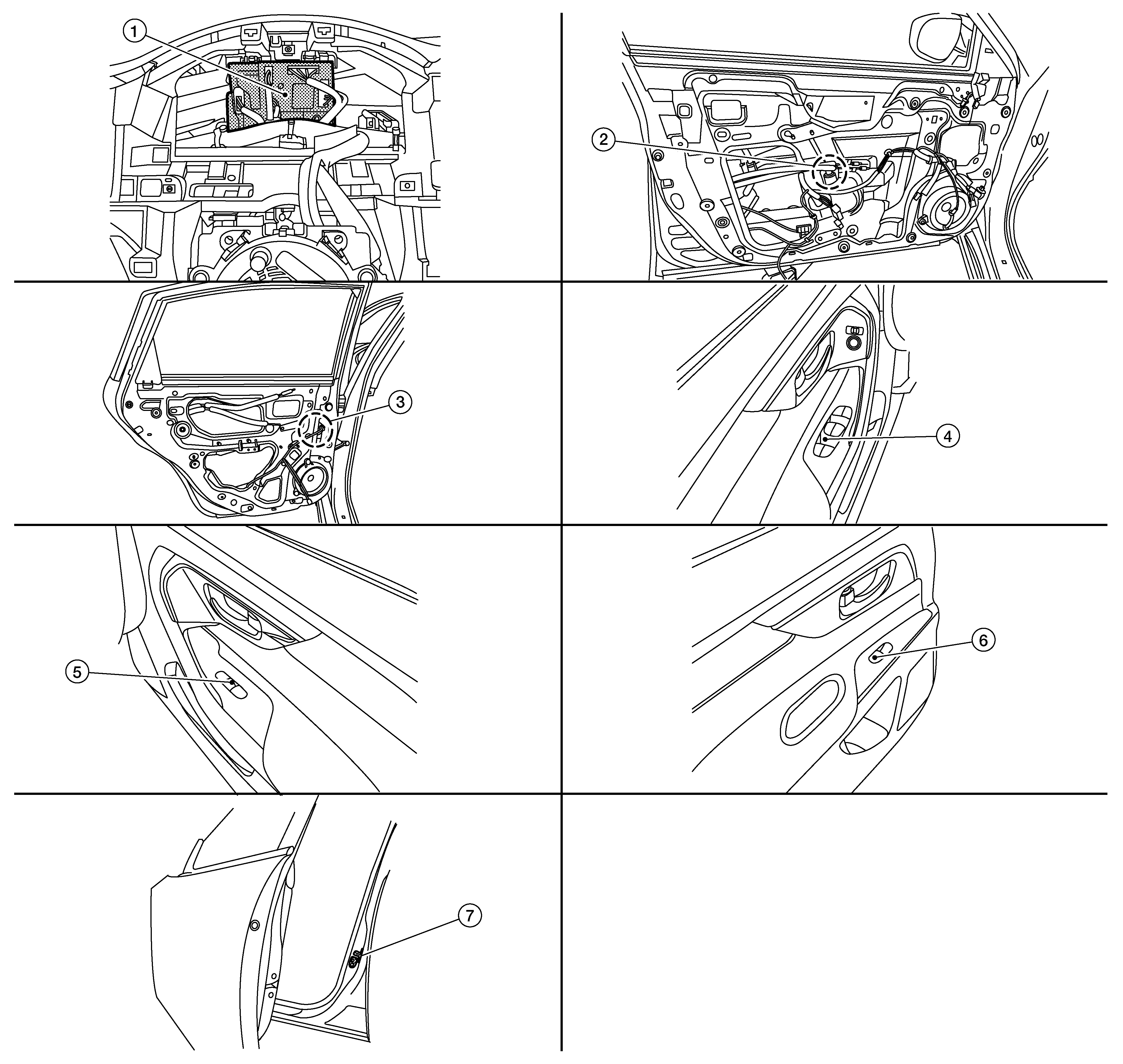

GNSAWKIA3175ZZ-175Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM (view with combination meter removed) 2. Front power window motor LH (RH similar) 3. Rear power window motor LH (RH similar)
4. Main power window and door lock/unlock switch 5. Power window and door lock/unlock switch RH 6. Rear power window switch LH (RH similar)
7. Front door switch LH (RH similar)
