Component Location

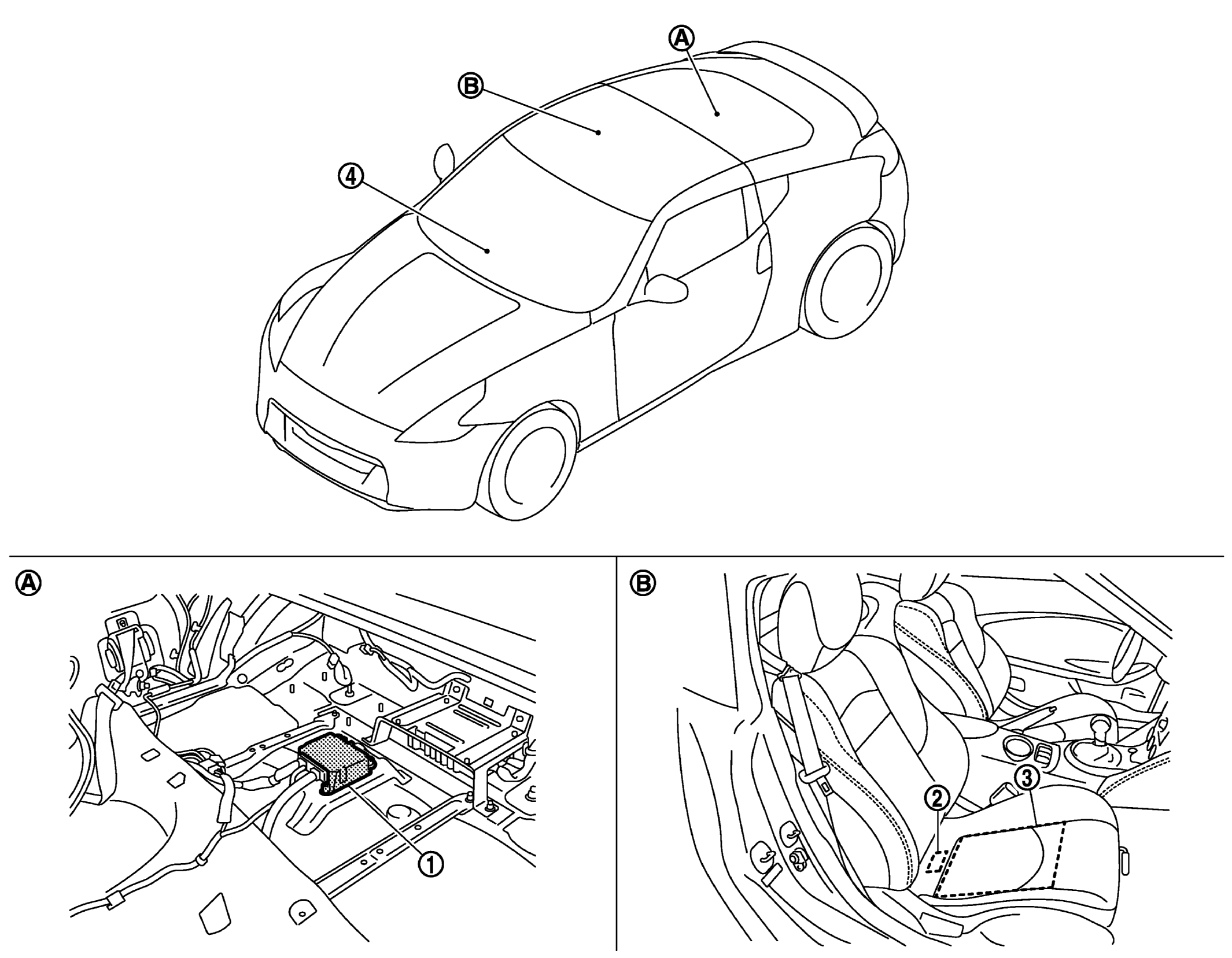

GNSJMHIA0943ZZ-943Courtesy of NISSAN NORTH AMERICA, INC.
1. Air bag diagnosis sensor unit 2. Occupant Classification System control unit 3. Occupant Classification System seat sensor mat
4. Passenger air bag OFF indicator
A. Behind seatback center finisher B. Passenger seat
