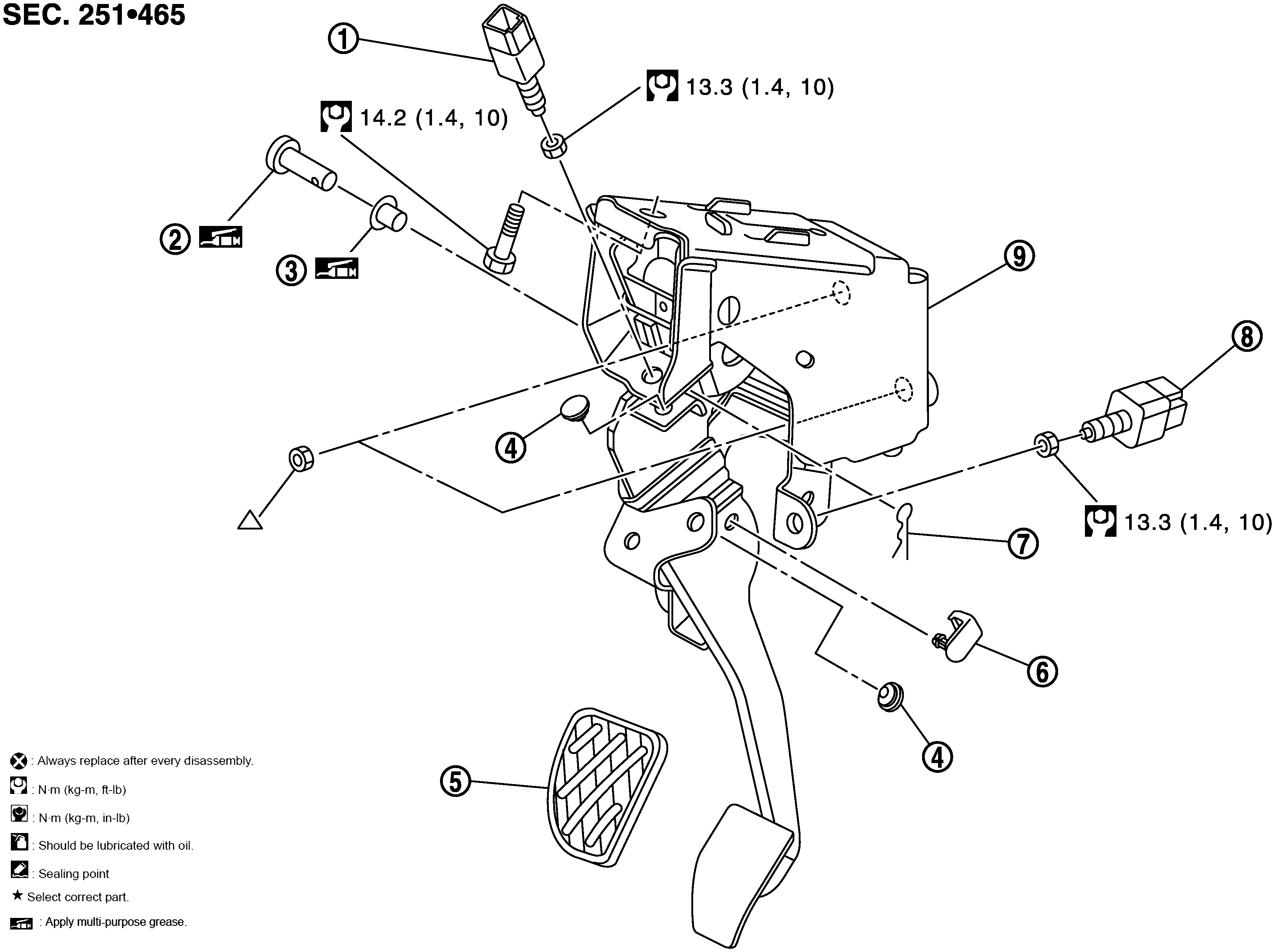

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clutch pedal position switch	2.	Clevis pin	3.	Bushing
4.	Stopper rubber	5.	Pedal pad	6.	Pedal stopper rubber
7.	Snap pin	8.	Clutch interlock switch	9.	Clutch pedal
: Apply lithium-based grease including molybdenum disulphide.
: Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS  for the tightening torque.
Refer to COMPONENTS for symbols not described on the above.
