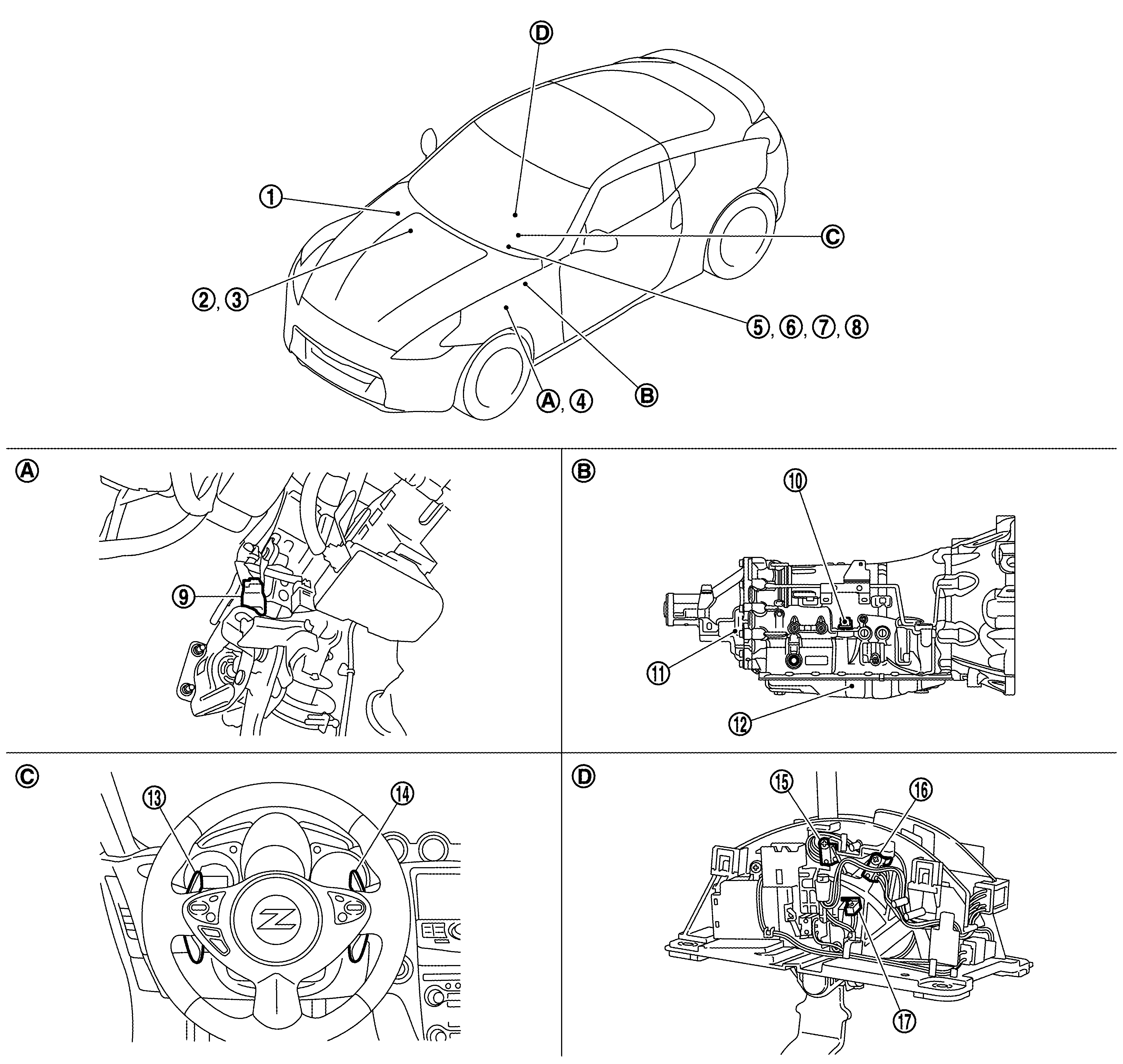

Component Location
| 1. | IPDM E/R Refer to COMPONENT LOCATION . |
2. | ECM Refer to COMPONENT LOCATION . |
3. | BCM Refer to COMPONENT LOCATION . |
| 4. | Accelerator pedal position sensor Refer to COMPONENT LOCATION . |
5. | Combination meter | 6. | A/T CHECK indicator lamp (On the combination meter) |
| 7. | Shift position indicator (On the combination meter) |
8. | Manual mode indicator (On the combination meter) |
9. | Stop lamp switch |
| 10. | Joint connector | 11. | Output speed sensor | 12. | Control valve & TCM* |
| 13. | Paddle shifter (shift-down) | 14. | Paddle shifter (shift-up) | 15. | Manual mode position select switch (shift-up) |
| 16. | Manual mode position select switch (shift-down) | 17. | Manual mode select switch | ||
| A. | Brake pedal | B. | A/T assembly | C. | Steering wheel |
| D. | A/T shift selector assembly | ||||
| *: Control valve & TCM is included in A/T assembly. | |||||
NOTE:
The following components are included in control valve & TCM.
- TCM
- Input speed sensor 1, 2
- A/T fluid temperature sensor
- Transmission range switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve
