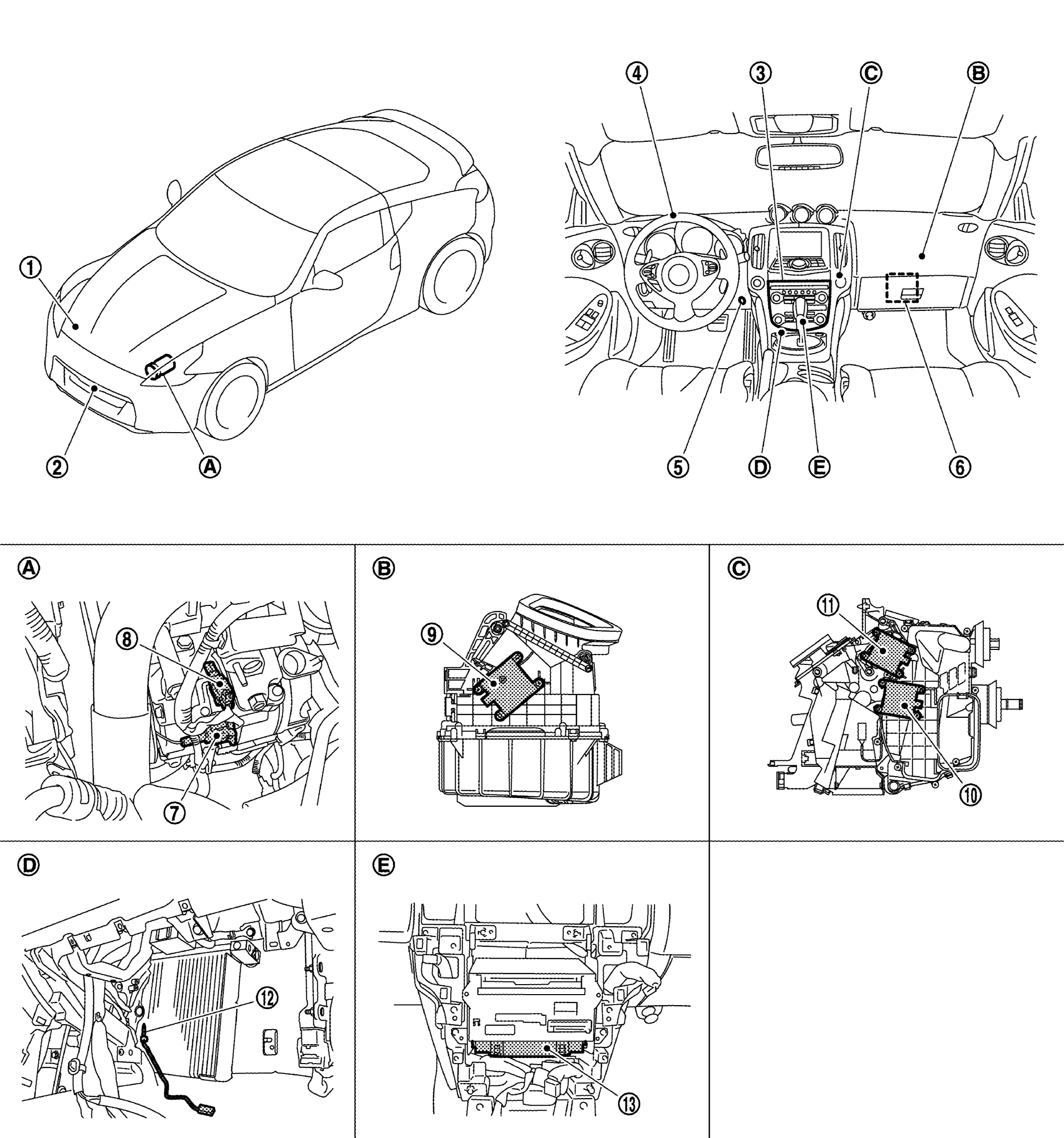

Component Location
| 1. | Refrigerant pressure sensor | 2. | Ambient sensor | 3. | Preset switch |
| 4. | Sunload sensor | 5. | In - vehicle sensor | 6. | Blower motor |
| 7. | Magnet clutch | 8. | ECV | 9. | Intake door motor |
| 10. | Air mix door motor | 11. | Mode door motor | 12. | Intake sensor |
| 13. | A/C auto amp. | ||||
| A. | Installed on the compressor | B. | Installed to the blower unit assembly (RH) | C. | Installed to the heater & cooling unit assembly (RH) |
| D. | Located on the evaporator | E. | Behind of the cluster lid C |
